Test Date: 2015-11-23 11:06
Analysis date: 2015-11-23 17:26
X-ray Calibration - Spectrum
Slope avrg Slope 45.261
Chips_Xray

Overview

Slope of Spectrum Vcal Calibration
Plot
avrgSlope avrg Slope 45.261
medianSlope median Slope 45.7955
minSlope min Slope 41.159
maxSlope max Slope 47.901
Offset of Spectrum Vcal Calibration
Plot
avrgOffset avrg Offset -69.327
medianOffset median Offset -73.435
minOffset min Offset -187.076
maxOffset max Offset 68.871
Chi2 of Spectrum Vcal Calibration
Plot
avrgchi2 avrg chi2 2.6925
medianchi2 median chi2 0.8785
minchi2 min chi2 0.015
maxchi2 max chi2 18.623
_
Vcal Calibration Module - Spectrum
ROC Slope Slope Error Offset Offset Error
0 46.2 e- / Vcal 0.2 e- / Vcal -59.9 e- 19.9 e-
1 45.9 e- / Vcal 0.1 e- / Vcal -30.3 e- 9.6 e-
2 45.7 e- / Vcal 0.2 e- / Vcal -18.5 e- 21.4 e-
3 47.9 e- / Vcal 0.2 e- / Vcal 68.9 e- 17.8 e-
4 46.5 e- / Vcal 0.1 e- / Vcal -130.5 e- 18.3 e-
5 45.3 e- / Vcal 0.1 e- / Vcal -175.5 e- 17.9 e-
6 46.6 e- / Vcal 0.1 e- / Vcal 35.6 e- 8.9 e-
7 43.8 e- / Vcal 0.1 e- / Vcal -93.9 e- 7.9 e-
8 43.7 e- / Vcal 0.1 e- / Vcal -142.8 e- 19.5 e-
9 41.2 e- / Vcal 0.1 e- / Vcal -187.1 e- 20.7 e-
10 44.0 e- / Vcal 0.1 e- / Vcal -112.3 e- 19.6 e-
11 46.4 e- / Vcal 0.2 e- / Vcal -49.6 e- 19.8 e-
12 42.5 e- / Vcal 0.1 e- / Vcal -86.9 e- 19.3 e-
13 47.4 e- / Vcal 0.1 e- / Vcal -17.9 e- 11.1 e-
14 43.6 e- / Vcal 0.1 e- / Vcal 49.1 e- 18.4 e-
15 47.5 e- / Vcal 0.2 e- / Vcal -157.6 e- 20.8 e-
Average 45.3 e- / Vcal -69.3 e-
Median 45.9 e- / Vcal -59.9 e-

Overview

Xray Module Spectrum - Zn

Overview

Xray Module Spectrum - Mo

Overview

Xray Module Spectrum - Ag

Overview

Xray Module Spectrum - Sn

Overview

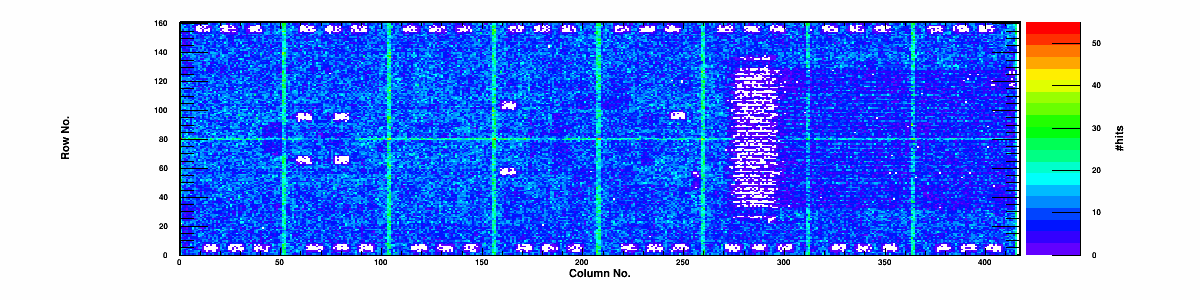

Hit Map Zn
Hits distribution Zn inner/edge/corner

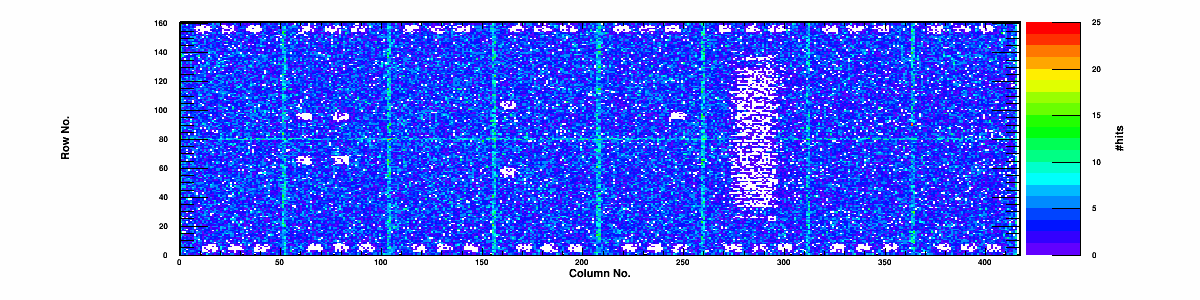

Hit Map Mo
Hits distribution Mo inner/edge/corner

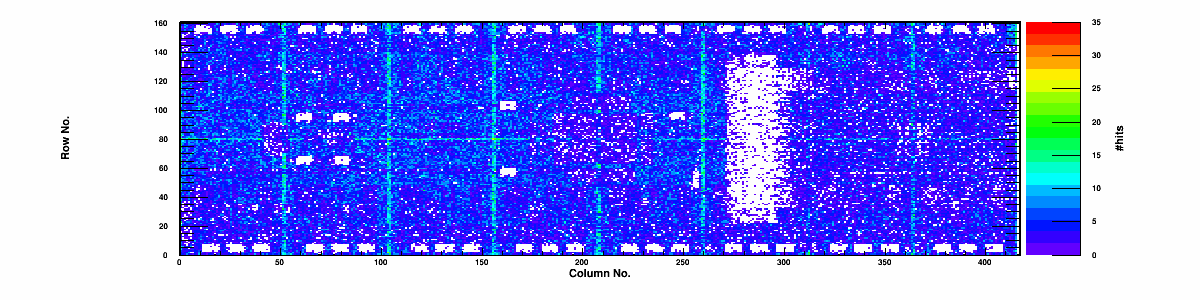

Hit Map Ag
Hits distribution Ag inner/edge/corner

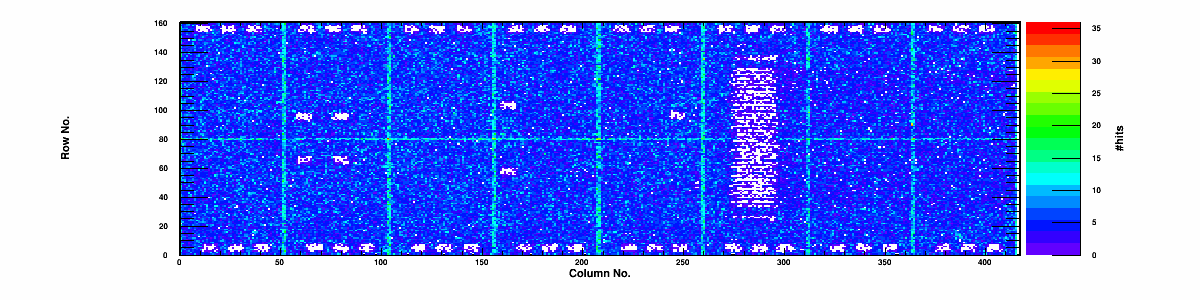

Hit Map Sn
Hits distribution Sn inner/edge/corner
