Test Date: 2015-09-15 18:47
Analysis date: 2015-12-09 18:03
Analysis date: 2015-12-09 18:03
M4080 XRayHRQualification
Summary

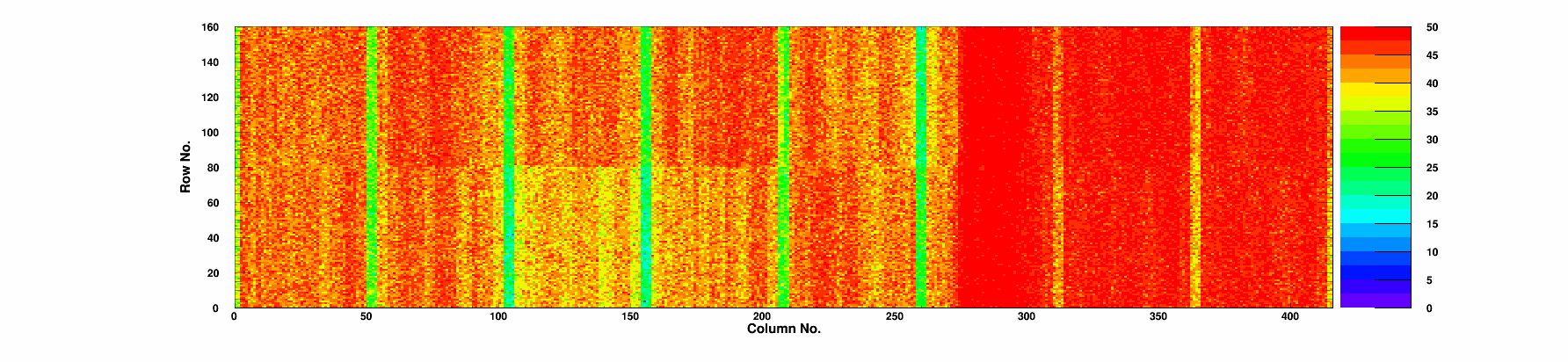

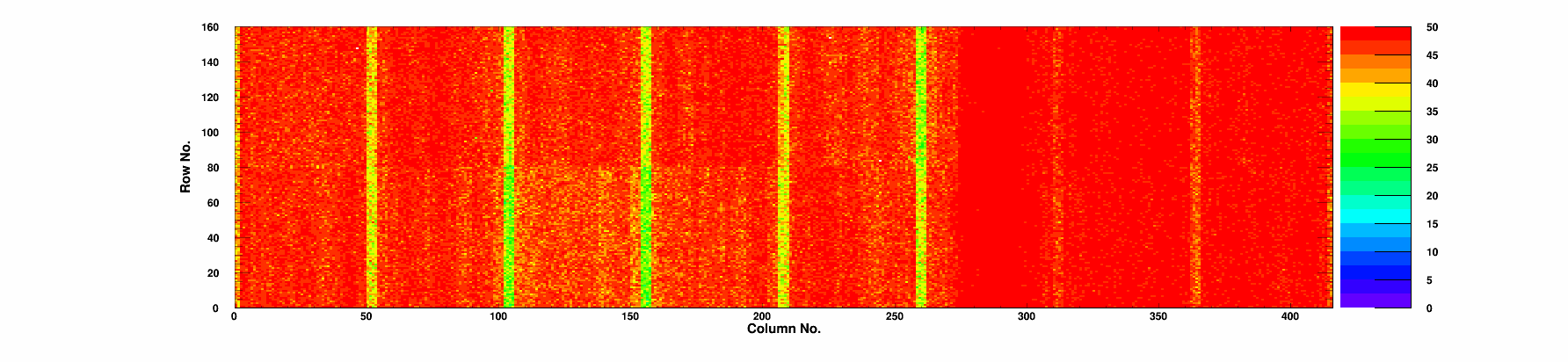

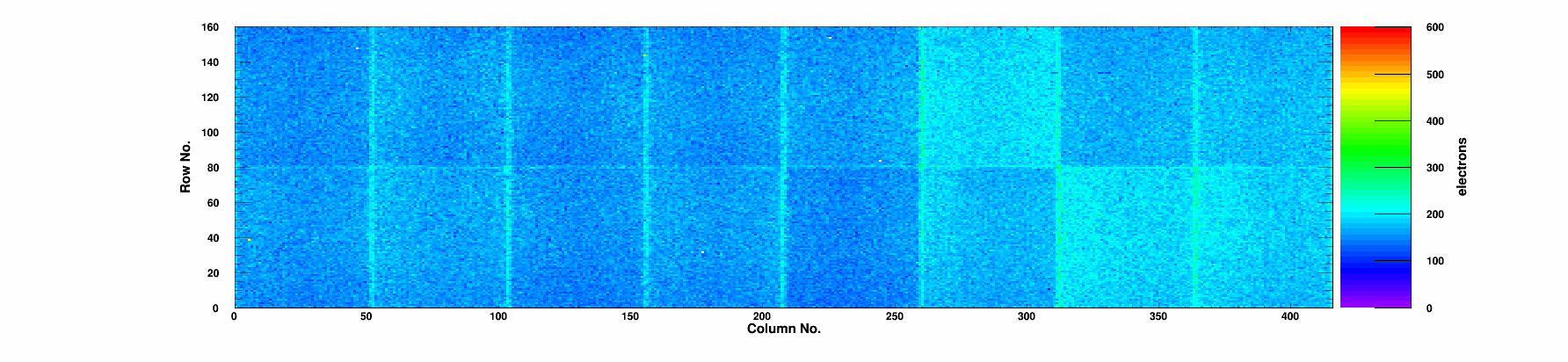

| Module | Module | M4080 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 20 | |
| BumpBondingDefects | Bump Bonding Defects | 15 | |
| NoisyPixels | Noisy Pixels | 5 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.82/99.10 | % |
| Noise | Mean Noise | 167 | e- |
Summary ROCs

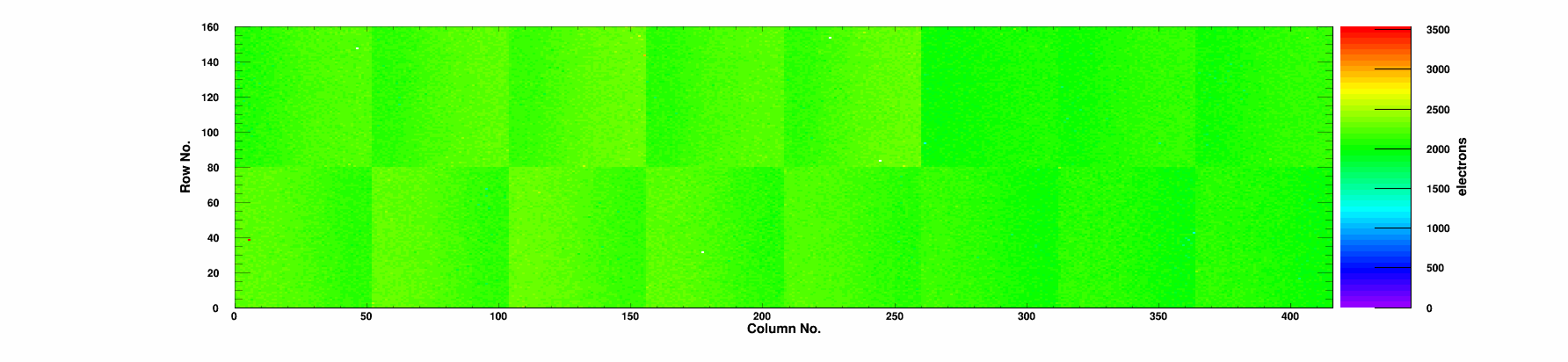

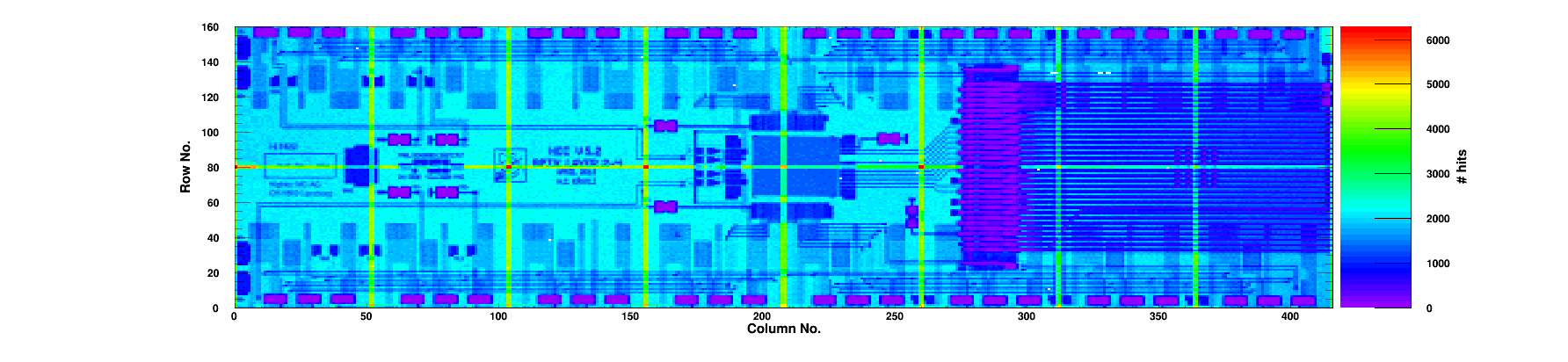

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.85 | 98.91 | 0.77 | 116.8 | 0 | 30.3 | 0/0 | 0 | 2082 | 175 | 0 |
|
Chip 1
|
A
|
4 | 0 | 99.86 | 99.25 | 0.78 | 121.0 | 4 | 31.5 | 0/0 | 0 | 2080 | 170 | 0 |
|
Chip 2
|
A
|
3 | 0 | 99.83 | 98.77 | 2.93 | 114.7 | 3 | 29.7 | 0/0 | 0 | 2033 | 193 | 0 |
|
Chip 3
|
A
|
2 | 0 | 99.86 | 99.01 | 0.48 | 171.5 | 0 | 44.8 | 0/0 | 0 | 2134 | 163 | 2 |
|
Chip 4
|
A
|
1 | 0 | 99.86 | 99.25 | 0.50 | 173.3 | 1 | 45.3 | 0/0 | 0 | 2177 | 156 | 0 |
|
Chip 5
|
A
|
2 | 0 | 99.89 | 99.28 | 0.56 | 189.8 | 1 | 49.9 | 0/0 | 0 | 2224 | 155 | 1 |
|
Chip 6
|
A
|
0 | 0 | 99.40 | 99.35 | 304.74 | 180.2 | 0 | 47.2 | 0/0 | 0 | 2191 | 162 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.88 | 99.20 | 0.65 | 174.1 | 0 | 45.9 | 0/0 | 0 | 2127 | 153 | 1 |
|
Chip 8
|
A
|
1 | 0 | 99.87 | 99.28 | 0.27 | 181.2 | 0 | 47.6 | 0/0 | 0 | 2186 | 158 | 1 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.15 | 1.09 | 182.4 | 0 | 48.1 | 0/0 | 0 | 2200 | 166 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.85 | 99.02 | 0.93 | 194.5 | 1 | 51.2 | 0/0 | 0 | 2220 | 154 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.84 | 98.99 | 0.80 | 177.8 | 0 | 46.6 | 0/0 | 0 | 2178 | 160 | 0 |
|
Chip 12
|
A
|
2 | 0 | 99.85 | 99.01 | 0.82 | 168.2 | 2 | 44.1 | 0/0 | 0 | 2165 | 151 | 0 |
|
Chip 13
|
A
|
2 | 0 | 99.84 | 98.99 | 4.80 | 118.5 | 2 | 30.8 | 0/0 | 0 | 2080 | 175 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.83 | 99.19 | 1.00 | 129.9 | 1 | 33.8 | 0/0 | 0 | 2059 | 193 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.82 | 98.98 | 0.72 | 121.9 | 0 | 31.7 | 0/0 | 0 | 2056 | 187 | 0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 36 | |
| nWarnings | # Warnings | 7 | |
| channel_0_count | Channel 0 | 11 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 2 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_readback_count | Readback start marker | 7 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
MoReWeb-v0.6.7-111-gcc5e703 on branch 20151208_Readback
