Test Date: 2016-08-18 11:13
Analysis date: 2016-08-18 13:28
Analysis date: 2016-08-18 13:28
M4149 XRayHRQualification
Summary
| Module | Module | M4149 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 172 | |

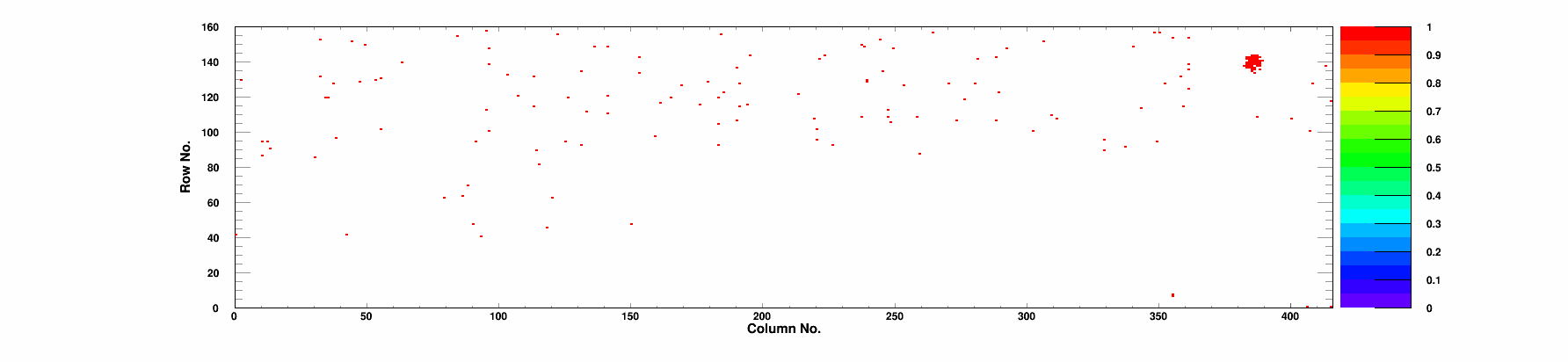

| BumpBondingDefects | Bump Bonding Defects | 162 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 1 | |

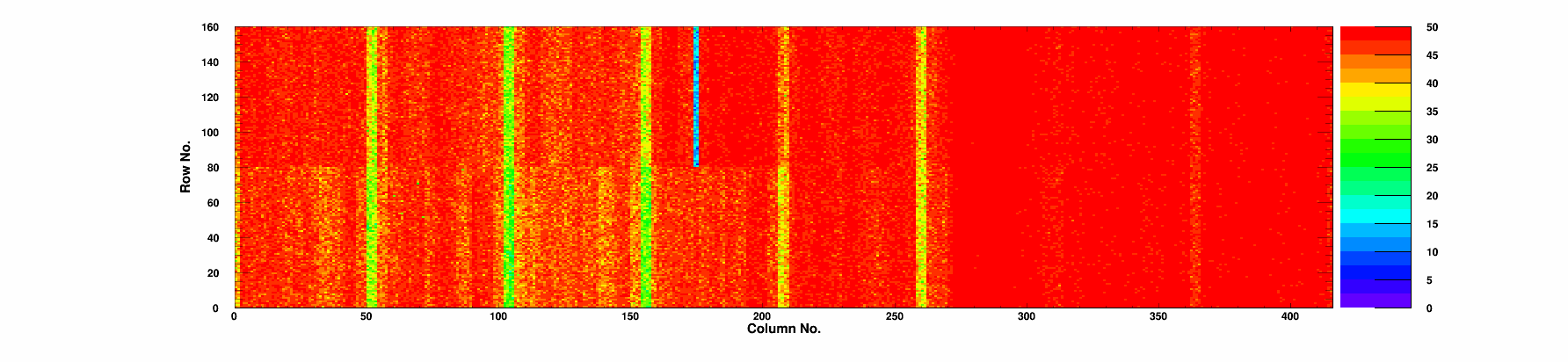

| Efficiency | Efficiency 50/120 | 99.89/98.99 | % |

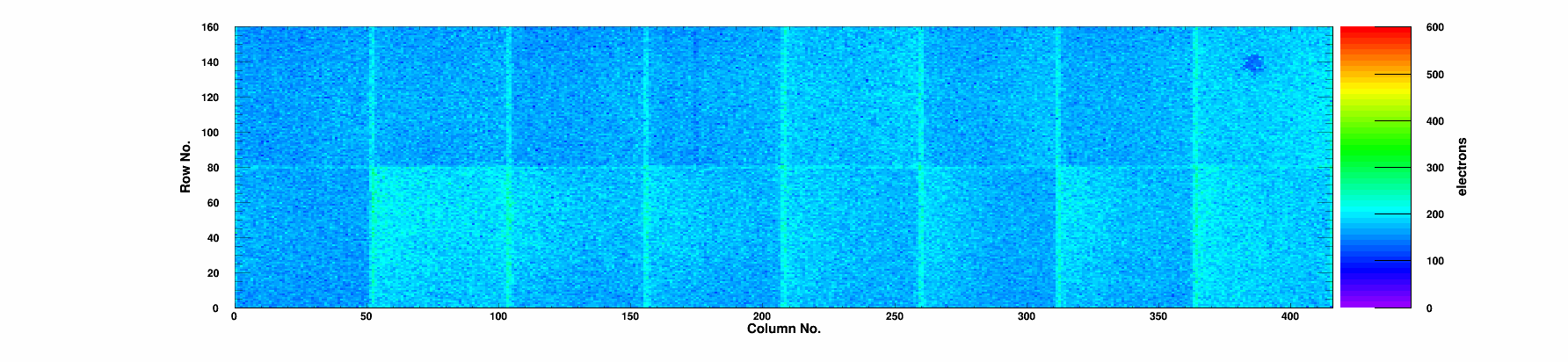

| Noise | Mean Noise | 175 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
36 | 0 | 99.86 | 99.10 | 0.64 | 20.3 | 69.4 | 36 | 0/0 | 0 | 1932 | 186 | 0 |
|
Chip 1
|
A
|
16 | 0 | 99.83 | 99.01 | 0.61 | 21.8 | 75.0 | 16 | 0/0 | 0 | 1952 | 170 | 0 |
|
Chip 2
|
A
|
14 | 0 | 99.83 | 98.91 | 0.53 | 19.0 | 65.9 | 14 | 0/0 | 0 | 1930 | 171 | 0 |
|
Chip 3
|
A
|
21 | 0 | 99.86 | 99.21 | 0.6 | 34.0 | 112.8 | 21 | 0/0 | 0 | 2035 | 181 | 0 |
|
Chip 4
|
C
|
27 | 0 | 100.69 | 97.59 | 555.52 | 33.9 | 112.8 | 17 | 0/0 | 1 | 2023 | 167 | 0 |
|
Chip 5
|
A
|
17 | 0 | 99.83 | 98.96 | 0.9 | 41.1 | 134.1 | 17 | 0/0 | 0 | 2052 | 164 | 0 |
|
Chip 6
|
A
|
12 | 0 | 99.83 | 98.95 | 0.82 | 38.8 | 128.4 | 12 | 0/0 | 0 | 2089 | 167 | 0 |
|
Chip 7
|
A
|
15 | 0 | 99.86 | 99.27 | 0.51 | 38.2 | 127.7 | 15 | 0/0 | 0 | 2065 | 162 | 0 |
|
Chip 8
|
A
|
2 | 0 | 99.83 | 99.08 | 0.84 | 42.4 | 140.6 | 2 | 0/0 | 0 | 2085 | 163 | 0 |
|
Chip 9
|
A
|
5 | 0 | 99.86 | 99.24 | 0.55 | 45.0 | 147.6 | 5 | 0/0 | 0 | 2079 | 193 | 0 |
|
Chip 10
|
A
|
3 | 0 | 99.83 | 98.93 | 0.64 | 46.6 | 151.4 | 3 | 0/0 | 0 | 2092 | 178 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.82 | 98.97 | 0.99 | 39.5 | 130.7 | 0 | 0/0 | 0 | 2083 | 176 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.85 | 99.27 | 0.65 | 37.0 | 122.2 | 0 | 0/0 | 0 | 2056 | 179 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.81 | 98.91 | 0.85 | 22.1 | 75.3 | 0 | 0/0 | 0 | 1958 | 172 | 0 |
|
Chip 14
|
A
|
2 | 0 | 99.86 | 99.19 | 0.41 | 24.6 | 83.8 | 2 | 0/0 | 0 | 2000 | 179 | 0 |
|
Chip 15
|
A
|
2 | 0 | 99.85 | 99.28 | 0.38 | 23.6 | 79.7 | 2 | 0/0 | 0 | 1950 | 188 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-18 | |
| TestTime | Test Time | 11:13 | |
| TestDuration | Duration | 1:20:7 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 2038 | |
| nWarnings | # Warnings | 1476 | |
| channel_0_count | Channel 0 | 1476 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 164 | |
| message_readback_count | Readback start marker | 1312 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
