Test Date: 2016-08-18 11:13
Analysis date: 2016-08-18 13:32
Analysis date: 2016-08-18 13:32
M4301 XRayHRQualification
Summary
| Module | Module | M4301 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 31 | |
| BumpBondingDefects | Bump Bonding Defects | 28 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.84/99.16 | % |
| Noise | Mean Noise | 171 | e- |

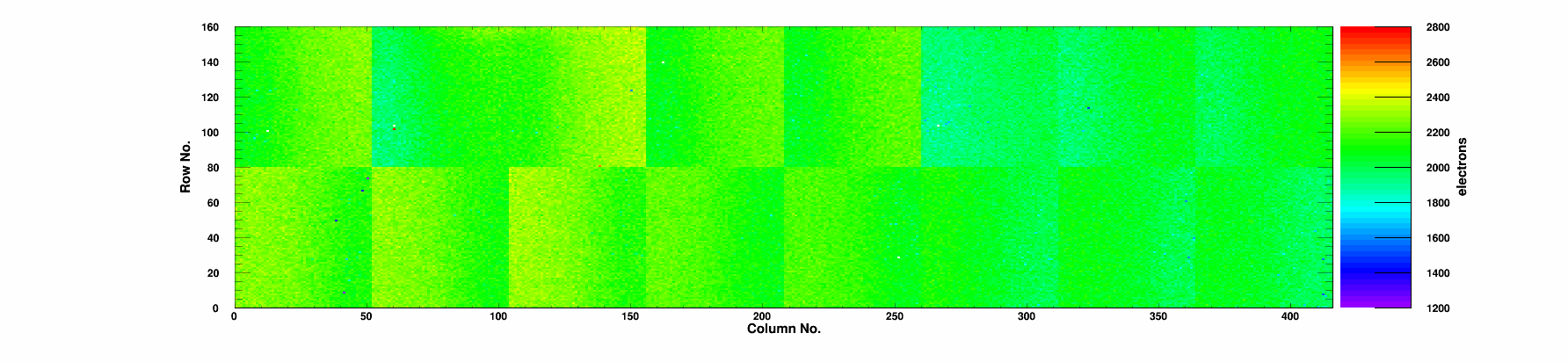

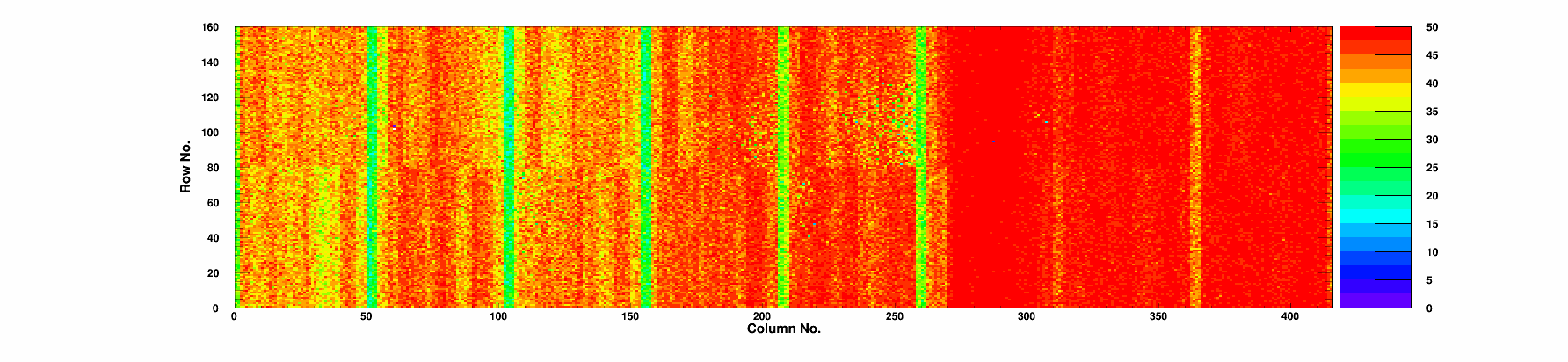

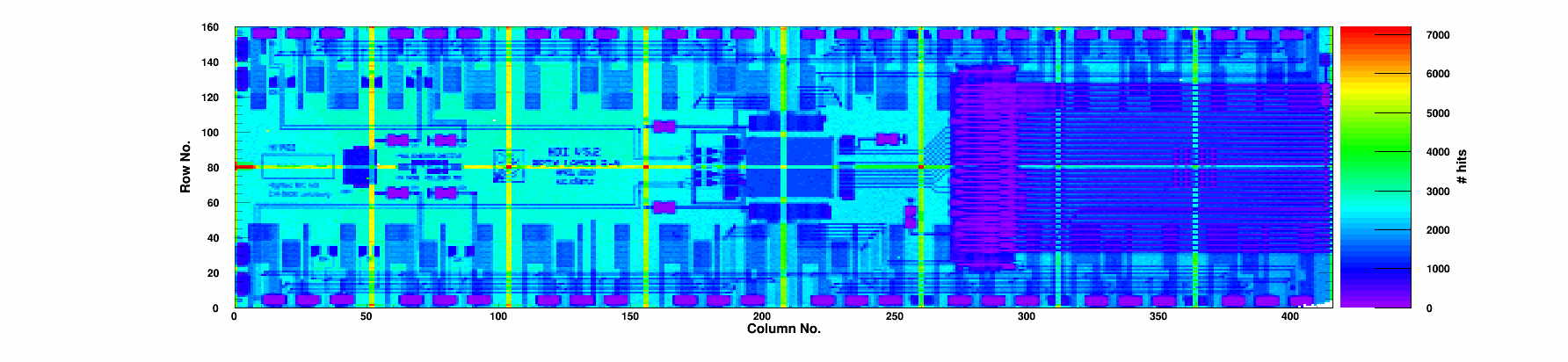

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.83 | 99.09 | 0.69 | 30.4 | 101.7 | 0 | 0/0 | 0 | 2040 | 169 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.85 | 99.28 | 0.53 | 33.0 | 110.9 | 1 | 0/0 | 0 | 2021 | 175 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.84 | 99.18 | 1.22 | 29.1 | 99.4 | 0 | 0/0 | 0 | 1969 | 169 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.85 | 99.15 | 0.75 | 49.6 | 161.2 | 1 | 0/0 | 0 | 2151 | 171 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.24 | 0.74 | 51.2 | 168.1 | 0 | 0/0 | 0 | 2161 | 174 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.85 | 99.30 | 0.72 | 60.9 | 196.3 | 0 | 0/0 | 0 | 2241 | 178 | 0 |
|
Chip 6
|
A
|
4 | 0 | 99.83 | 99.21 | 0.74 | 57.2 | 187.3 | 2 | 0/0 | 0 | 2069 | 191 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.85 | 99.27 | 0.75 | 56.6 | 187.5 | 0 | 0/0 | 0 | 2188 | 166 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.85 | 98.97 | 0.84 | 55.3 | 183.1 | 0 | 0/0 | 0 | 2213 | 175 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.84 | 99.31 | 0.83 | 55.7 | 181.3 | 0 | 0/0 | 0 | 2206 | 173 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.85 | 99.24 | 1.11 | 58.4 | 187.9 | 0 | 0/0 | 0 | 2231 | 167 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.85 | 99.14 | 0.93 | 48.1 | 158.3 | 0 | 0/0 | 0 | 2162 | 158 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.86 | 99.26 | 0.91 | 46.3 | 151.4 | 0 | 0/0 | 0 | 2145 | 156 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.04 | 0.94 | 29.6 | 100.2 | 0 | 0/0 | 0 | 2056 | 172 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.82 | 98.95 | 0.77 | 30.9 | 104.4 | 0 | 0/0 | 0 | 2045 | 169 | 0 |
|
Chip 15
|
A
|
24 | 0 | 99.83 | 98.99 | 0.76 | 28.7 | 96.4 | 24 | 0/0 | 0 | 2026 | 170 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-18 | |
| TestTime | Test Time | 11:13 | |
| TestDuration | Duration | 1:20:7 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
