Test Date: 2016-08-18 13:47
Analysis date: 2016-08-18 15:22
Analysis date: 2016-08-18 15:22
M4339 XRayHRQualification
Summary
| Module | Module | M4339 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 166 | |

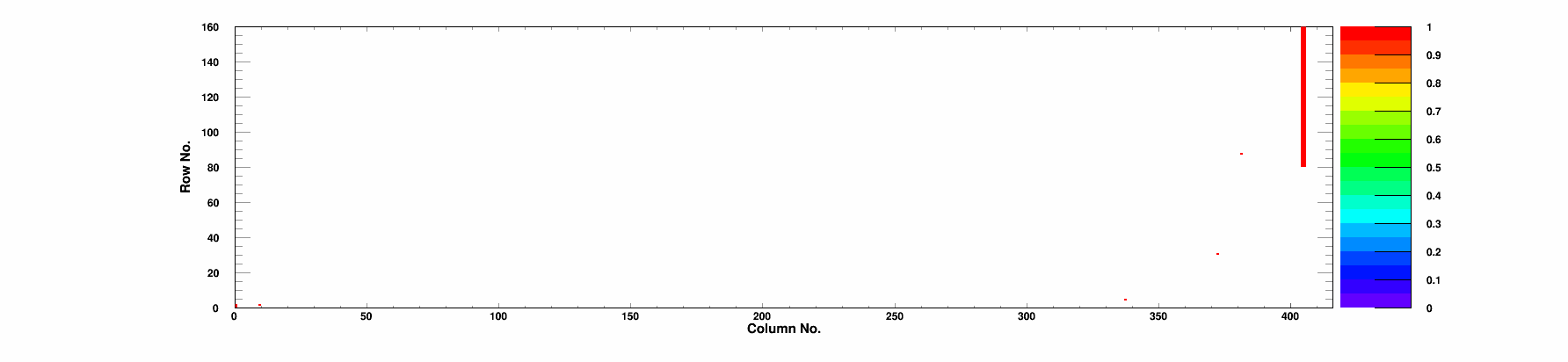

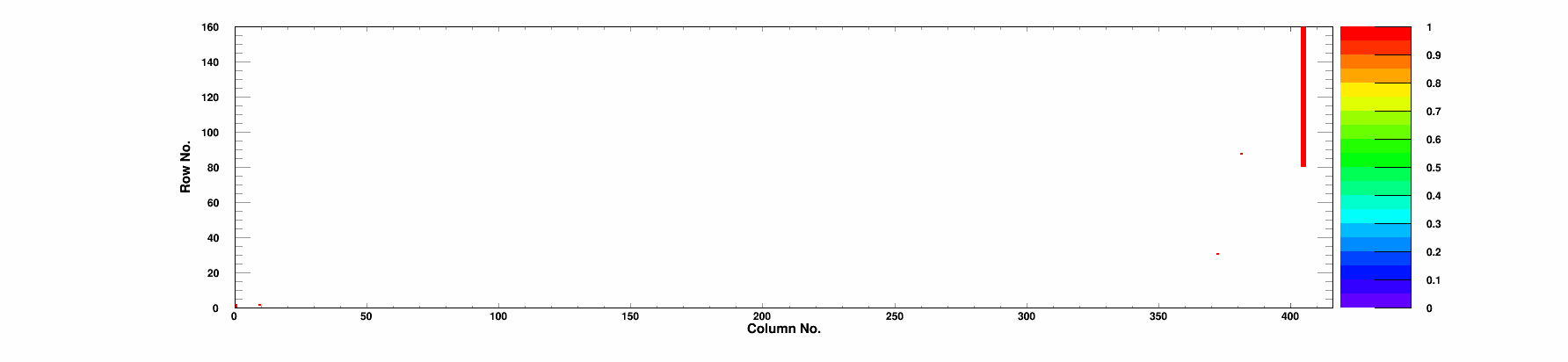

| BumpBondingDefects | Bump Bonding Defects | 165 | |
| NoisyPixels | Noisy Pixels | 66 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 1 | |

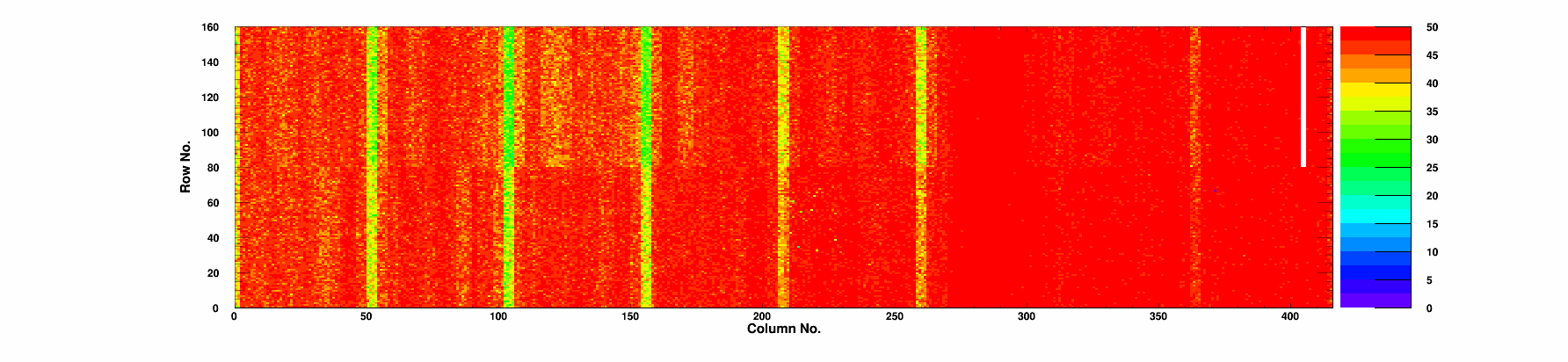

| Efficiency | Efficiency 50/120 | 99.83/99.06 | % |
| Noise | Mean Noise | 185 | e- |
Summary ROCs

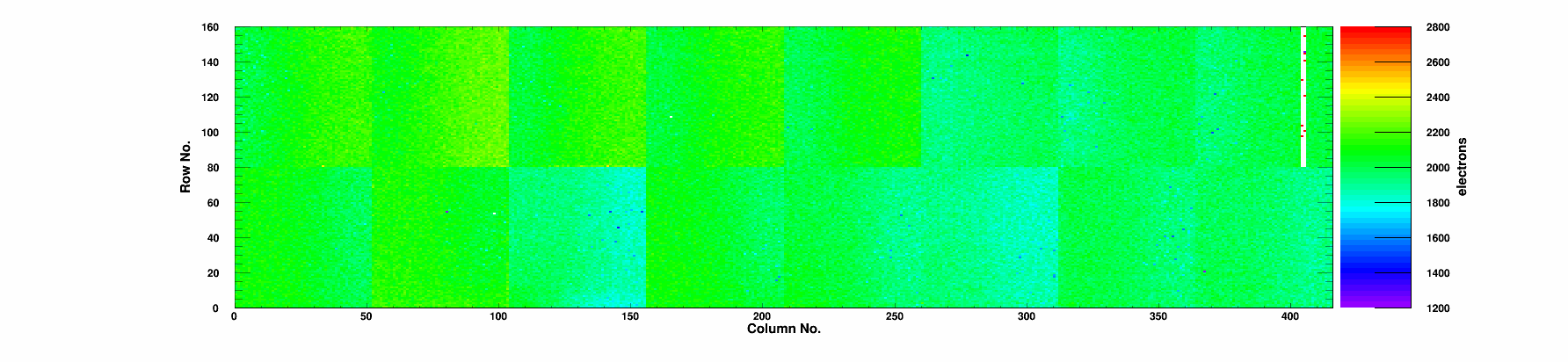

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
C
|
161 | 1 | 99.83 | 99.14 | 0.67 | 23.0 | 77.4 | 161 | 0/0 | 2 | -5088 | 185 | 66 |
|
Chip 1
|
A
|
0 | 0 | 99.81 | 98.90 | 0.54 | 25.6 | 86.4 | 0 | 0/0 | 0 | 1975 | 188 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.81 | 98.95 | 0.81 | 22.1 | 75.5 | 0 | 0/0 | 0 | 1953 | 188 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.84 | 99.10 | 0.7 | 37.2 | 122.6 | 0 | 0/0 | 0 | 2059 | 189 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.84 | 98.99 | 0.97 | 37.6 | 125.0 | 0 | 0/0 | 0 | 2091 | 191 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 98.94 | 0.8 | 45.5 | 147.8 | 0 | 0/0 | 0 | 2107 | 183 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.84 | 99.06 | 0.6 | 42.1 | 139.4 | 0 | 0/0 | 0 | 2159 | 174 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.86 | 99.23 | 0.59 | 44.2 | 147.2 | 0 | 0/0 | 0 | 2100 | 184 | 0 |
|
Chip 8
|
A
|
3 | 0 | 99.83 | 98.98 | 0.81 | 39.3 | 131.6 | 3 | 0/0 | 0 | 2052 | 183 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.81 | 98.97 | 0.55 | 38.7 | 128.2 | 0 | 0/0 | 0 | 2098 | 184 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.26 | 0.7 | 42.3 | 138.0 | 0 | 0/0 | 0 | 1912 | 184 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.82 | 99.04 | 0.81 | 34.2 | 114.4 | 0 | 0/0 | 0 | 2044 | 186 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.83 | 99.21 | 1.03 | 33.0 | 109.6 | 0 | 0/0 | 0 | 1980 | 188 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.27 | 0.62 | 19.9 | 68.3 | 0 | 0/0 | 0 | 1890 | 185 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.83 | 98.96 | 0.62 | 21.4 | 73.5 | 0 | 0/0 | 0 | 1976 | 179 | 0 |
|
Chip 15
|
A
|
2 | 0 | 99.81 | 98.91 | 0.74 | 21.3 | 72.5 | 1 | 0/0 | 0 | 1954 | 194 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-18 | |
| TestTime | Test Time | 13:47 | |
| TestDuration | Duration | 1:19:43 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
