Test Date: 2016-08-18 13:47
Analysis date: 2016-08-18 15:33
Analysis date: 2016-08-18 15:33
M4433 XRayHRQualification
Summary
| Module | Module | M4433 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 235 | |
| BumpBondingDefects | Bump Bonding Defects | 68 | |
| NoisyPixels | Noisy Pixels | 25 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

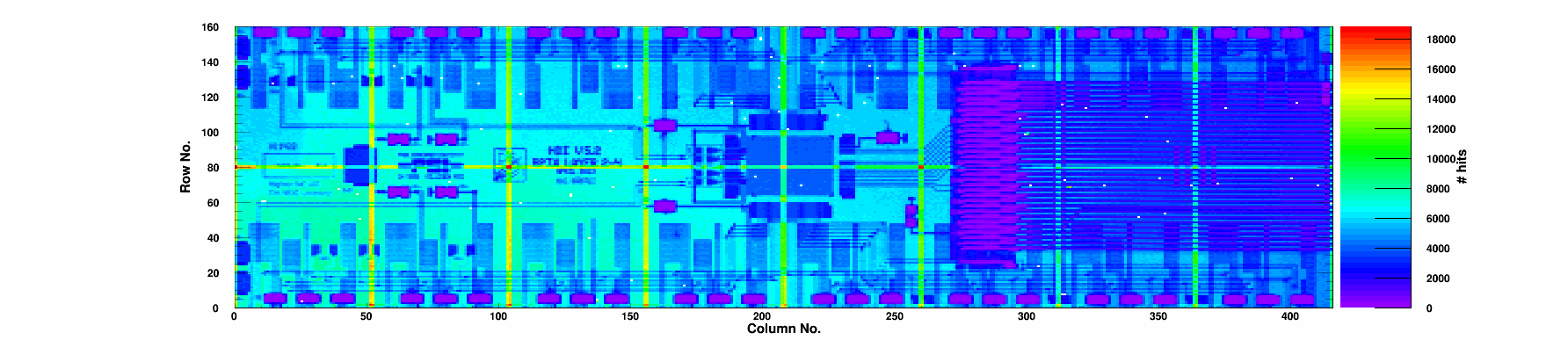

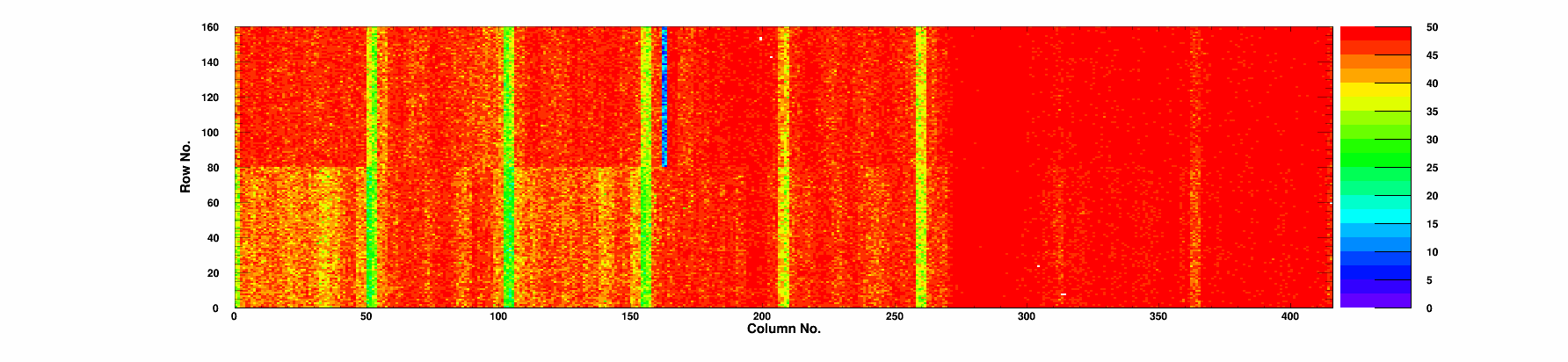

| Efficiency | Efficiency 50/120 | 99.83/99.05 | % |

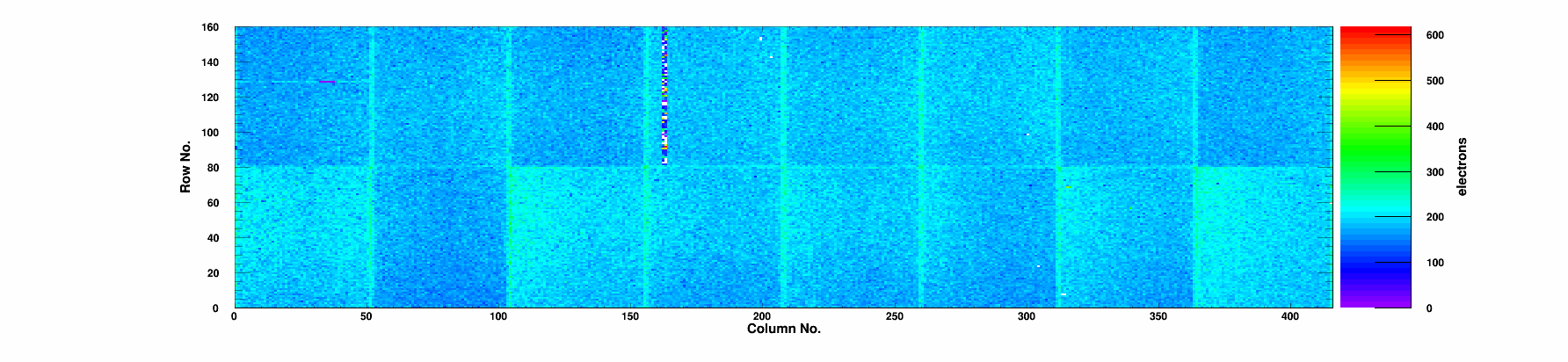

| Noise | Mean Noise | 184 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
2 | 0 | 99.83 | 98.90 | 1.34 | 19.9 | 68.5 | 2 | 0/0 | 0 | 1976 | 175 | 0 |
|
Chip 1
|
A
|
4 | 0 | 99.84 | 99.08 | 0.64 | 22.5 | 77.0 | 4 | 0/0 | 0 | 1987 | 181 | 0 |
|
Chip 2
|
A
|
6 | 0 | 99.83 | 99.04 | 0.68 | 20.6 | 70.7 | 6 | 0/0 | 0 | 2004 | 189 | 0 |
|
Chip 3
|
A
|
6 | 0 | 99.81 | 98.93 | 0.87 | 35.9 | 118.7 | 6 | 0/0 | 0 | 2091 | 185 | 0 |
|
Chip 4
|
C
|
167 | 1 | 99.84 | 99.14 | 1.98 | 36.4 | 120.4 | 5 | 0/0 | 0 | 5228 | 186 | 20 |
|
Chip 5
|
A
|
5 | 0 | 99.85 | 99.29 | 0.63 | 43.4 | 141.4 | 5 | 0/0 | 0 | 2110 | 175 | 0 |
|
Chip 6
|
A
|
6 | 0 | 99.82 | 98.98 | 0.73 | 42.4 | 139.4 | 6 | 0/0 | 0 | 2100 | 181 | 0 |
|
Chip 7
|
A
|
5 | 0 | 99.86 | 99.31 | 0.62 | 41.7 | 138.6 | 5 | 0/0 | 0 | 2095 | 172 | 0 |
|
Chip 8
|
A
|
6 | 0 | 99.81 | 98.93 | 0.87 | 50.0 | 163.6 | 6 | 0/0 | 0 | 2154 | 197 | 0 |
|
Chip 9
|
A
|
2 | 0 | 99.85 | 99.13 | 0.77 | 45.9 | 150.3 | 2 | 0/0 | 0 | 2108 | 170 | 0 |
|
Chip 10
|
A
|
7 | 0 | 99.85 | 99.04 | 0.85 | 50.7 | 163.9 | 7 | 0/0 | 0 | 2095 | 200 | 0 |
|
Chip 11
|
A
|
3 | 0 | 99.85 | 99.24 | 0.6 | 42.0 | 138.1 | 3 | 0/0 | 0 | 2118 | 185 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.81 | 98.93 | 0.81 | 39.4 | 129.4 | 1 | 0/0 | 0 | 2082 | 187 | 0 |
|
Chip 13
|
A
|
2 | 0 | 99.82 | 98.95 | 0.76 | 23.5 | 79.9 | 1 | 0/0 | 0 | 1959 | 179 | 1 |
|
Chip 14
|
A
|
9 | 0 | 99.83 | 98.90 | 0.59 | 26.0 | 88.2 | 6 | 0/0 | 0 | 1878 | 186 | 3 |
|
Chip 15
|
A
|
4 | 0 | 99.83 | 98.95 | 0.77 | 23.5 | 79.7 | 3 | 0/0 | 0 | 1920 | 201 | 1 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-18 | |
| TestTime | Test Time | 13:47 | |
| TestDuration | Duration | 1:19:43 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 269 | |
| nWarnings | # Warnings | 117 | |
| channel_0_count | Channel 0 | 117 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 13 | |
| message_readback_count | Readback start marker | 104 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
