Test Date: 2015-09-30 13:24
Analysis date: 2015-11-23 15:49
M3508 XRayHRQualification
Chips

Overview

Summary
Module Module M3508
Grade Grade A
ManualGrade Manual Grade None
ROCGrades ROC Grades A/B/C 16/0/0
PixelDefects Total Pixel Defects 10
BumpBondingDefects Bump Bonding Defects 0
NoisyPixels Noisy Pixels 0
HotPixelDefects Hot Pixels 10
ROCsWithReadoutProblems ROCs with r/o problems 0
ROCsWithUniformityProblems ROCs with unif problems 0
Efficiency Efficiency 50/120 99.83/99.22 %
Noise Mean Noise 150 e-
Summary ROCs
ROC Grade Def DC Eff 50 Eff 120 Eff chi2 Rate "50" Rate "150" BB def R/O Unif. Thr [e-] "100" Noise "100" Noisy pix
Chip 0
A
 0 0 99.86 99.23 0.79 65.5 130.9 0 0/0 0 5905 155 0
Chip 1
A
 2 0 99.81 99.16 2.34 65.9 131.9 0 0/0 0 6241 148 0
Chip 2
A
 1 0 99.80 99.25 1.38 54.1 108.3 0 0/0 0 6270 155 0
Chip 3
A
 0 0 99.83 99.26 1.02 71.4 143.2 0 0/0 0 6032 150 0
Chip 4
A
 0 0 99.86 99.21 1.10 70.2 140.6 0 0/0 0 5998 142 0
Chip 5
A
 1 0 99.87 99.24 0.57 72.6 145.5 0 0/0 0 5963 145 0
Chip 6
A
 0 0 99.81 99.07 0.88 69.2 138.6 0 0/0 0 5591 150 0
Chip 7
A
 0 0 99.80 99.25 0.54 70.5 141.2 0 0/0 0 6292 157 0
Chip 8
A
 2 0 99.83 99.27 0.47 69.0 138.4 0 0/0 0 5543 143 0
Chip 9
A
 0 0 99.82 99.23 0.97 69.5 139.4 0 0/0 0 5754 142 0
Chip 10
A
 0 0 99.84 99.25 0.49 73.8 147.7 0 0/0 0 6526 162 0
Chip 11
A
 0 0 99.83 99.26 0.78 71.0 142.5 0 0/0 0 5855 143 0
Chip 12
A
 0 0 99.83 99.19 0.54 72.5 145.2 0 0/0 0 6362 153 0
Chip 13
A
 3 0 99.84 99.13 1.41 57.2 114.7 0 0/0 0 6055 166 0
Chip 14
A
 1 0 99.82 99.24 0.61 66.3 132.7 0 0/0 0 5681 144 0
Chip 15
A
 0 0 99.82 99.23 0.53 66.5 133.3 0 0/0 0 5907 149 0
Efficiency at 50 MHz/cm2
Efficiency at 120 MHz/cm2
BB defects 50
BB defects 150
Noise 100

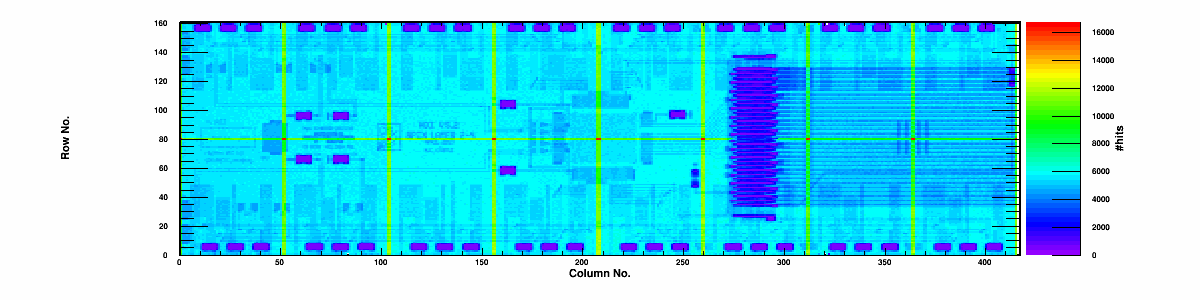

Hit Map 50
Hits distribution 50 inner/edge/corner

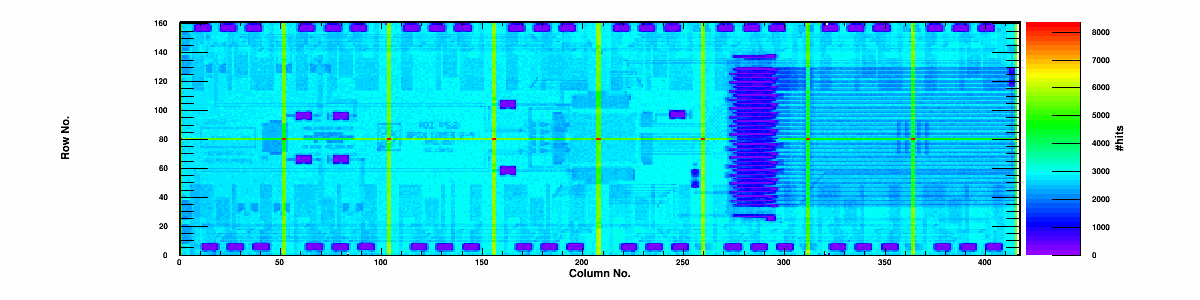

Hit Map 150
Hits distribution 150 inner/edge/corner

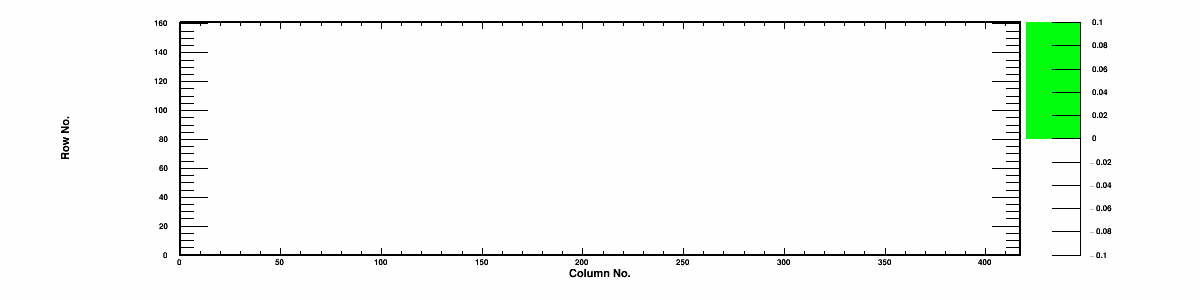

Bump Bonding Defects 50
BB defects 50
Bump Bonding Defects 150
BB defects 150
Masked Hot Pixels 50
Hot pixels 50
Masked Hot Pixels 150
Hot pixels 150

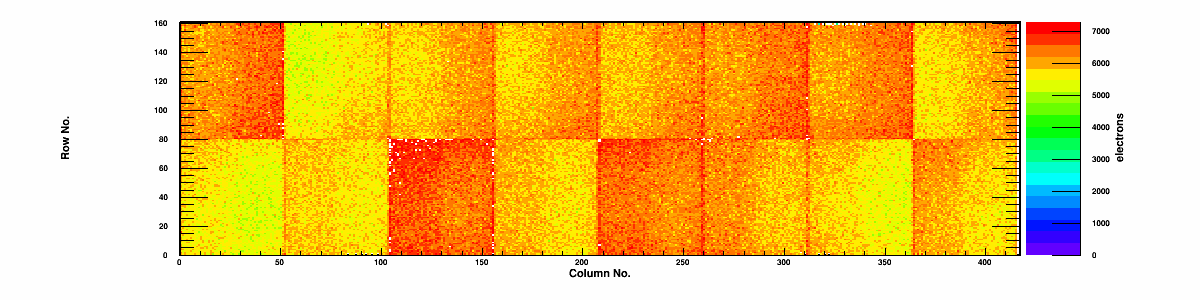

Threshold 100
Threshold distribution 100

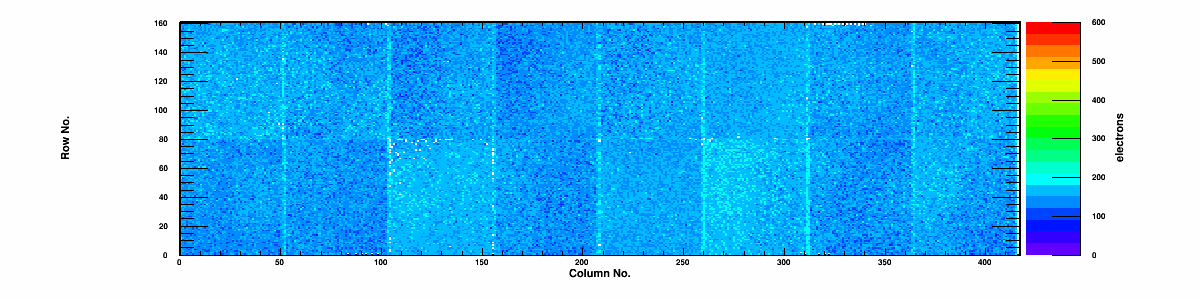

Noise 100
Noise distribution 100
Pixel Alive Map
Dead/inefficient pixels
HR Efficiency Map 50
Efficiency distribution 50
HR Efficiency Map 100
Efficiency distribution 100
HR Efficiency Map 150
Efficiency distribution 150
HR Efficiency Map 200
Efficiency distribution 200
Retrimmed Hot Pixels 0
Retri Hot Pix 0
Errors
nCriticals # Criticals 0
nErrors # Errors 17
nWarnings # Warnings 0
channel_0_count Channel 0 0
channel_1_count Channel 1 1
channel_2_count Channel 2 0
channel_3_count Channel 3 0
message_tokenchain_count Token Chain Length 1
message_eventid_count Event ID mismatch 0
message_readback_count Readback start marker 0
message_notokenpass_count has NoTokenPass 0
message_datasize_count Data size criticals 0
message_missingevents_count Missing Event criticals 0
message_usbtimeout_count USB criticals 0
message_deser400_count DESER400 failure 0
message_daqerror_count DAQ error 0
Logfile

Overview

MoReWeb-v0.6.7-72-g43ac54d on branch dev-v0.7.0
