Test Date: 2019-05-03 10:27
Analysis date: 2019-05-03 15:24
Chip 11
Grading
ROCGrade Final ROC Grade C
NumberOfHotPixels # Hot Pixels 300/100 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 300/100 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 300/100 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 300/100 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 300/100 0/1
Efficiency Efficiency 50/120 99.89/99.79
EfficiencyFit Efficiency Fit chi2/ndf: 0.28, # points: 80
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 300/100 A/A
HitMapGrade Hit Map Grade 300/100 A/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 300/100 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 300/100 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C11
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.28
NumberFitPoints # fit points 80
p0 p0 99.90
p1 p1 6.54e-08
InterpolatedEfficiency50 Interpol. Efficiency 50 99.89
InterpolatedEfficiency120 Interpol. Efficiency 120 99.79
Efficiency Map 50: C11
Efficiency Map 100: C11
Efficiency Map 150: C11
Efficiency Map 200: C11
Efficiency Map 250: C11
Efficiency Map 300: C11
Efficiency Map 400: C11
Efficiency Distr. 50: C11
Plot
N N 4160
mu μ 99.95
sigma σ 0.32
Efficiency Distr. 100: C11
Plot
N N 4160
mu μ 99.88
sigma σ 0.50
Efficiency Distr. 150: C11
Plot
N N 4160
mu μ 99.81
sigma σ 0.62
Efficiency Distr. 200: C11
Plot
N N 4160
mu μ 99.74
sigma σ 0.73
Efficiency Distr. 250: C11
Plot
N N 4160
mu μ 99.65
sigma σ 0.88
Efficiency Distr. 300: C11
Plot
N N 4160
mu μ 99.56
sigma σ 0.99
Efficiency Distr. 400: C11
Plot
N N 4160
mu μ 99.33
sigma σ 1.33

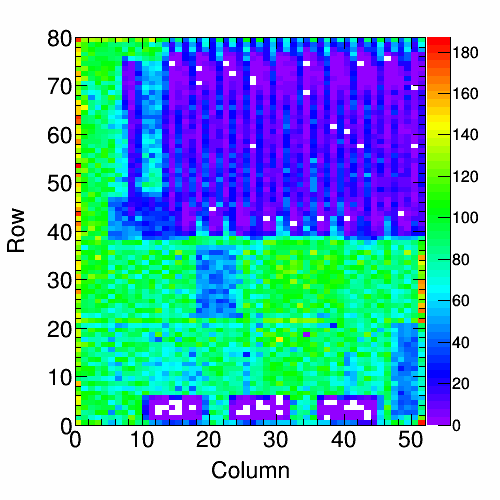

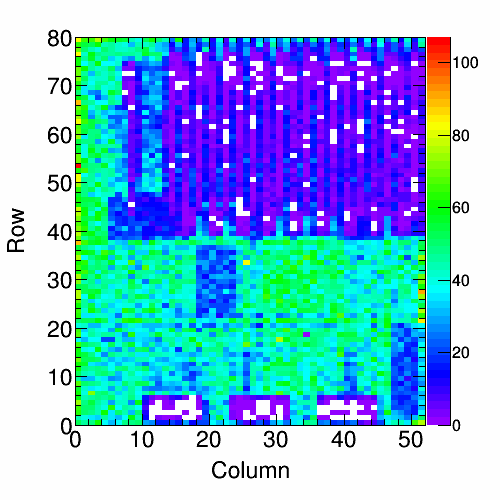

Background Map 50: C11
Plot
RealHitrate Real Hitrate 31.98 MHz/cm2

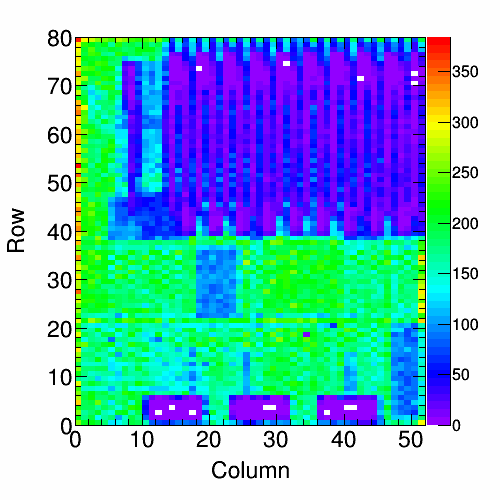

Background Map 100: C11
Plot
RealHitrate Real Hitrate 65.63 MHz/cm2
Background Map 150: C11
Plot
RealHitrate Real Hitrate 99.81 MHz/cm2

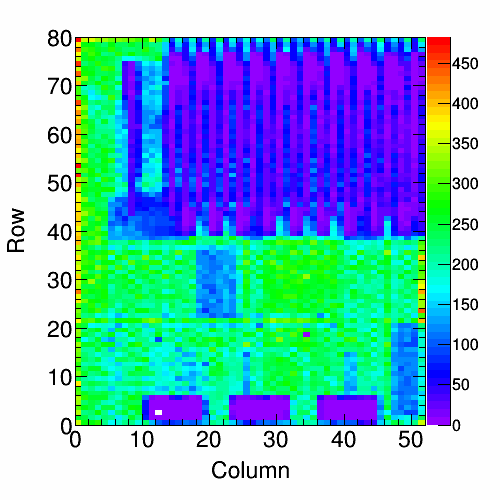

Background Map 200: C11
Plot
RealHitrate Real Hitrate 134.61 MHz/cm2

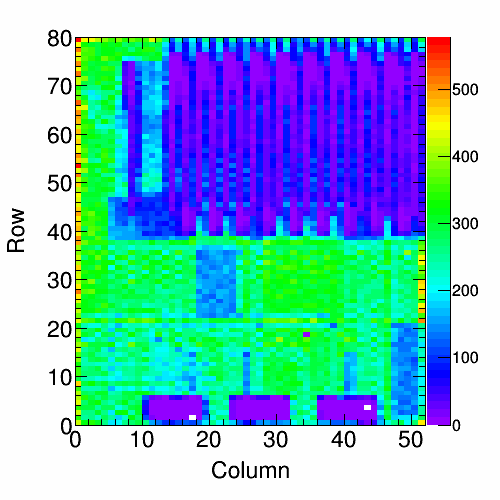

Background Map 250: C11
Plot
RealHitrate Real Hitrate 169.62 MHz/cm2

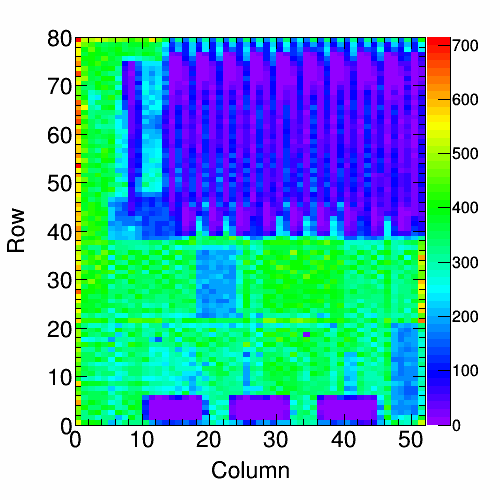

Background Map 300: C11
Plot
RealHitrate Real Hitrate 205.47 MHz/cm2
Background Map 400: C11
Plot
RealHitrate Real Hitrate 258.50 MHz/cm2
Retrim Hot Pix 150: C11
Retrim Hot Pix 50: C11
Masked Hot Pixels 300: C11
Masked Hot Pixels 100: C11
Hit Map 300: C11
Plot
RealHitrate Real Hitrate 202.40 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 300: C11
Hit Map 100: C11
Plot
RealHitrate Real Hitrate 63.24 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 1
BB Defects 100: C11
Col. Read. Unif. 300: C11
Plot
N N 5750046
mu μ 125858
sigma σ 49219.29
Col. Read. Unif. 100: C11
Plot
N N 1802572
mu μ 39334
sigma σ 14796.25
Read. Unif. over Time 300: C11
Plot
N N 6544590
mu μ 6638
sigma_th σ_th 81.47
Time unif. distribution 300: C11
Plot
chi2/ndf chi2/ndf 3.48
sigma σ 93.03
sigma_th σ_th 81.48
expectation Red curve (expected) Poisson
Read. Unif. over Time 100: C11
Plot
N N 2045384
mu μ 2074
sigma_th σ_th 45.55
Time unif. distribution 100: C11
Plot
chi2/ndf chi2/ndf 0.59
sigma σ 45.40
sigma_th σ_th 45.55
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C11

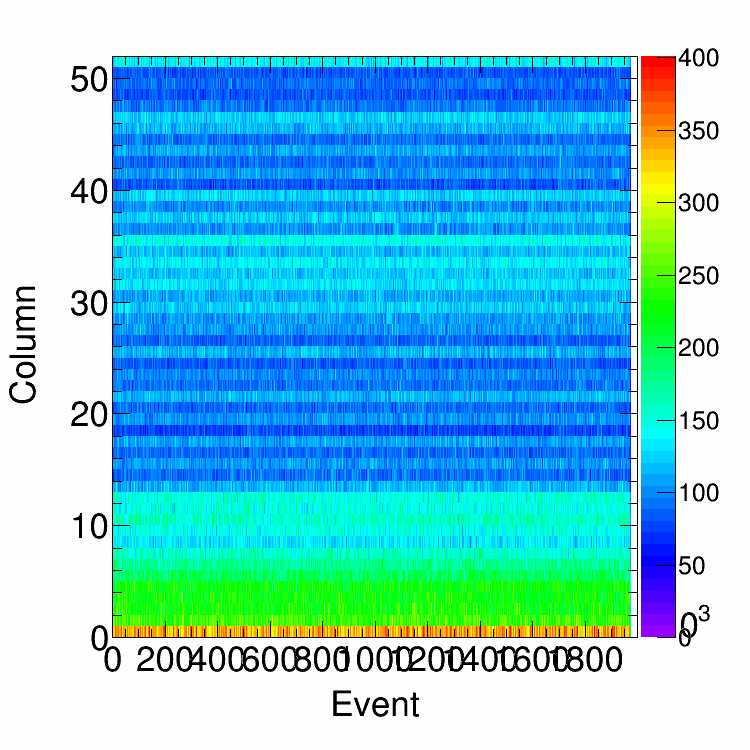

Col. Uniformity per Event: C11 300
Plot
mu μ 22.32
sigma fit error of μ 2.23
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

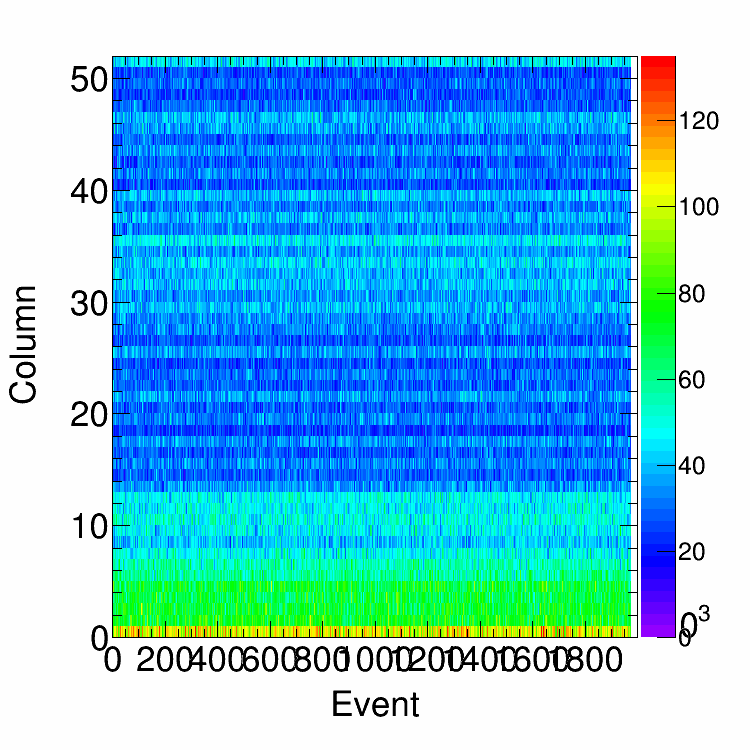

Col. Uniformity per Event: C11 100
Plot
mu μ 22.45
sigma fit error of μ 2.21
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C11 250
Plot
N N 3950
mu μ 298.22
sigma RMS 109.74
threshold thr 691.64
fit fit Gaussian
fit_peak μ fit 288.18
fit_sigma σ fit 63.15
MeasuredHitrate Measured hitrate: 74.4
under <= 151.00
over >= 59.00
Alive Map: C11
DC Efficiency Distribution: C11
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.92
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.78
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C11
