Test Date: 2019-05-03 10:27
Analysis date: 2019-05-03 15:24
Chip 2
Grading
ROCGrade Final ROC Grade C
NumberOfHotPixels # Hot Pixels 300/100 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 300/100 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 300/100 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 300/100 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 300/100 0/0
Efficiency Efficiency 50/120 99.9/99.83
EfficiencyFit Efficiency Fit chi2/ndf: 0.19, # points: 64
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 300/100 A/A
HitMapGrade Hit Map Grade 300/100 A/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 300/100 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 300/100 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C2
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.19
NumberFitPoints # fit points 64
p0 p0 99.90
p1 p1 4.49e-08
InterpolatedEfficiency50 Interpol. Efficiency 50 99.90
InterpolatedEfficiency120 Interpol. Efficiency 120 99.83
Efficiency Map 50: C2
Efficiency Map 100: C2
Efficiency Map 150: C2
Efficiency Map 200: C2
Efficiency Map 250: C2
Efficiency Map 300: C2
Efficiency Map 400: C2
Efficiency Distr. 50: C2
Plot
N N 4160
mu μ 99.94
sigma σ 0.35
Efficiency Distr. 100: C2
Plot
N N 4160
mu μ 99.87
sigma σ 0.52
Efficiency Distr. 150: C2
Plot
N N 4160
mu μ 99.81
sigma σ 0.63
Efficiency Distr. 200: C2
Plot
N N 4160
mu μ 99.73
sigma σ 0.75
Efficiency Distr. 250: C2
Plot
N N 4160
mu μ 99.65
sigma σ 0.87
Efficiency Distr. 300: C2
Plot
N N 4160
mu μ 99.57
sigma σ 0.93
Efficiency Distr. 400: C2
Plot
N N 4160
mu μ 99.42
sigma σ 1.14

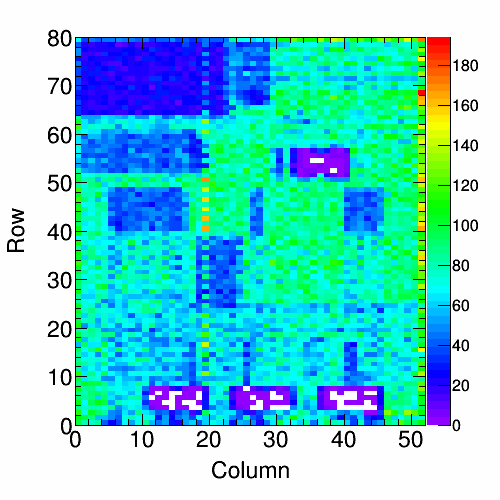

Background Map 50: C2
Plot
RealHitrate Real Hitrate 38.09 MHz/cm2

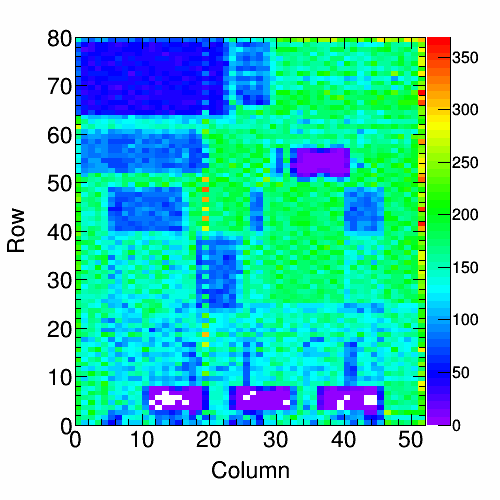

Background Map 100: C2
Plot
RealHitrate Real Hitrate 77.82 MHz/cm2

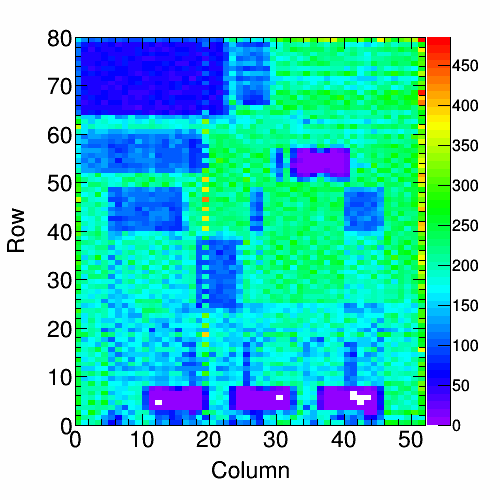

Background Map 150: C2
Plot
RealHitrate Real Hitrate 118.00 MHz/cm2
Background Map 200: C2
Plot
RealHitrate Real Hitrate 159.73 MHz/cm2

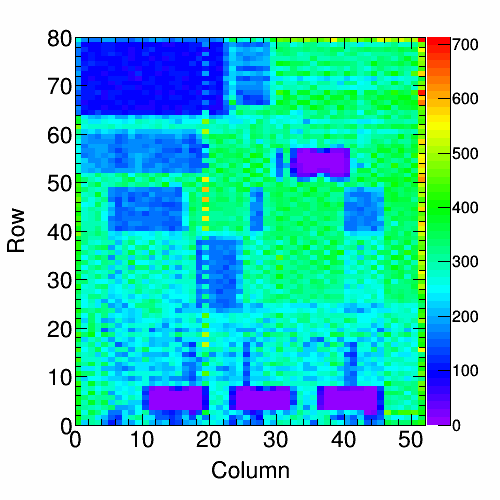

Background Map 250: C2
Plot
RealHitrate Real Hitrate 202.69 MHz/cm2
Background Map 300: C2
Plot
RealHitrate Real Hitrate 245.23 MHz/cm2
Background Map 400: C2
Plot
RealHitrate Real Hitrate 305.32 MHz/cm2
Retrim Hot Pix 150: C2
Retrim Hot Pix 50: C2
Masked Hot Pixels 300: C2
Masked Hot Pixels 100: C2

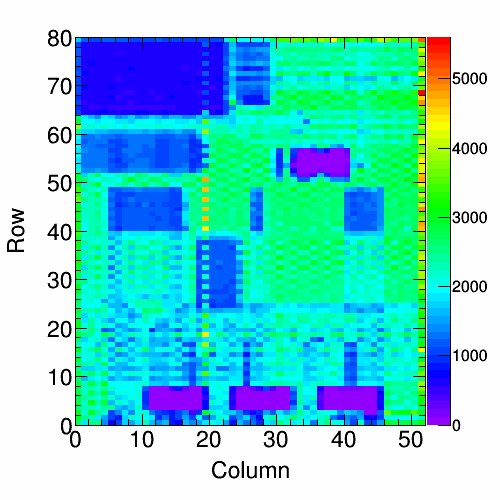

Hit Map 300: C2
Plot
RealHitrate Real Hitrate 241.75 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 300: C2

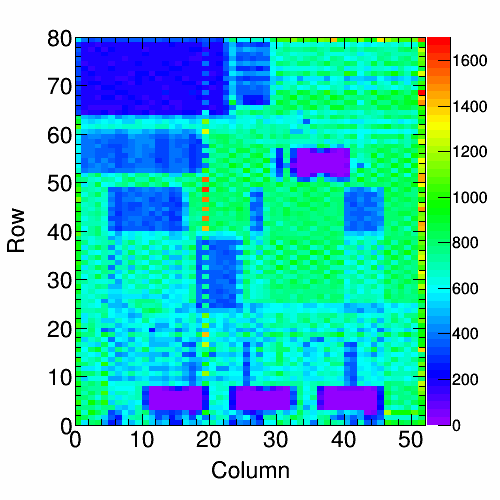

Hit Map 100: C2
Plot
RealHitrate Real Hitrate 75.22 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 100: C2
Col. Read. Unif. 300: C2
Plot
N N 6987065
mu μ 150330
sigma σ 33904.02
Col. Read. Unif. 100: C2
Plot
N N 2178791
mu μ 46788
sigma σ 10103.72
Read. Unif. over Time 300: C2
Plot
N N 7817182
mu μ 7928
sigma_th σ_th 89.04
Time unif. distribution 300: C2
Plot
chi2/ndf chi2/ndf 5.45
sigma σ 102.75
sigma_th σ_th 89.05
expectation Red curve (expected) Poisson
Read. Unif. over Time 100: C2
Plot
N N 2432997
mu μ 2468
sigma_th σ_th 49.67
Time unif. distribution 100: C2
Plot
chi2/ndf chi2/ndf 1.57
sigma σ 52.98
sigma_th σ_th 49.68
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C2

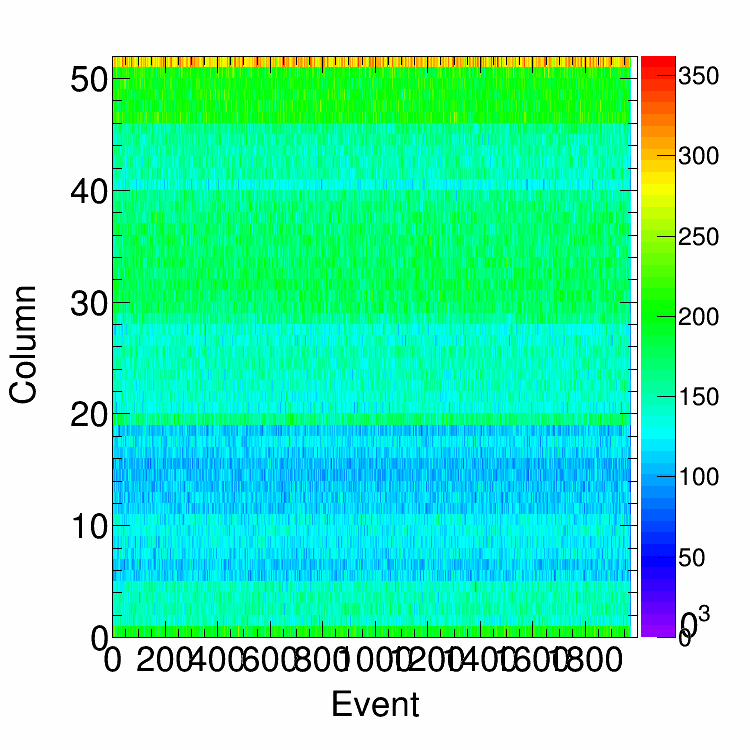

Col. Uniformity per Event: C2 300
Plot
mu μ 27.97
sigma fit error of μ 2.13
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C2 100
Plot
mu μ 28.55
sigma fit error of μ 2.14
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C2 250
Plot
N N 3955
mu μ 296.94
sigma RMS 109.45
threshold thr 10737.50
fit fit Gaussian
fit_peak μ fit 282.46
fit_sigma σ fit 63.90
MeasuredHitrate Measured hitrate: 74.4
under <= 153.00
over >= 52.00
Alive Map: C2
DC Efficiency Distribution: C2
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.92
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.82
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C2
MoReWeb-v1.1.0 on branch AnalyzeNewXPixelAlive
