Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 21:04
Analysis date: 2016-05-25 21:04
M2026 XRayHRQualification
Summary
| Module | Module | M2026 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 15 | |
| BumpBondingDefects | Bump Bonding Defects | 12 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

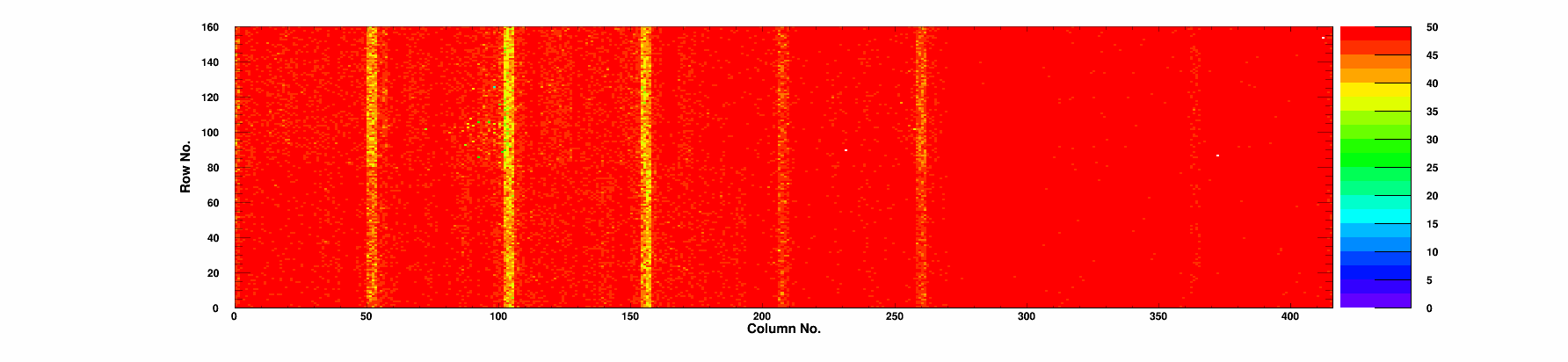

| Efficiency | Efficiency 50/120 | 99.86/99.23 | % |
| Noise | Mean Noise | 169 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
3 | 0 | 99.87 | 99.23 | 0.47 | 79.2 | 1 | 26.9 | 0/0 | 0 | 1894 | 169 | 2 |
|
Chip 1
|
A
|
0 | 0 | 99.84 | 98.94 | 0.72 | 76.8 | 0 | 25.5 | 0/0 | 0 | 1982 | 168 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.27 | 0.37 | 72.1 | 0 | 24.1 | 0/0 | 0 | 1961 | 166 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.89 | 99.32 | 0.7 | 115.9 | 0 | 39.9 | 0/0 | 0 | 2035 | 165 | 1 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.32 | 0.46 | 130.3 | 0 | 45.1 | 0/0 | 0 | 2090 | 164 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 99.31 | 0.45 | 160.7 | 0 | 56.7 | 0/0 | 0 | 2171 | 168 | 0 |
|
Chip 6
|
A
|
2 | 0 | 99.87 | 99.28 | 0.81 | 156.7 | 2 | 54.5 | 0/0 | 0 | 2148 | 169 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.87 | 99.40 | 0.45 | 152.8 | 1 | 53.0 | 0/0 | 0 | 2149 | 164 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.39 | 0.49 | 130.1 | 0 | 44.5 | 0/0 | 0 | 2108 | 167 | 0 |
|
Chip 9
|
A
|
2 | 0 | 99.87 | 99.30 | 0.52 | 138.0 | 2 | 47.6 | 0/0 | 0 | 2123 | 175 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.32 | 0.57 | 148.9 | 0 | 52.2 | 0/0 | 0 | 2135 | 172 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.85 | 99.05 | 0.76 | 123.0 | 1 | 42.4 | 0/0 | 0 | 2101 | 174 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.24 | 1.02 | 104.6 | 0 | 35.8 | 0/0 | 0 | 2042 | 163 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.30 | 0.33 | 63.4 | 0 | 21.0 | 0/0 | 0 | 1964 | 172 | 0 |
|
Chip 14
|
A
|
3 | 0 | 99.84 | 98.96 | 0.67 | 70.6 | 3 | 23.4 | 0/0 | 0 | 1960 | 184 | 0 |
|
Chip 15
|
A
|
2 | 0 | 99.84 | 98.99 | 0.46 | 69.9 | 2 | 23.5 | 0/0 | 0 | 1968 | 169 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-21 | |
| TestTime | Test Time | 11:04 | |
| TestDuration | Duration | 1:26:19 | |
| pXar | pXar version | v2.2.5+88~g694c14c | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 3 | |
| nWarnings | # Warnings | 2 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 2 | |
| channel_3_count | Channel 3 | 3 | |
| message_tokenchain_count | Token Chain Length | 3 | |
| message_readback_count | Readback start marker | 2 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
