Test Date: 2015-07-10 14:30
Analysis date: 2016-05-25 21:41
Analysis date: 2016-05-25 21:41
M2032 XRayHRQualification
Summary
| Module | Module | M2032 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 46 | |
| BumpBondingDefects | Bump Bonding Defects | 44 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.20 | % |
| Noise | Mean Noise | 162 | e- |

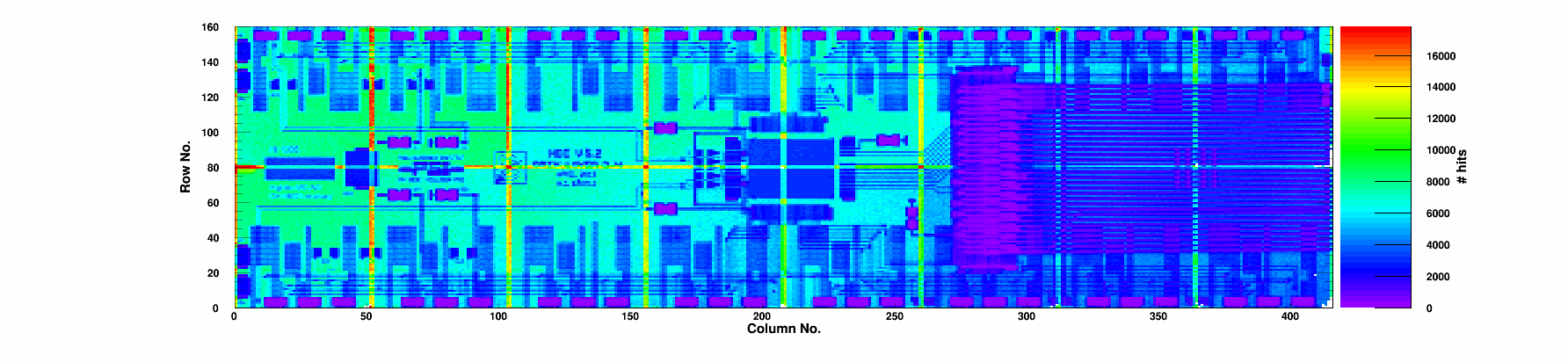

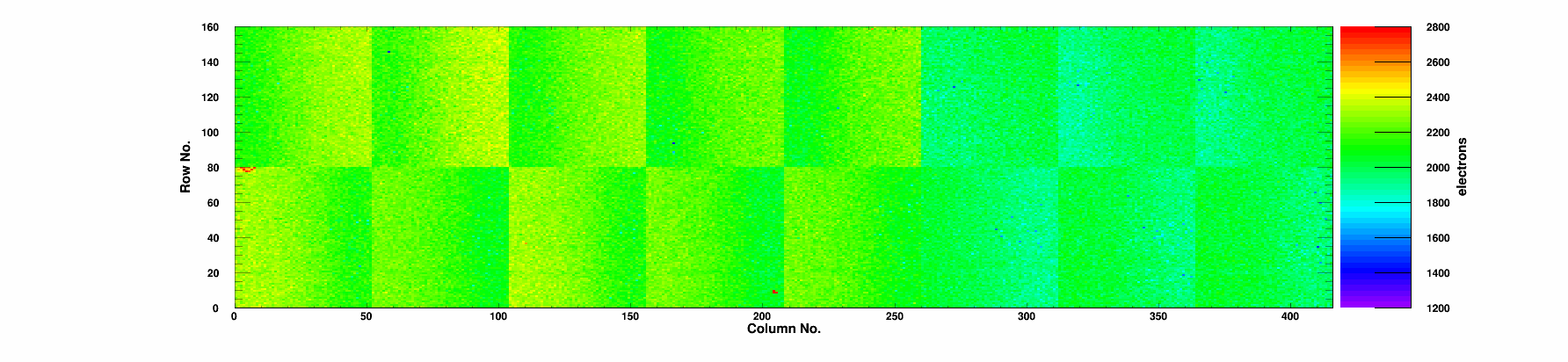

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
18 | 0 | 99.85 | 98.99 | 0.62 | 73.7 | 18 | 25.1 | 0/0 | 0 | 1978 | 168 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 98.94 | 0.69 | 76.8 | 0 | 25.8 | 0/0 | 0 | 1967 | 161 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.24 | 0.27 | 76.0 | 0 | 25.4 | 0/0 | 0 | 1984 | 173 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.89 | 99.35 | 0.82 | 138.6 | 0 | 48.1 | 0/0 | 0 | 2174 | 168 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.30 | 0.59 | 143.2 | 0 | 49.8 | 0/0 | 0 | 2178 | 164 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.32 | 0.68 | 148.7 | 0 | 52.4 | 0/0 | 0 | 2216 | 155 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.39 | 0.51 | 163.9 | 0 | 56.8 | 0/0 | 0 | 2257 | 173 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.88 | 99.36 | 0.58 | 161.0 | 0 | 55.5 | 0/0 | 0 | 2235 | 161 | 0 |
|
Chip 8
|
A
|
3 | 0 | 99.85 | 99.32 | 0.48 | 154.3 | 3 | 52.8 | 0/0 | 0 | 2235 | 167 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.30 | 0.49 | 136.5 | 0 | 47.4 | 0/0 | 0 | 2172 | 156 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.89 | 99.36 | 0.46 | 150.2 | 0 | 52.4 | 0/0 | 0 | 2230 | 156 | 0 |
|
Chip 11
|
A
|
5 | 0 | 99.84 | 99.07 | 0.8 | 117.7 | 3 | 40.6 | 0/0 | 0 | 2166 | 159 | 1 |
|
Chip 12
|
A
|
1 | 0 | 99.87 | 99.32 | 0.54 | 115.6 | 1 | 39.5 | 0/0 | 0 | 2170 | 163 | 0 |
|
Chip 13
|
A
|
2 | 0 | 99.83 | 99.05 | 0.45 | 57.1 | 2 | 18.6 | 0/0 | 0 | 1973 | 152 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.85 | 98.98 | 0.37 | 63.6 | 0 | 21.1 | 0/0 | 0 | 1990 | 161 | 0 |
|
Chip 15
|
A
|
17 | 0 | 99.84 | 98.91 | 0.43 | 65.5 | 17 | 22.2 | 0/0 | 0 | 1999 | 159 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-07-10 | |
| TestTime | Test Time | 14:30 | |
| TestDuration | Duration | 1:56:48 | |
| pXar | pXar version | v2.2.5+45~gbf85984 | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 5 | |
| nWarnings | # Warnings | 2 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_tokenchain_count | Token Chain Length | 3 | |
| message_readback_count | Readback start marker | 2 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
