Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 21:59
Analysis date: 2016-05-25 21:59
M2035 XRayHRQualification
Summary
| Module | Module | M2035 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 211 | |
| BumpBondingDefects | Bump Bonding Defects | 54 | |
| NoisyPixels | Noisy Pixels | 11 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

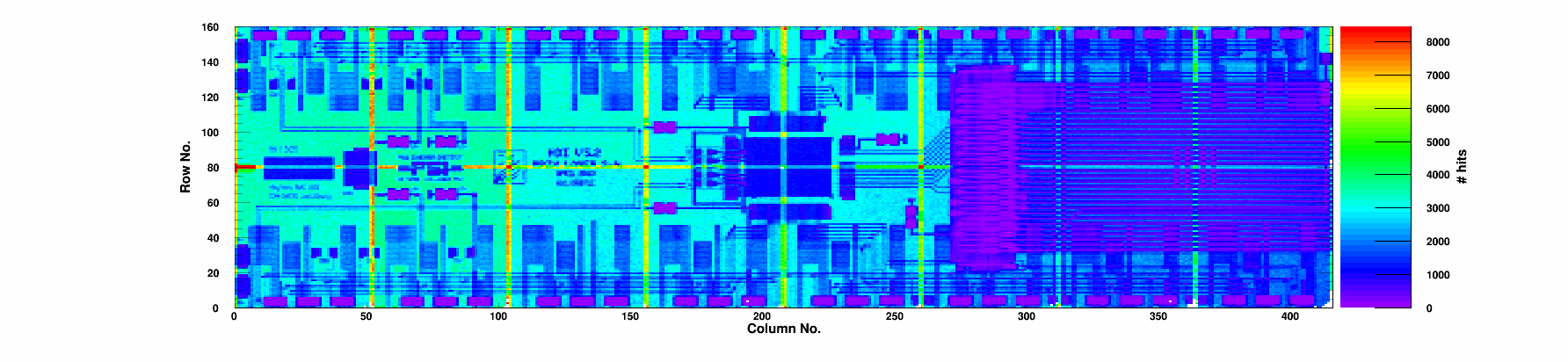

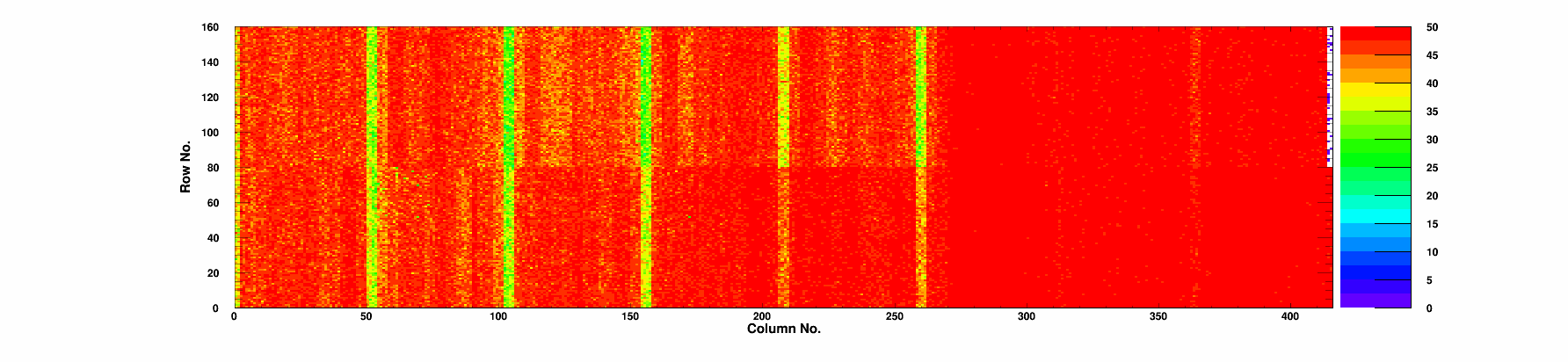

| Efficiency | Efficiency 50/120 | 99.84/99.16 | % |
| Noise | Mean Noise | 166 | e- |
Summary ROCs

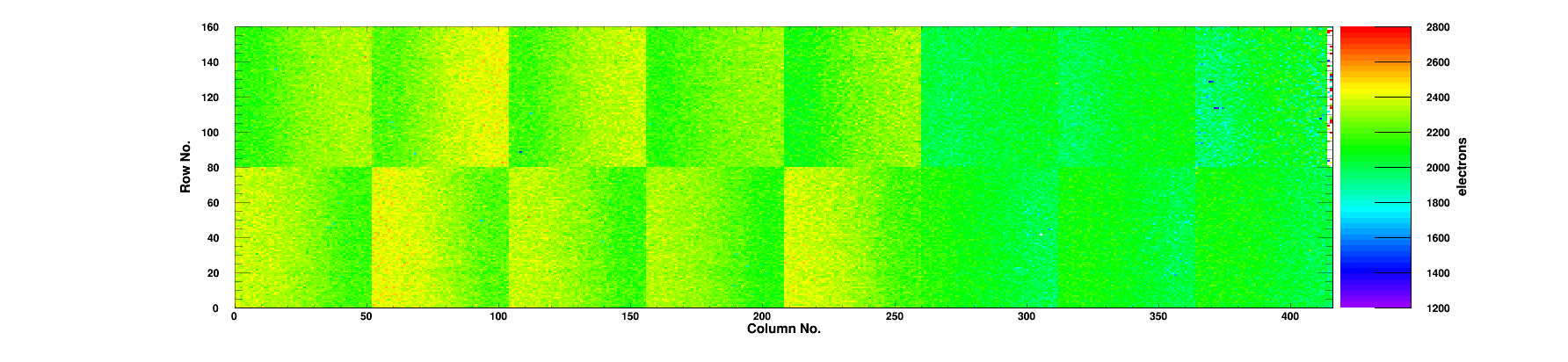

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
C
|
160 | 1 | 99.81 | 98.84 | 1.89 | 91.5 | 3 | 30.9 | 0/0 | 0 | 1924 | 180 | 11 |
|
Chip 1
|
A
|
0 | 0 | 99.84 | 98.79 | 1.44 | 89.7 | 0 | 29.7 | 0/0 | 0 | 2046 | 160 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.72 | 98.84 | 2.63 | 93.0 | 0 | 30.8 | 0/0 | 0 | 2031 | 172 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.85 | 99.05 | 0.56 | 172.2 | 0 | 59.6 | 0/0 | 0 | 2218 | 189 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.84 | 98.98 | 0.77 | 165.4 | 0 | 57.4 | 0/0 | 0 | 2231 | 155 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.84 | 99.07 | 0.64 | 197.8 | 0 | 69.9 | 0/0 | 0 | 2280 | 160 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.86 | 99.37 | 0.39 | 201.9 | 0 | 70.2 | 0/0 | 0 | 2317 | 167 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.88 | 99.34 | 0.89 | 197.1 | 0 | 68.9 | 0/0 | 0 | 2254 | 154 | 0 |
|
Chip 8
|
A
|
4 | 0 | 99.86 | 99.35 | 0.82 | 186.0 | 4 | 64.5 | 0/0 | 0 | 2282 | 160 | 0 |
|
Chip 9
|
A
|
6 | 0 | 99.87 | 99.32 | 0.64 | 203.4 | 6 | 70.5 | 0/0 | 0 | 2322 | 170 | 0 |
|
Chip 10
|
A
|
2 | 0 | 99.87 | 99.33 | 1.14 | 184.3 | 2 | 65.4 | 0/0 | 0 | 2273 | 162 | 0 |
|
Chip 11
|
A
|
3 | 0 | 99.87 | 99.34 | 0.55 | 158.3 | 3 | 55.7 | 0/0 | 0 | 2245 | 159 | 0 |
|
Chip 12
|
A
|
3 | 0 | 99.80 | 99.41 | 1.58 | 152.7 | 3 | 53.4 | 0/0 | 0 | 2293 | 190 | 0 |
|
Chip 13
|
A
|
2 | 0 | 99.87 | 99.34 | 0.36 | 87.4 | 2 | 29.2 | 0/0 | 0 | 2065 | 158 | 0 |
|
Chip 14
|
A
|
10 | 0 | 99.84 | 98.96 | 0.77 | 87.0 | 10 | 29.1 | 0/0 | 0 | 2068 | 153 | 0 |
|
Chip 15
|
A
|
21 | 0 | 99.88 | 99.31 | 0.4 | 81.9 | 21 | 27.8 | 0/0 | 0 | 2065 | 163 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-07-13 | |
| TestTime | Test Time | 11:39 | |
| TestDuration | Duration | 1:58:44 | |
| pXar | pXar version | v2.2.5+45~gbf85984 | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 1 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 1 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
