Test Date: 2016-06-20 15:52
Analysis date: 2016-06-20 17:35
Analysis date: 2016-06-20 17:35
M2036 XRayHRQualification
Summary
| Module | Module | M2036 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 95 | |
| BumpBondingDefects | Bump Bonding Defects | 14 | |
| NoisyPixels | Noisy Pixels | 28 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 1 | |

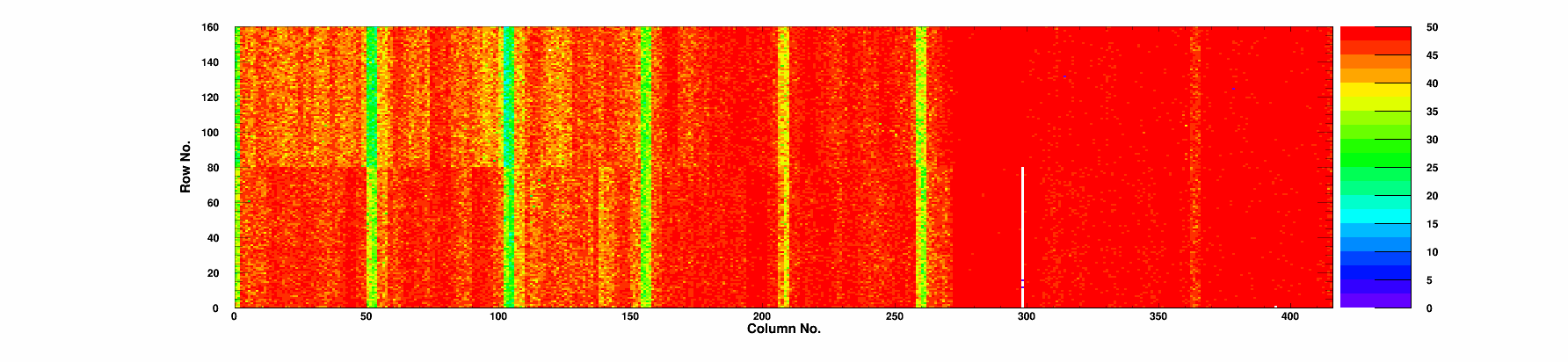

| Efficiency | Efficiency 50/120 | 99.86/99.30 | % |

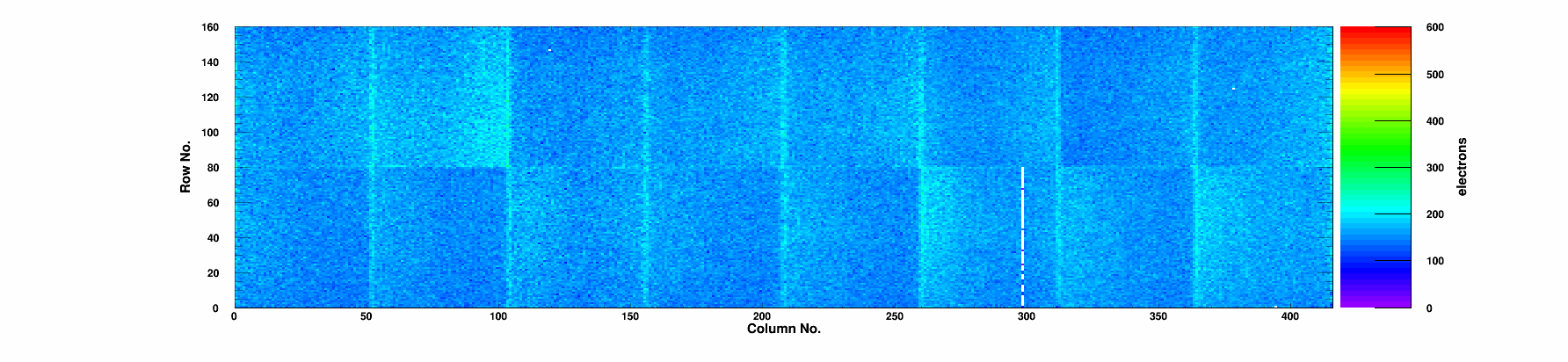

| Noise | Mean Noise | 159 | e- |
Summary ROCs

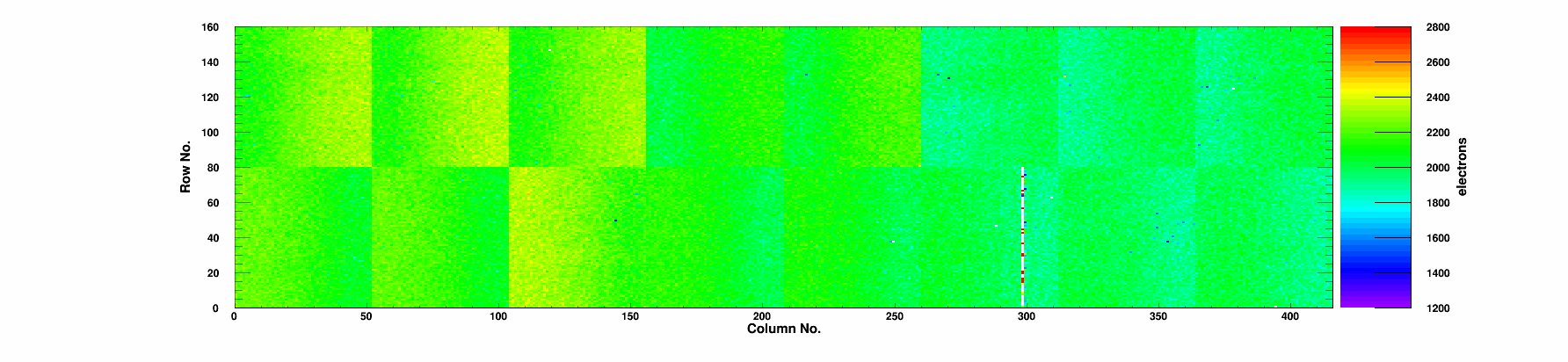

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.86 | 99.30 | 0.54 | 29.3 | 87.0 | 0 | 0/0 | 0 | 1975 | 162 | 1 |
|
Chip 1
|
A
|
1 | 0 | 99.88 | 99.31 | 1.33 | 29.4 | 88.4 | 0 | 0/0 | 0 | 1971 | 152 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.31 | 0.46 | 28.6 | 86.1 | 0 | 0/0 | 0 | 1966 | 159 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.37 | 0.67 | 50.8 | 147.8 | 0 | 0/0 | 0 | 2125 | 162 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.90 | 99.34 | 0.52 | 50.7 | 148.3 | 0 | 0/0 | 0 | 2084 | 160 | 0 |
|
Chip 5
|
A
|
2 | 0 | 99.86 | 99.32 | 0.61 | 67.1 | 190.1 | 2 | 0/0 | 0 | 2185 | 154 | 1 |
|
Chip 6
|
A
|
0 | 0 | 99.85 | 99.37 | 0.67 | 68.1 | 196.3 | 0 | 0/0 | 0 | 2242 | 174 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.86 | 99.34 | 0.52 | 67.9 | 196.5 | 0 | 0/0 | 0 | 2233 | 160 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.90 | 99.42 | 0.49 | 57.0 | 164.8 | 0 | 0/0 | 0 | 2155 | 153 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.37 | 0.54 | 57.2 | 164.2 | 0 | 0/0 | 0 | 2150 | 153 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.43 | 0.75 | 68.5 | 194.0 | 0 | 0/0 | 0 | 2249 | 160 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.35 | 0.46 | 48.3 | 141.4 | 0 | 0/0 | 0 | 2083 | 154 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.84 | 99.15 | 0.76 | 44.1 | 129.9 | 0 | 0/0 | 0 | 2066 | 157 | 0 |
|
Chip 13
|
C
|
81 | 1 | 99.75 | 99.03 | 82.09 | 29.4 | 88.6 | 3 | 0/0 | 1 | 5109 | 164 | 25 |
|
Chip 14
|
A
|
3 | 0 | 99.86 | 99.04 | 0.55 | 29.4 | 88.4 | 3 | 0/0 | 0 | 1970 | 159 | 0 |
|
Chip 15
|
A
|
7 | 0 | 99.87 | 99.30 | 0.47 | 29.6 | 88.1 | 6 | 0/0 | 0 | 1932 | 167 | 1 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-06-20 | |
| TestTime | Test Time | 15:52 | |
| TestDuration | Duration | 1:23:44 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 640 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
