Test Date: 2015-07-10 10:45
Analysis date: 2016-05-25 22:11
Analysis date: 2016-05-25 22:11
M2037 XRayHRQualification
Summary
| Module | Module | M2037 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 14 | |
| BumpBondingDefects | Bump Bonding Defects | 11 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.31 | % |
| Noise | Mean Noise | 159 | e- |

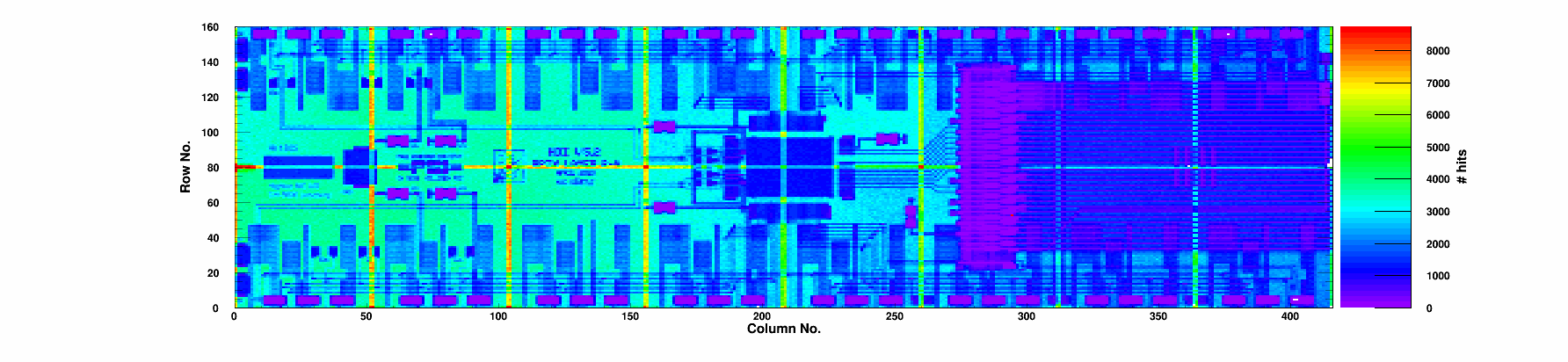

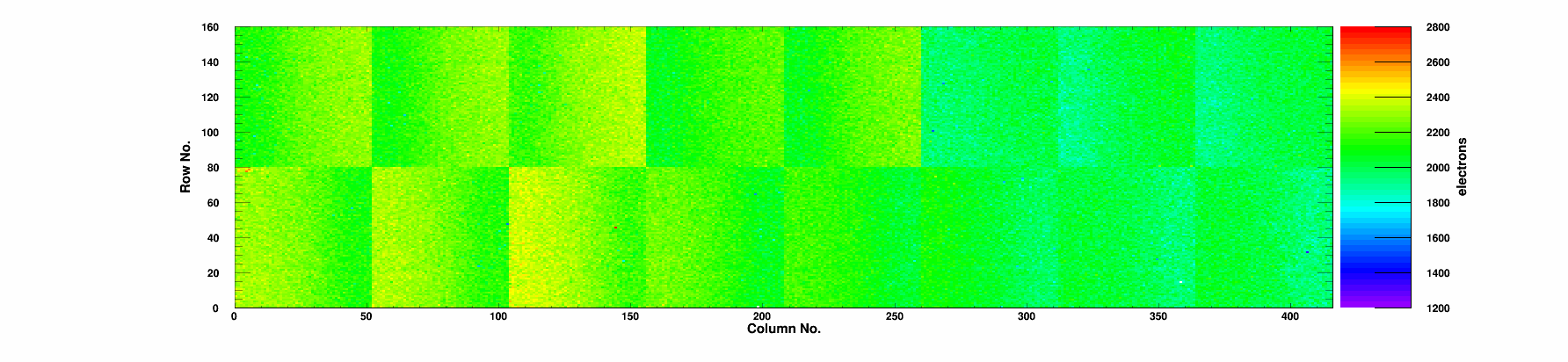

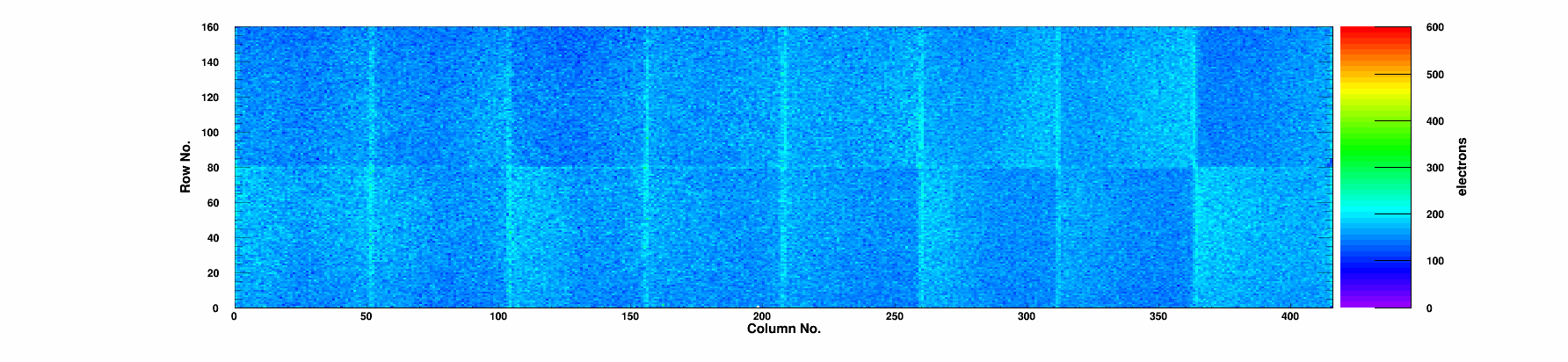

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
7 | 0 | 99.87 | 99.28 | 0.52 | 83.0 | 7 | 28.4 | 0/0 | 0 | 1985 | 151 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.88 | 99.34 | 0.86 | 95.9 | 1 | 32.6 | 0/0 | 0 | 1998 | 167 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.27 | 0.6 | 91.9 | 0 | 31.3 | 0/0 | 0 | 1985 | 164 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.31 | 0.89 | 166.6 | 0 | 58.6 | 0/0 | 0 | 2176 | 164 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.89 | 99.32 | 0.6 | 160.3 | 0 | 56.7 | 0/0 | 0 | 2147 | 159 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 99.32 | 0.4 | 206.4 | 0 | 74.6 | 0/0 | 0 | 2262 | 147 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.32 | 0.96 | 194.8 | 0 | 68.9 | 0/0 | 0 | 2209 | 153 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.84 | 99.30 | 0.91 | 194.7 | 1 | 69.6 | 0/0 | 0 | 2215 | 152 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.89 | 99.34 | 0.66 | 212.5 | 0 | 74.6 | 0/0 | 0 | 2231 | 165 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.35 | 0.35 | 203.8 | 0 | 72.6 | 0/0 | 0 | 2243 | 158 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.90 | 99.31 | 0.59 | 214.7 | 0 | 77.0 | 0/0 | 0 | 2285 | 163 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.85 | 99.32 | 0.52 | 164.7 | 0 | 58.5 | 0/0 | 0 | 2129 | 158 | 1 |
|
Chip 12
|
A
|
0 | 0 | 99.89 | 99.33 | 0.91 | 151.7 | 0 | 53.9 | 0/0 | 0 | 2114 | 156 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.33 | 0.51 | 95.6 | 0 | 32.8 | 0/0 | 0 | 2036 | 159 | 0 |
|
Chip 14
|
A
|
2 | 0 | 99.87 | 99.28 | 1.69 | 97.2 | 1 | 33.1 | 0/0 | 0 | 1996 | 154 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.88 | 99.30 | 0.66 | 96.8 | 1 | 33.4 | 0/0 | 0 | 1994 | 171 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-07-10 | |
| TestTime | Test Time | 10:45 | |
| TestDuration | Duration | 1:58:24 | |
| pXar | pXar version | v2.2.5+45~gbf85984 | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 2 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_readback_count | Readback start marker | 2 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
