Test Date: 2015-07-10 14:30
Analysis date: 2016-05-25 22:20
Analysis date: 2016-05-25 22:20
M2039 XRayHRQualification
Summary
| Module | Module | M2039 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 35 | |
| BumpBondingDefects | Bump Bonding Defects | 35 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

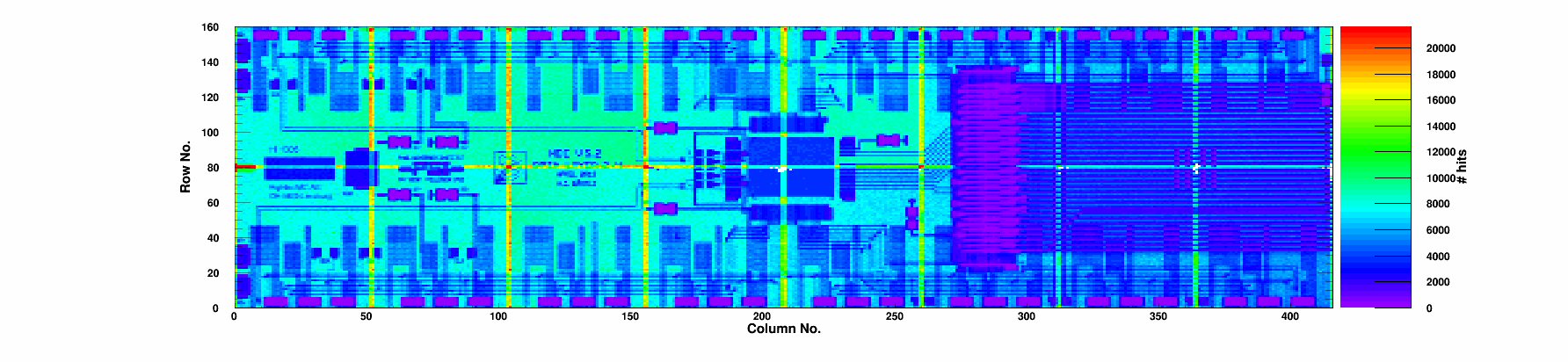

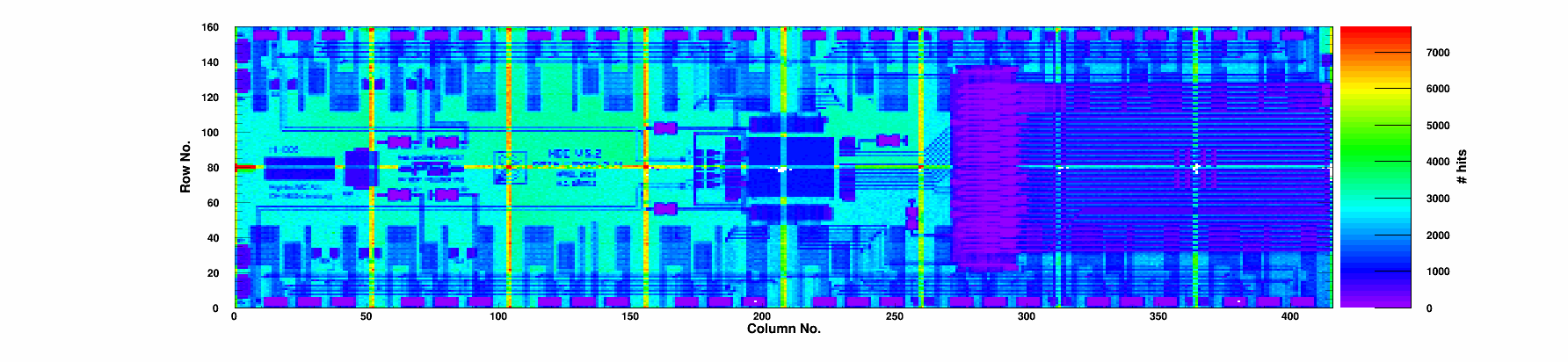

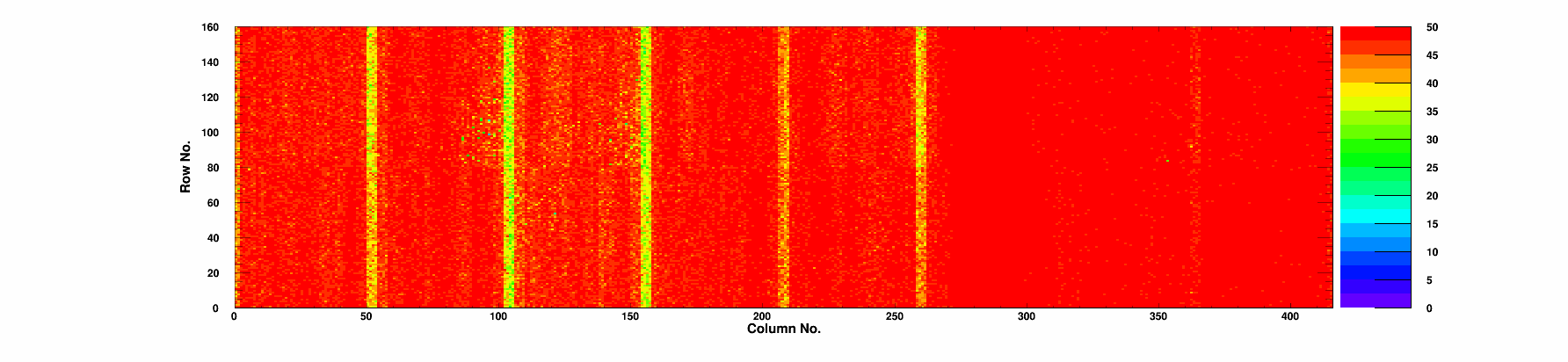

| Efficiency | Efficiency 50/120 | 99.87/99.31 | % |
| Noise | Mean Noise | 162 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
5 | 0 | 99.87 | 99.15 | 1.02 | 95.8 | 5 | 32.9 | 0/0 | 0 | 1957 | 168 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.27 | 1.26 | 92.1 | 0 | 31.2 | 0/0 | 0 | 1954 | 156 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.32 | 0.51 | 87.1 | 0 | 29.1 | 0/0 | 0 | 1931 | 164 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.35 | 0.49 | 164.4 | 0 | 57.0 | 0/0 | 0 | 2109 | 177 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.89 | 99.37 | 0.51 | 155.4 | 0 | 54.1 | 0/0 | 0 | 2086 | 164 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.87 | 99.36 | 1.18 | 199.0 | 0 | 69.9 | 0/0 | 0 | 2142 | 172 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.27 | 1.32 | 167.9 | 0 | 58.5 | 0/0 | 0 | 2095 | 159 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.89 | 99.34 | 0.4 | 169.2 | 0 | 58.5 | 0/0 | 0 | 2081 | 165 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.87 | 99.36 | 0.51 | 157.5 | 0 | 53.6 | 0/0 | 0 | 2044 | 160 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.89 | 99.39 | 0.51 | 163.4 | 0 | 56.5 | 0/0 | 0 | 2109 | 158 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.89 | 99.38 | 0.64 | 186.3 | 0 | 65.8 | 0/0 | 0 | 2151 | 161 | 0 |
|
Chip 11
|
A
|
8 | 0 | 99.87 | 99.34 | 0.55 | 151.3 | 8 | 52.2 | 0/0 | 0 | 2081 | 160 | 0 |
|
Chip 12
|
A
|
4 | 0 | 99.87 | 99.28 | 0.59 | 140.8 | 4 | 48.6 | 0/0 | 0 | 2059 | 158 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.38 | 0.38 | 83.0 | 0 | 27.5 | 0/0 | 0 | 1948 | 152 | 0 |
|
Chip 14
|
A
|
6 | 0 | 99.85 | 99.07 | 0.92 | 90.1 | 6 | 30.2 | 0/0 | 0 | 1929 | 159 | 0 |
|
Chip 15
|
A
|
12 | 0 | 99.87 | 99.27 | 0.58 | 88.8 | 12 | 30.2 | 0/0 | 0 | 1945 | 160 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-07-10 | |
| TestTime | Test Time | 14:30 | |
| TestDuration | Duration | 1:56:48 | |
| pXar | pXar version | v2.2.5+45~gbf85984 | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 3 | |
| nWarnings | # Warnings | 2 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_tokenchain_count | Token Chain Length | 1 | |
| message_readback_count | Readback start marker | 2 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
