Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 22:29
Analysis date: 2016-05-25 22:29
Chip 9
Grading
| ROCGrade | Final ROC Grade | C | |
| NumberOfHotPixels | # Hot Pixels 150/50 | 0/0 | |
| NumberOfNonUniformColumns | # Non-Uniform Columns 150/50 | 0 | |
| NumberOfNonUniformEvents | # Non-Uniform ROC Events 150/50 | 0/0 | |
| NumberOfNonUniformColumnEvents | # Non-Uniform Col. Events 150/50 | 0/0 | |
| BadDoubleColumns | # Bad Double Columns | 0 | |
| BumpBondingDefects | # Bump Bonding Defects 150/50 | 0/0 | |
| Efficiency | Efficiency 50/120 | 99.85/99.07 | |
| EfficiencyFit | Efficiency Fit | chi2/ndf: 0.48, # points: 53 | |
| EfficiencyGrade | Efficiency Grade 50/120 | (A)/A | |
| BadDoubleColumnsGrade | Bad DC Grade | A | |
| HotPixelsGrade | Hot Pixels Grade 150/50 | A/A | |
| HitMapGrade | Hit Map Grade 150/50 | A/(A) | |
| ReadoutUniformityOverTimeGrade | ROC Read. Unif. Grade 150/50 | A/A | |
| ColumnReadoutUniformityOverTimeGrade | Column Read. Unif. Grade 150/50 | A/A | |
| ColumnUniformityGrade | Column Uniformity Grade | A | |
| NoiseGrade | Noise Grade | B |
Efficiency Interpolation: C9
| fitfunction | Fit | [0]-[1]*x^3 | |
| BadDoubleColumns | # Bad DCs (excluded from fit) | 0 | |
| Chi2NDF | chi2/ndf | 0.48 | |
| NumberFitPoints | # fit points | 53 | |
| p0 | p0 | 99.91 | |
| p1 | p1 | 4.90e-07 | |
| InterpolatedEfficiency50 | Interpol. Efficiency 50 | 99.85 | |
| InterpolatedEfficiency120 | Interpol. Efficiency 120 | 99.07 |

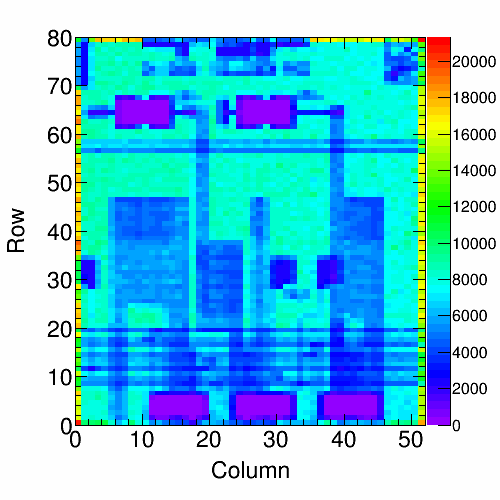

Hit Map 150: C9
| RealHitrate | Real Hitrate | 166.02 | MHz/cm2 |
| NumberOfDefectivePixels | # Defective Pixels | 0 |

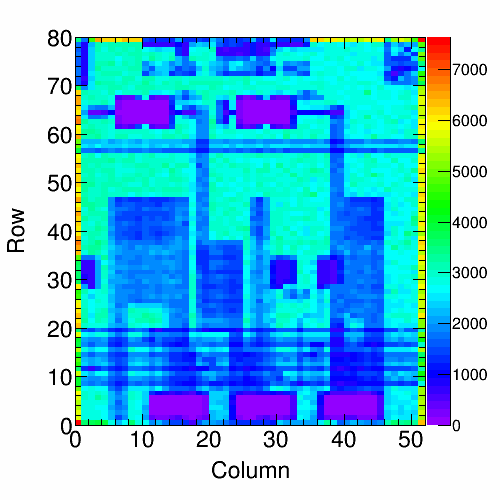

Hit Map 50: C9
| RealHitrate | Real Hitrate | 57.13 | MHz/cm2 |
| NumberOfDefectivePixels | # Defective Pixels | 0 |
Col. Read. Unif. 150: C9
Col. Read. Unif. 50: C9
Read. Unif. over Time 150: C9
Time unif. distribution 150: C9
| chi2/ndf | chi2/ndf | 11.12 | |
| sigma | σ | 186.03 | |
| sigma_th | σ_th | 165.02 | |
| expectation | Red curve (expected) | Poisson |
Read. Unif. over Time 50: C9
Time unif. distribution 50: C9
| chi2/ndf | chi2/ndf | 1.31 | |
| sigma | σ | 101.48 | |
| sigma_th | σ_th | 96.80 | |
| expectation | Red curve (expected) | Poisson |
Col. Uniformity per Event: C9 150
| mu | μ | 25.87 | |
| sigma | fit error of μ | 2.26 | |
| NumberOfNonUniformColumnEvents | Non uniform 10.000 event bins | 0 |
Col. Uniformity per Event: C9 50
| mu | μ | 26.23 | |
| sigma | fit error of μ | 2.29 | |
| NumberOfNonUniformColumnEvents | Non uniform 10.000 event bins | 0 |
S-Curve widths: Noise (e^{-}) C9 100
| N | N | 4108 | |
| mu | μ | 398.31 | |
| sigma | RMS | 95.20 | |
| threshold | thr | 3513.76 | |
| fit | fit | Gaussian | |
| fit_peak | μ fit | 381.19 | |
| fit_sigma | σ fit | 62.76 | |
| MeasuredHitrate | Measured hitrate: | 118.3 | |
| under | <= | 6.00 | |
| over | >= | 46.00 |
DC Efficiency Distribution: C9
| MeanEfficiency_50 | Mean Efficiency 50 MHz/cm2 | 99.86 | |
| MeanEfficiency_120 | Mean Efficiency 120 MHz/cm2 | 99.05 | |
| NBadDoubleColumns | Bad Double Columns | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
