Test Date: 2015-08-28 14:28
Analysis date: 2016-05-25 23:05
Analysis date: 2016-05-25 23:05
M2046 XRayHRQualification
Summary
| Module | Module | M2046 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 3 | |
| BumpBondingDefects | Bump Bonding Defects | 0 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

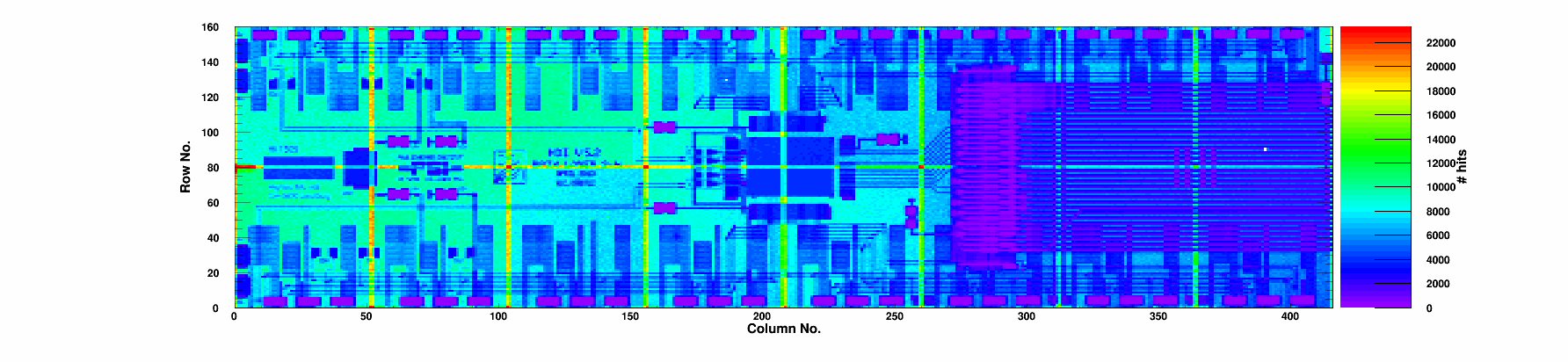

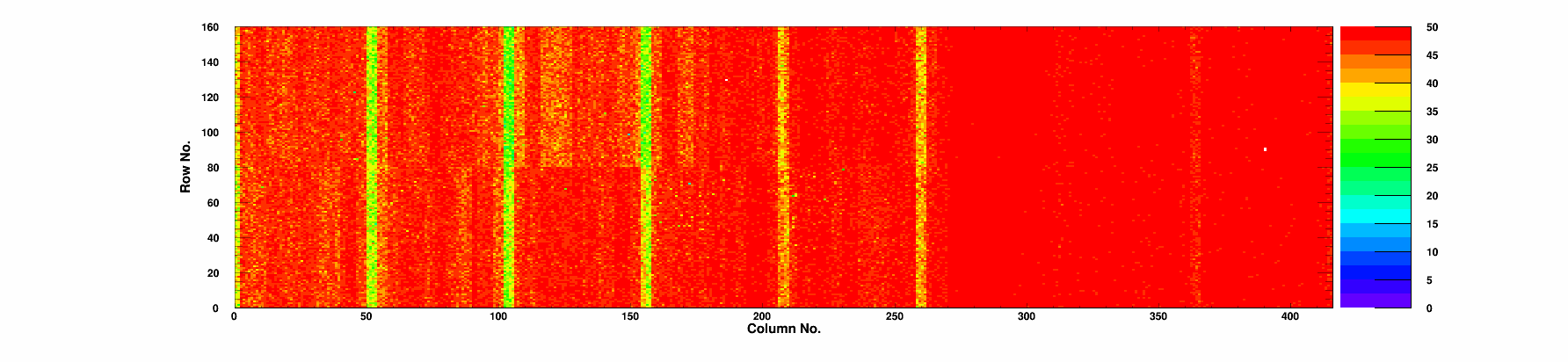

| Efficiency | Efficiency 50/120 | 99.86/99.27 | % |

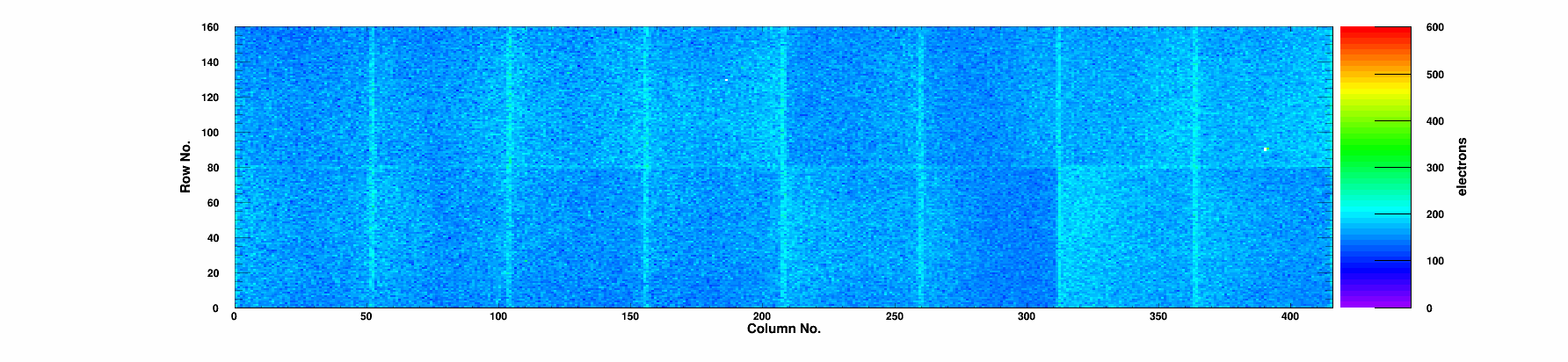

| Noise | Mean Noise | 162 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
2 | 0 | 99.86 | 99.30 | 0.69 | 93.4 | 0 | 31.3 | 0/0 | 0 | 1955 | 173 | 2 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.26 | 0.86 | 96.5 | 0 | 32.0 | 0/0 | 0 | 2038 | 170 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.16 | 0.45 | 81.6 | 0 | 26.5 | 0/0 | 0 | 1974 | 156 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.35 | 0.44 | 142.3 | 0 | 48.9 | 0/0 | 0 | 2128 | 158 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.87 | 99.27 | 0.47 | 174.1 | 0 | 60.1 | 0/0 | 0 | 2120 | 169 | 1 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.35 | 0.82 | 215.7 | 0 | 76.0 | 0/0 | 0 | 2291 | 168 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.35 | 0.81 | 193.5 | 0 | 67.9 | 0/0 | 0 | 2249 | 161 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.86 | 99.33 | 0.59 | 189.8 | 0 | 66.8 | 0/0 | 0 | 2223 | 155 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.33 | 0.49 | 192.7 | 0 | 66.5 | 0/0 | 0 | 2215 | 161 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.34 | 0.41 | 191.4 | 0 | 66.6 | 0/0 | 0 | 2249 | 161 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.89 | 99.33 | 0.48 | 171.8 | 0 | 60.3 | 0/0 | 0 | 2180 | 156 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.86 | 99.29 | 0.55 | 159.9 | 0 | 55.2 | 0/0 | 0 | 2164 | 158 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.84 | 99.29 | 0.98 | 154.5 | 0 | 53.0 | 0/0 | 0 | 2154 | 165 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.25 | 0.45 | 78.3 | 0 | 25.4 | 0/0 | 0 | 1987 | 152 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.83 | 99.09 | 0.87 | 90.5 | 0 | 29.8 | 0/0 | 0 | 2013 | 174 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.83 | 99.01 | 0.83 | 84.4 | 0 | 27.9 | 0/0 | 0 | 1990 | 162 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-28 | |
| TestTime | Test Time | 14:28 | |
| TestDuration | Duration | 1:18:11 | |
| pXar | pXar version | v2.5+57~g44d0777 | |
| DTB_FW | DTB FW | 4.4 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 4 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 2 | |
| channel_2_count | Channel 2 | 2 | |
| channel_3_count | Channel 3 | 0 | |
| message_readback_count | Readback start marker | 4 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
