Test Date: 2015-08-11 09:36
Analysis date: 2016-05-26 00:05
Analysis date: 2016-05-26 00:05
M2056 XRayHRQualification
Summary
| Module | Module | M2056 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 5 | |
| BumpBondingDefects | Bump Bonding Defects | 2 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.28 | % |

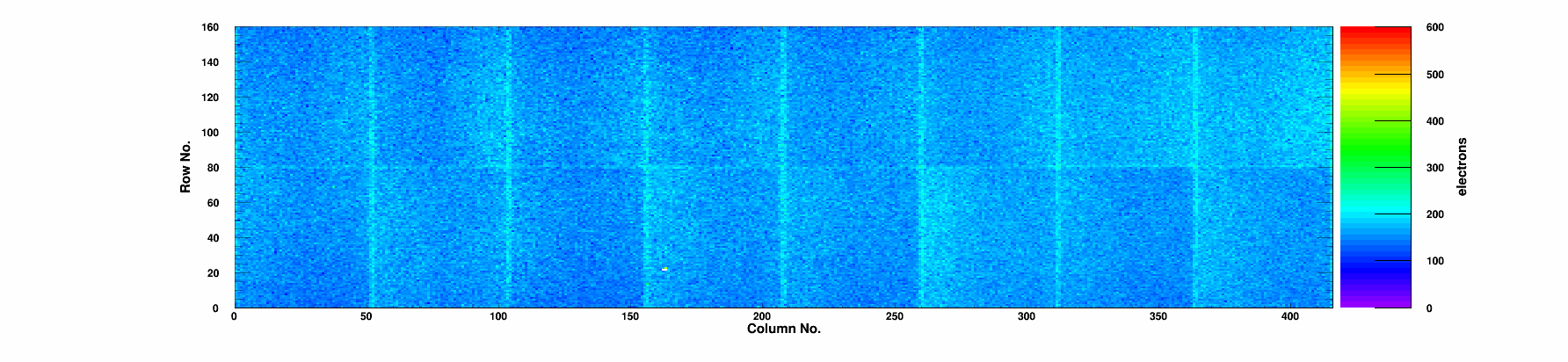

| Noise | Mean Noise | 161 | e- |
Summary ROCs

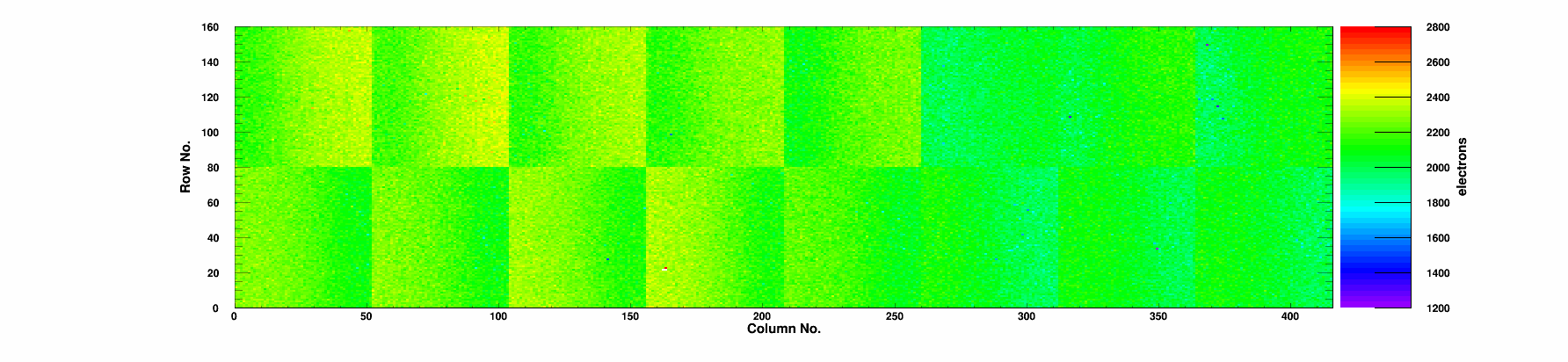

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.83 | 99.02 | 1.01 | 106.0 | 0 | 36.3 | 0/0 | 0 | 2057 | 174 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 99.29 | 0.8 | 112.5 | 0 | 38.3 | 0/0 | 0 | 2091 | 170 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.27 | 0.75 | 92.0 | 0 | 30.7 | 0/0 | 0 | 2022 | 164 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.38 | 0.43 | 160.8 | 0 | 56.2 | 0/0 | 0 | 2188 | 159 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.34 | 0.58 | 184.5 | 0 | 64.5 | 0/0 | 0 | 2229 | 160 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 99.36 | 0.61 | 196.1 | 0 | 70.3 | 0/0 | 0 | 2249 | 157 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.37 | 0.4 | 190.9 | 0 | 67.5 | 0/0 | 0 | 2282 | 159 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.35 | 0.54 | 211.3 | 0 | 74.0 | 0/0 | 0 | 2267 | 157 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.89 | 99.37 | 0.73 | 184.1 | 0 | 64.3 | 0/0 | 0 | 2199 | 154 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.37 | 0.6 | 173.3 | 0 | 60.3 | 0/0 | 0 | 2193 | 161 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.34 | 1.12 | 187.5 | 0 | 67.0 | 0/0 | 0 | 2228 | 152 | 0 |
|
Chip 11
|
A
|
3 | 0 | 99.87 | 99.34 | 2.24 | 174.6 | 0 | 61.2 | 0/0 | 0 | 2244 | 161 | 1 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.31 | 0.45 | 146.7 | 0 | 50.8 | 0/0 | 0 | 2154 | 159 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.08 | 1.19 | 97.8 | 0 | 32.7 | 0/0 | 0 | 2047 | 168 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.88 | 99.33 | 0.66 | 99.0 | 0 | 33.5 | 0/0 | 0 | 2056 | 157 | 0 |
|
Chip 15
|
A
|
2 | 0 | 99.81 | 99.04 | 0.77 | 98.4 | 2 | 33.6 | 0/0 | 0 | 2049 | 161 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-11 | |
| TestTime | Test Time | 09:36 | |
| TestDuration | Duration | 1:29:2 | |
| pXar | pXar version | v2.2.5+88~g694c14c | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 2 | |
| nWarnings | # Warnings | 2 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 3 | |
| message_tokenchain_count | Token Chain Length | 2 | |
| message_readback_count | Readback start marker | 1 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
