Test Date: 2015-08-11 09:36
Analysis date: 2016-05-26 00:23
Analysis date: 2016-05-26 00:23
M2059 XRayHRQualification
Summary
| Module | Module | M2059 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 22 | |
| BumpBondingDefects | Bump Bonding Defects | 14 | |
| NoisyPixels | Noisy Pixels | 8 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.30 | % |

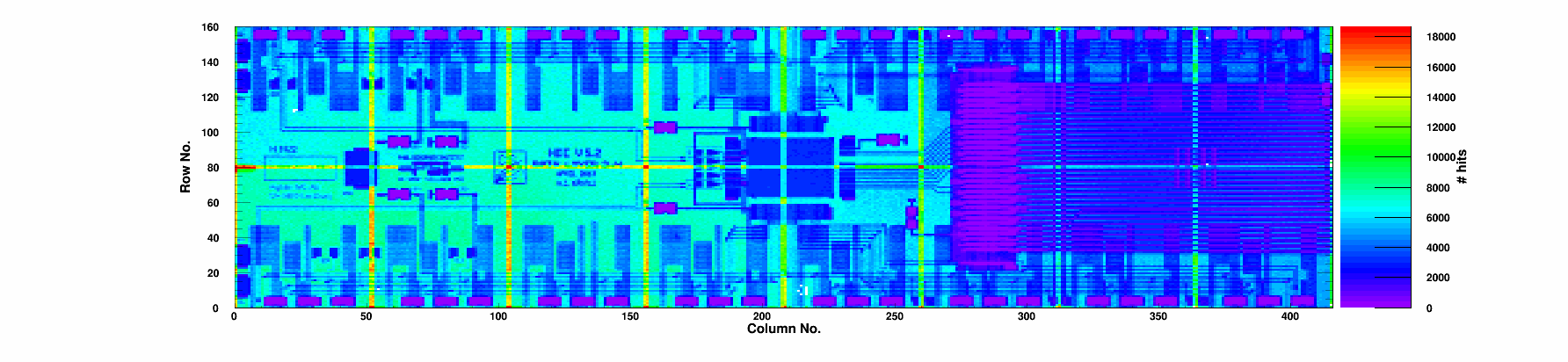

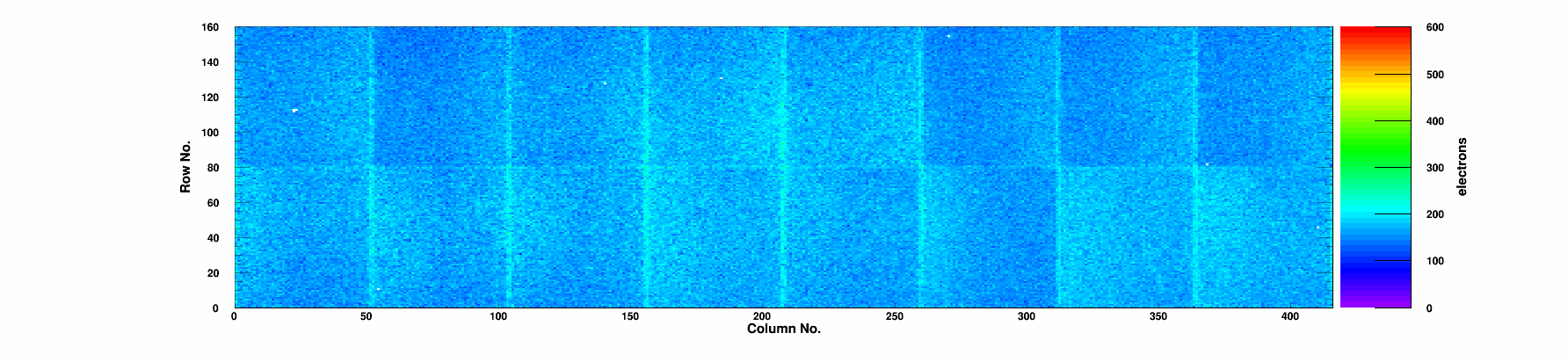

| Noise | Mean Noise | 166 | e- |
Summary ROCs

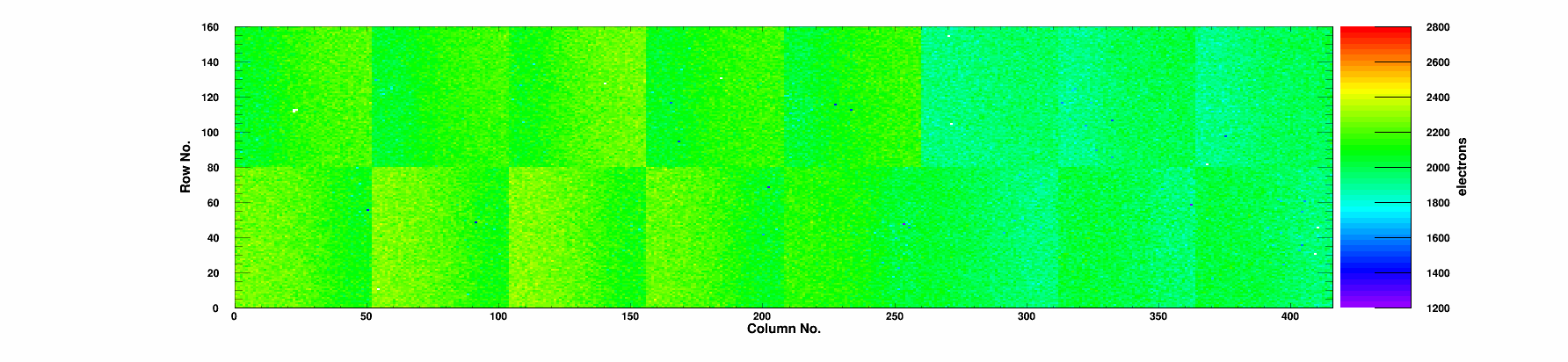

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
5 | 0 | 99.88 | 99.22 | 0.3 | 63.5 | 4 | 20.9 | 0/0 | 0 | 1921 | 159 | 1 |
|
Chip 1
|
A
|
0 | 0 | 99.86 | 99.31 | 0.3 | 66.3 | 0 | 21.6 | 0/0 | 0 | 1966 | 160 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.85 | 99.35 | 0.54 | 62.5 | 0 | 20.4 | 0/0 | 0 | 1910 | 157 | 1 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.34 | 1.01 | 124.8 | 0 | 42.6 | 0/0 | 0 | 2105 | 171 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.83 | 99.03 | 1.06 | 133.0 | 0 | 45.4 | 0/0 | 0 | 2081 | 172 | 1 |
|
Chip 5
|
A
|
0 | 0 | 99.90 | 99.38 | 0.53 | 150.0 | 0 | 52.7 | 0/0 | 0 | 2178 | 163 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.35 | 0.55 | 135.2 | 0 | 47.0 | 0/0 | 0 | 2115 | 155 | 0 |
|
Chip 7
|
A
|
3 | 0 | 99.86 | 99.34 | 0.51 | 139.4 | 0 | 48.5 | 0/0 | 0 | 2028 | 162 | 3 |
|
Chip 8
|
A
|
0 | 0 | 99.89 | 99.31 | 0.61 | 160.5 | 0 | 55.5 | 0/0 | 0 | 2183 | 167 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.88 | 99.36 | 0.93 | 155.5 | 0 | 54.2 | 0/0 | 0 | 2158 | 168 | 1 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.35 | 0.53 | 162.0 | 0 | 56.9 | 0/0 | 0 | 2200 | 169 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.34 | 0.71 | 140.7 | 0 | 48.2 | 0/0 | 0 | 2157 | 174 | 0 |
|
Chip 12
|
A
|
8 | 0 | 99.89 | 99.32 | 0.67 | 120.7 | 8 | 41.1 | 0/0 | 0 | 2096 | 167 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.88 | 99.38 | 0.32 | 70.9 | 0 | 23.3 | 0/0 | 0 | 1981 | 163 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.85 | 99.06 | 0.83 | 75.9 | 1 | 25.0 | 0/0 | 0 | 1990 | 174 | 0 |
|
Chip 15
|
A
|
2 | 0 | 99.88 | 99.30 | 0.72 | 76.5 | 1 | 25.4 | 0/0 | 0 | 1950 | 173 | 1 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-11 | |
| TestTime | Test Time | 09:36 | |
| TestDuration | Duration | 1:29:2 | |
| pXar | pXar version | v2.2.5+88~g694c14c | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 2 | |
| nErrors | # Errors | 36 | |
| nWarnings | # Warnings | 46 | |
| channel_0_count | Channel 0 | 9 | |
| channel_1_count | Channel 1 | 24 | |
| channel_2_count | Channel 2 | 23 | |
| channel_3_count | Channel 3 | 26 | |
| message_eventid_count | Event ID mismatch | 7 | |
| message_missingevents_count | Missing Event criticals | 2 | |
| message_tokenchain_count | Token Chain Length | 29 | |
| message_readback_count | Readback start marker | 46 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
