Test Date: 2015-08-11 12:52
Analysis date: 2016-05-26 00:29
Analysis date: 2016-05-26 00:29
M2061 XRayHRQualification
Summary
| Module | Module | M2061 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 12 | |
| BumpBondingDefects | Bump Bonding Defects | 7 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 1 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.26 | % |

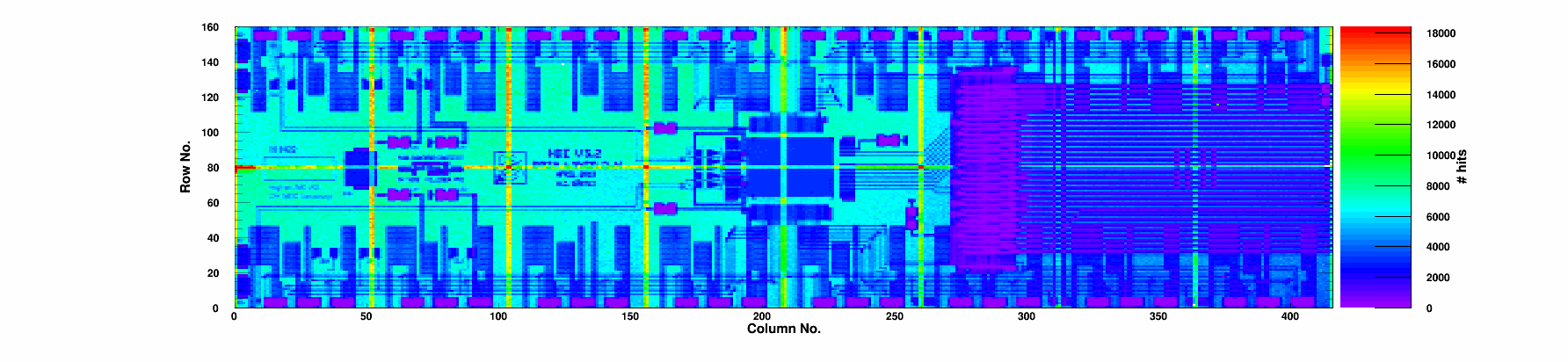

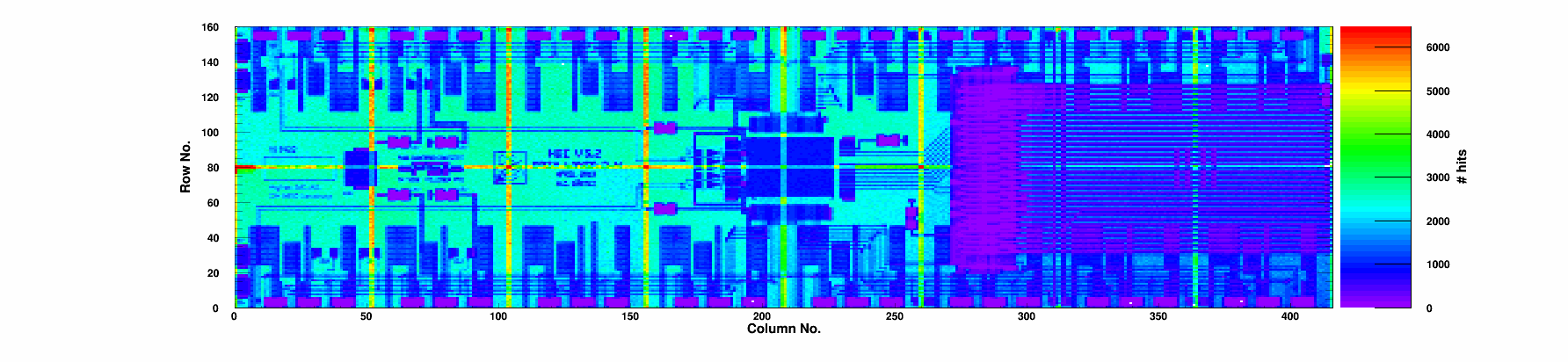

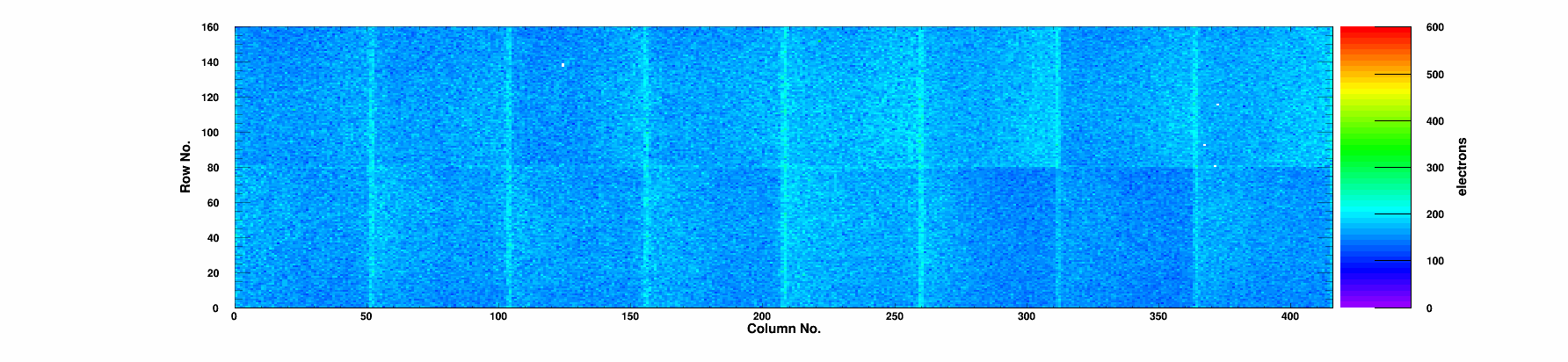

| Noise | Mean Noise | 163 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
9 | 0 | 99.85 | 99.15 | 0.53 | 78.8 | 5 | 26.8 | 0/0 | 0 | 1953 | 172 | 1 |
|
Chip 1
|
A
|
0 | 0 | 99.82 | 98.95 | 0.83 | 82.1 | 0 | 27.6 | 0/0 | 0 | 1967 | 165 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.31 | 0.73 | 73.0 | 0 | 24.3 | 0/0 | 0 | 1948 | 171 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.90 | 99.37 | 0.45 | 134.0 | 0 | 46.3 | 0/0 | 0 | 2143 | 175 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.29 | 0.61 | 138.5 | 0 | 47.7 | 0/0 | 0 | 2123 | 165 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.87 | 99.36 | 0.62 | 155.7 | 0 | 55.0 | 0/0 | 0 | 2135 | 160 | 1 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.30 | 0.61 | 144.5 | 0 | 50.1 | 0/0 | 0 | 2135 | 162 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.88 | 99.26 | 0.59 | 144.0 | 1 | 49.6 | 0/0 | 0 | 2116 | 159 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.36 | 0.3 | 145.1 | 0 | 50.1 | 0/0 | 0 | 2140 | 161 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.89 | 99.34 | 0.51 | 139.0 | 0 | 48.0 | 0/0 | 0 | 2109 | 162 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.37 | 0.8 | 141.0 | 0 | 49.2 | 0/0 | 0 | 2132 | 161 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.29 | 0.68 | 125.3 | 0 | 42.9 | 0/0 | 0 | 2097 | 162 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.32 | 0.67 | 117.0 | 0 | 40.1 | 0/0 | 0 | 2083 | 170 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.04 | 0.28 | 61.9 | 0 | 20.5 | 0/0 | 0 | 1962 | 156 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.87 | 99.32 | 0.36 | 65.1 | 1 | 21.5 | 0/0 | 0 | 1929 | 152 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.87 | 99.20 | 0.3 | 65.5 | 0 | 22.1 | 0/0 | 0 | 1950 | 159 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-11 | |
| TestTime | Test Time | 12:52 | |
| TestDuration | Duration | 1:26:46 | |
| pXar | pXar version | v2.2.5+88~g694c14c | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 5 | |
| nWarnings | # Warnings | 7 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 11 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_tokenchain_count | Token Chain Length | 3 | |
| message_readback_count | Readback start marker | 6 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
