Test Date: 2015-08-11 12:52
Analysis date: 2016-05-26 00:47
Analysis date: 2016-05-26 00:47
M2064 XRayHRQualification
Summary
| Module | Module | M2064 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 20 | |
| BumpBondingDefects | Bump Bonding Defects | 12 | |
| NoisyPixels | Noisy Pixels | 6 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

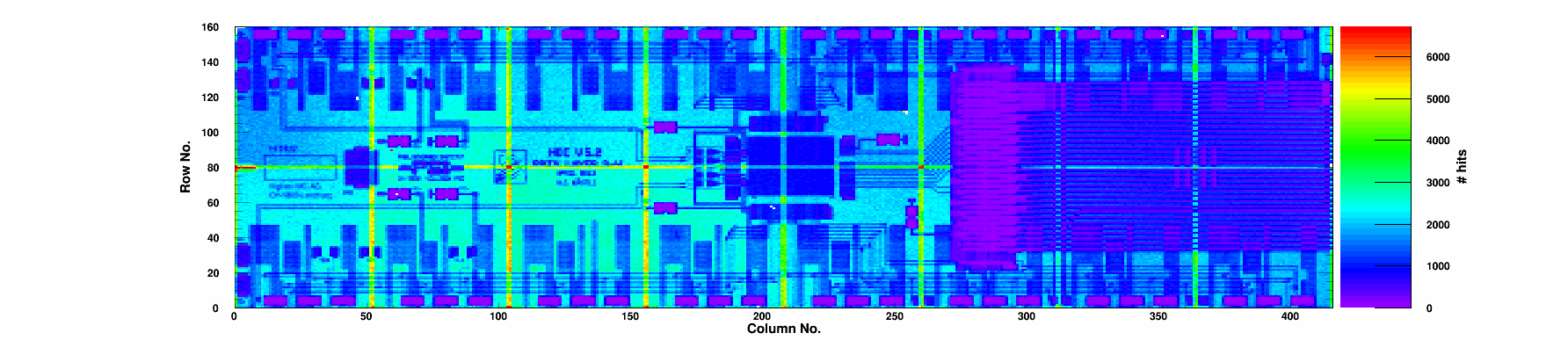

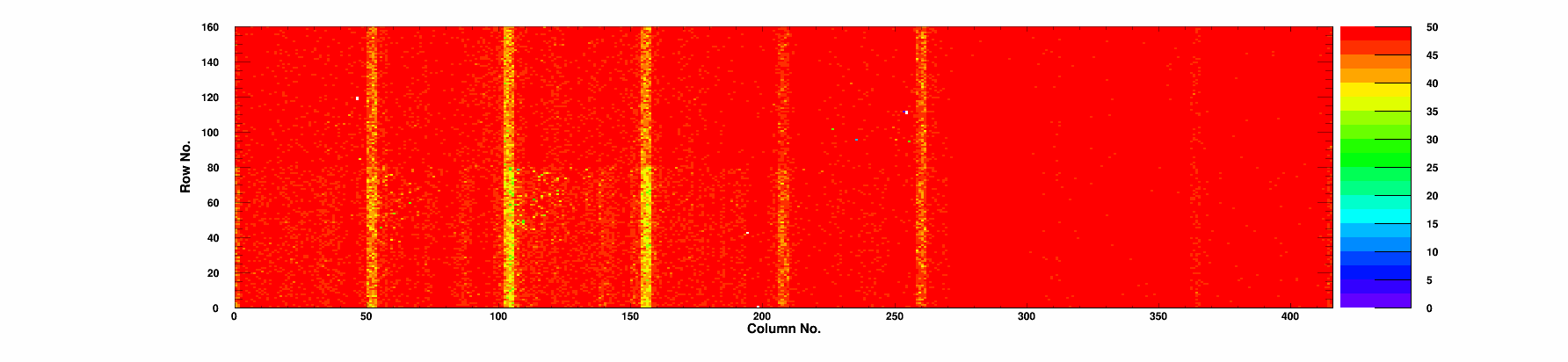

| Efficiency | Efficiency 50/120 | 99.86/99.23 | % |

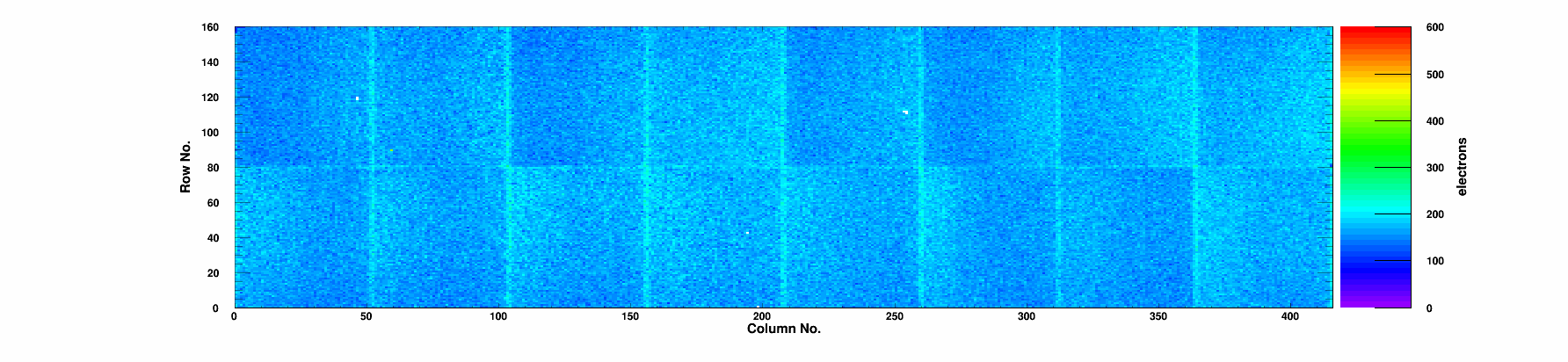

| Noise | Mean Noise | 166 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
2 | 0 | 99.86 | 99.05 | 0.47 | 69.9 | 2 | 23.5 | 0/0 | 0 | 1948 | 173 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.83 | 99.01 | 0.64 | 70.6 | 0 | 23.4 | 0/0 | 0 | 1954 | 171 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.82 | 99.00 | 0.69 | 63.3 | 0 | 20.9 | 0/0 | 0 | 1953 | 162 | 0 |
|
Chip 3
|
A
|
3 | 0 | 99.86 | 99.26 | 0.83 | 106.2 | 0 | 36.4 | 0/0 | 0 | 1984 | 164 | 2 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.36 | 0.49 | 118.8 | 0 | 40.5 | 0/0 | 0 | 2073 | 174 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.34 | 0.64 | 136.9 | 0 | 47.5 | 0/0 | 0 | 2112 | 159 | 0 |
|
Chip 6
|
A
|
2 | 0 | 99.87 | 99.32 | 0.66 | 136.9 | 1 | 47.2 | 0/0 | 0 | 2122 | 166 | 1 |
|
Chip 7
|
A
|
9 | 0 | 99.88 | 99.33 | 0.4 | 117.0 | 7 | 39.4 | 0/0 | 0 | 1982 | 155 | 2 |
|
Chip 8
|
A
|
0 | 0 | 99.89 | 99.35 | 0.5 | 141.6 | 0 | 48.5 | 0/0 | 0 | 2113 | 164 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.34 | 0.86 | 147.4 | 0 | 51.0 | 0/0 | 0 | 2141 | 164 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.85 | 99.28 | 1.61 | 164.7 | 0 | 57.5 | 0/0 | 0 | 2178 | 169 | 0 |
|
Chip 11
|
A
|
4 | 0 | 99.87 | 99.27 | 0.69 | 139.3 | 2 | 47.9 | 0/0 | 0 | 2099 | 172 | 1 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.33 | 1.12 | 120.5 | 0 | 41.5 | 0/0 | 0 | 2073 | 168 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.35 | 0.46 | 73.7 | 0 | 24.5 | 0/0 | 0 | 1971 | 165 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.87 | 99.19 | 0.51 | 76.3 | 0 | 25.6 | 0/0 | 0 | 1973 | 162 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.82 | 98.95 | 0.85 | 79.7 | 0 | 27.1 | 0/0 | 0 | 1974 | 171 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-11 | |
| TestTime | Test Time | 12:52 | |
| TestDuration | Duration | 1:26:46 | |
| pXar | pXar version | v2.2.5+88~g694c14c | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 7 | |
| nWarnings | # Warnings | 4 | |
| channel_0_count | Channel 0 | 1 | |
| channel_1_count | Channel 1 | 2 | |
| channel_2_count | Channel 2 | 2 | |
| channel_3_count | Channel 3 | 6 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_tokenchain_count | Token Chain Length | 5 | |
| message_readback_count | Readback start marker | 4 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
