Test Date: 2015-08-11 15:16
Analysis date: 2016-05-26 00:59
Analysis date: 2016-05-26 00:59
M2066 XRayHRQualification
Summary
| Module | Module | M2066 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 75 | |
| BumpBondingDefects | Bump Bonding Defects | 70 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.30 | % |

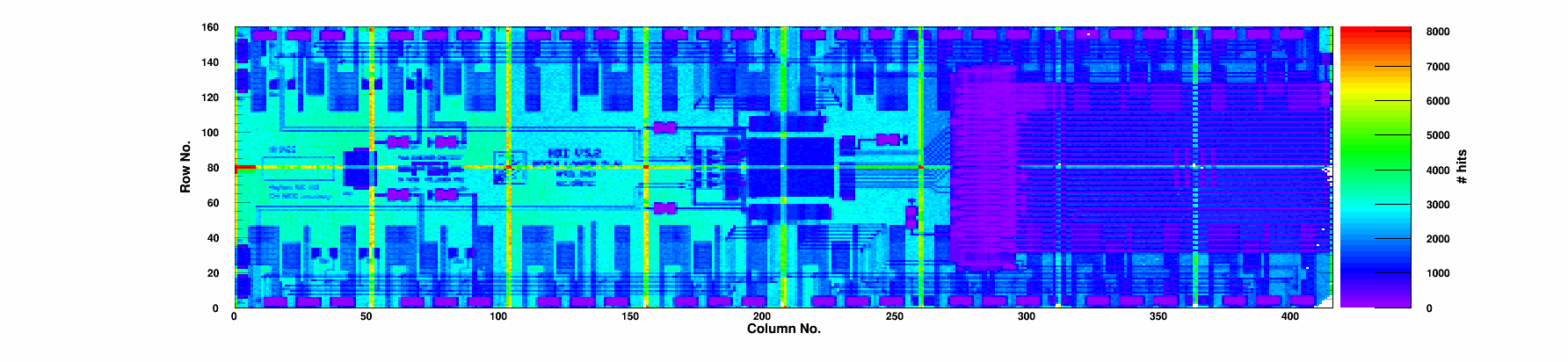

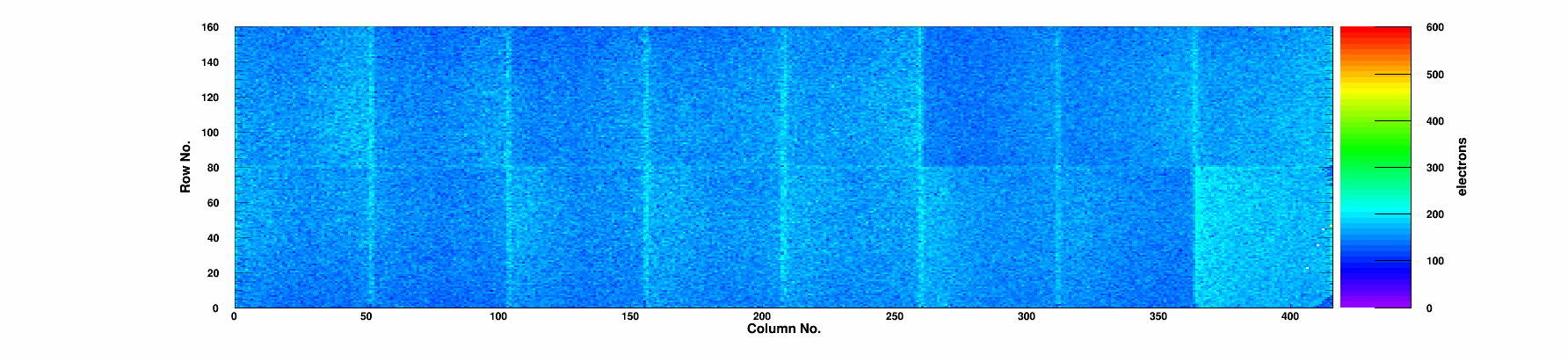

| Noise | Mean Noise | 155 | e- |
Summary ROCs

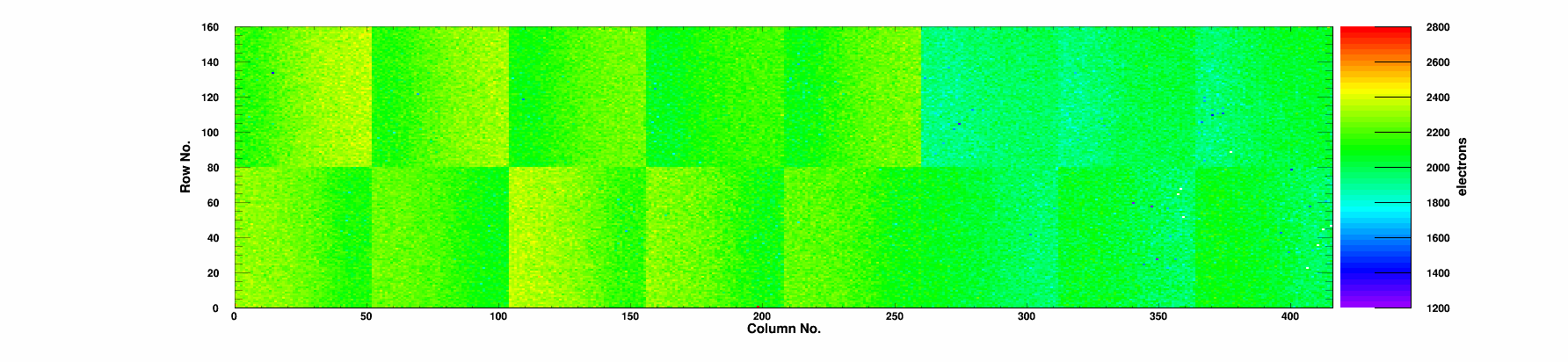

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
2 | 0 | 99.87 | 99.35 | 0.48 | 82.8 | 2 | 27.3 | 0/0 | 0 | 2000 | 163 | 0 |
|
Chip 1
|
A
|
3 | 0 | 99.88 | 99.30 | 0.68 | 82.2 | 3 | 26.8 | 0/0 | 0 | 1981 | 153 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.28 | 0.5 | 70.1 | 0 | 22.2 | 0/0 | 0 | 1951 | 144 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.29 | 0.64 | 146.1 | 0 | 50.3 | 0/0 | 0 | 2177 | 160 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.88 | 99.34 | 0.58 | 143.2 | 1 | 49.1 | 0/0 | 0 | 2128 | 153 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.34 | 0.61 | 165.3 | 0 | 57.9 | 0/0 | 0 | 2183 | 148 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.88 | 99.37 | 0.55 | 174.5 | 1 | 61.0 | 0/0 | 0 | 2225 | 150 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.35 | 0.69 | 182.3 | 0 | 64.0 | 0/0 | 0 | 2259 | 158 | 0 |
|
Chip 8
|
A
|
2 | 0 | 99.87 | 99.33 | 0.63 | 185.8 | 2 | 65.0 | 0/0 | 0 | 2218 | 153 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.89 | 99.32 | 0.52 | 165.6 | 0 | 57.5 | 0/0 | 0 | 2172 | 147 | 0 |
|
Chip 10
|
A
|
5 | 0 | 99.88 | 99.41 | 0.35 | 187.5 | 5 | 66.1 | 0/0 | 0 | 2256 | 154 | 0 |
|
Chip 11
|
A
|
3 | 0 | 99.87 | 99.28 | 1.21 | 163.4 | 2 | 56.4 | 0/0 | 0 | 2195 | 157 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.32 | 0.67 | 152.7 | 0 | 52.5 | 0/0 | 0 | 2169 | 160 | 0 |
|
Chip 13
|
A
|
3 | 0 | 99.83 | 98.99 | 0.64 | 83.1 | 3 | 27.1 | 0/0 | 0 | 2012 | 157 | 0 |
|
Chip 14
|
A
|
3 | 0 | 99.87 | 99.30 | 0.78 | 85.8 | 3 | 28.1 | 0/0 | 0 | 2013 | 150 | 0 |
|
Chip 15
|
B
|
52 | 0 | 99.84 | 99.24 | 2.9 | 91.8 | 48 | 30.8 | 0/0 | 0 | 1921 | 178 | 3 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-11 | |
| TestTime | Test Time | 15:16 | |
| TestDuration | Duration | 1:28:57 | |
| pXar | pXar version | v2.2.5+88~g694c14c | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 6 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 6 | |
| message_eventid_count | Event ID mismatch | 4 | |
| message_tokenchain_count | Token Chain Length | 2 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
