Test Date: 2015-08-24 08:08
Analysis date: 2016-05-26 01:11
Analysis date: 2016-05-26 01:11
M2068 XRayHRQualification
Summary
| Module | Module | M2068 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 40 | |
| BumpBondingDefects | Bump Bonding Defects | 36 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.23 | % |

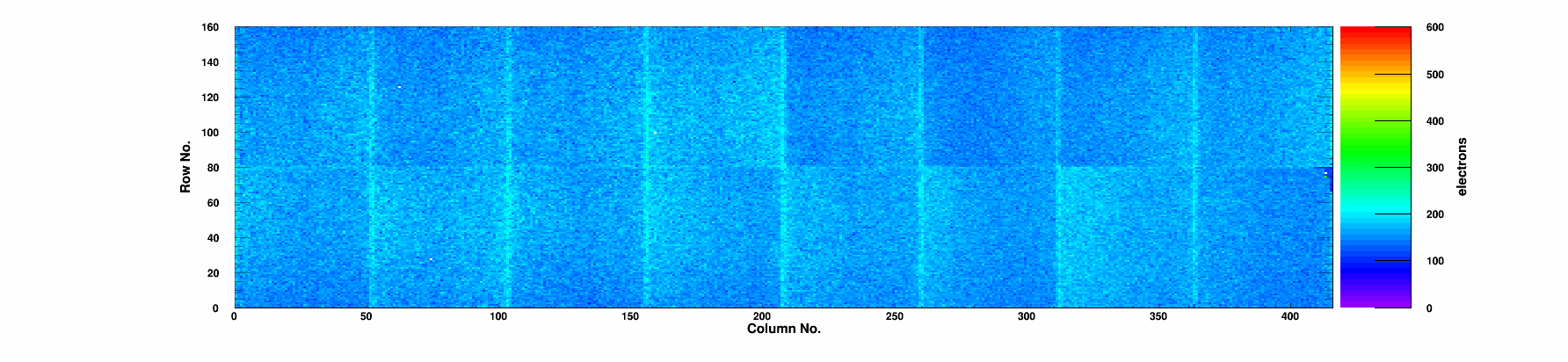

| Noise | Mean Noise | 161 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.82 | 99.23 | 1.0 | 77.2 | 1 | 26.4 | 0/0 | 0 | 1992 | 162 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.31 | 0.52 | 75.6 | 0 | 25.5 | 0/0 | 0 | 1957 | 157 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.25 | 0.35 | 68.6 | 0 | 22.9 | 0/0 | 0 | 1942 | 151 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.87 | 99.33 | 0.64 | 117.2 | 0 | 40.5 | 0/0 | 0 | 2068 | 157 | 0 |
|
Chip 4
|
A
|
2 | 0 | 99.86 | 99.30 | 2.27 | 138.6 | 0 | 48.1 | 0/0 | 0 | 2119 | 171 | 1 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.38 | 0.54 | 158.6 | 0 | 56.1 | 0/0 | 0 | 2171 | 161 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.34 | 0.63 | 154.0 | 0 | 53.7 | 0/0 | 0 | 2164 | 158 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.38 | 0.39 | 164.7 | 0 | 57.3 | 0/0 | 0 | 2187 | 160 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.32 | 0.69 | 148.3 | 0 | 51.7 | 0/0 | 0 | 2141 | 160 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.32 | 0.54 | 151.2 | 0 | 52.3 | 0/0 | 0 | 2152 | 168 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.02 | 0.73 | 146.2 | 0 | 51.2 | 0/0 | 0 | 2125 | 161 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.23 | 0.9 | 126.0 | 0 | 43.2 | 0/0 | 0 | 2086 | 165 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.84 | 99.05 | 1.1 | 113.2 | 0 | 38.8 | 0/0 | 0 | 2053 | 164 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.02 | 0.63 | 62.6 | 0 | 20.7 | 0/0 | 0 | 1935 | 160 | 0 |
|
Chip 14
|
A
|
3 | 0 | 99.89 | 99.28 | 0.37 | 68.4 | 3 | 22.8 | 0/0 | 0 | 1954 | 170 | 0 |
|
Chip 15
|
A
|
33 | 0 | 99.84 | 98.97 | 0.35 | 64.6 | 32 | 21.9 | 0/0 | 0 | 1909 | 154 | 1 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-24 | |
| TestTime | Test Time | 08:08 | |
| TestDuration | Duration | 1:29:5 | |
| pXar | pXar version | prod-01+80~g16e673b | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 1 | |
| nErrors | # Errors | 10 | |
| nWarnings | # Warnings | 5 | |
| channel_0_count | Channel 0 | 3 | |
| channel_1_count | Channel 1 | 7 | |
| channel_2_count | Channel 2 | 2 | |
| channel_3_count | Channel 3 | 3 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_missingevents_count | Missing Event criticals | 1 | |
| message_tokenchain_count | Token Chain Length | 8 | |
| message_readback_count | Readback start marker | 5 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
