Test Date: 2015-08-13 17:13
Analysis date: 2016-05-26 01:13
Analysis date: 2016-05-26 01:13
M2069 XRayHRQualification
Summary
| Module | Module | M2069 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 3 | |
| BumpBondingDefects | Bump Bonding Defects | 1 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.25 | % |
| Noise | Mean Noise | 160 | e- |

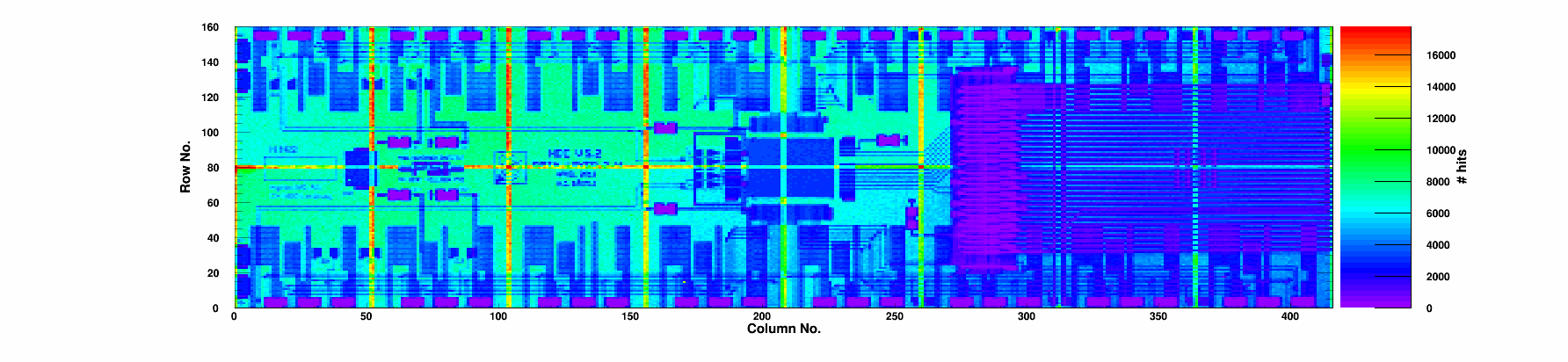

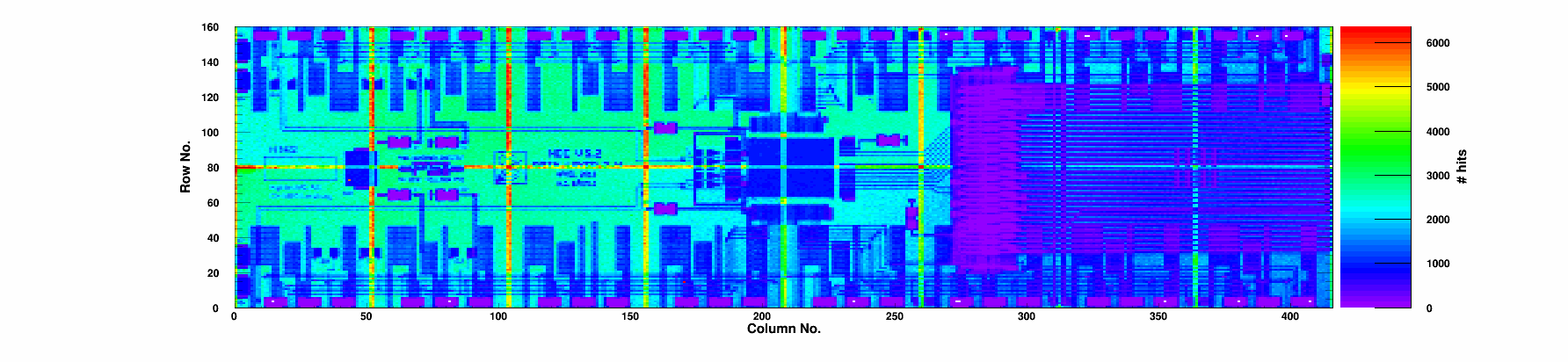

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.86 | 99.03 | 0.46 | 69.4 | 1 | 23.3 | 0/0 | 0 | 1935 | 155 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.88 | 99.37 | 0.37 | 76.3 | 0 | 25.5 | 0/0 | 0 | 1969 | 166 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.28 | 0.4 | 77.4 | 0 | 25.8 | 0/0 | 0 | 1971 | 172 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.85 | 99.24 | 1.16 | 135.7 | 0 | 47.0 | 0/0 | 0 | 2107 | 171 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.30 | 0.53 | 143.4 | 0 | 49.7 | 0/0 | 0 | 2126 | 165 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.37 | 0.51 | 163.5 | 0 | 57.9 | 0/0 | 0 | 2196 | 165 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.90 | 99.32 | 0.46 | 156.7 | 0 | 54.4 | 0/0 | 0 | 2129 | 157 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.35 | 0.44 | 145.7 | 0 | 50.2 | 0/0 | 0 | 2135 | 154 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.86 | 99.04 | 0.71 | 148.8 | 0 | 51.8 | 0/0 | 0 | 2145 | 157 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.86 | 99.32 | 0.73 | 144.4 | 0 | 50.3 | 0/0 | 0 | 2134 | 157 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.36 | 0.56 | 152.3 | 0 | 53.5 | 0/0 | 0 | 2169 | 159 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.40 | 0.64 | 114.2 | 0 | 39.3 | 0/0 | 0 | 2058 | 154 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.85 | 99.16 | 0.69 | 113.0 | 0 | 38.8 | 0/0 | 0 | 2056 | 165 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.87 | 99.40 | 0.28 | 59.3 | 0 | 19.4 | 0/0 | 0 | 1961 | 153 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.85 | 99.09 | 0.5 | 64.1 | 0 | 21.0 | 0/0 | 0 | 1928 | 156 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.84 | 98.93 | 0.45 | 67.3 | 0 | 22.6 | 0/0 | 0 | 1949 | 159 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-13 | |
| TestTime | Test Time | 17:13 | |
| TestDuration | Duration | 1:26:51 | |
| pXar | pXar version | v2.2.5+88~g694c14c | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 3 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 3 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_tokenchain_count | Token Chain Length | 1 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
