Test Date: 2015-08-18 09:38
Analysis date: 2016-05-26 01:47
Analysis date: 2016-05-26 01:47
M2074 XRayHRQualification
Summary
| Module | Module | M2074 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 26 | |
| BumpBondingDefects | Bump Bonding Defects | 23 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

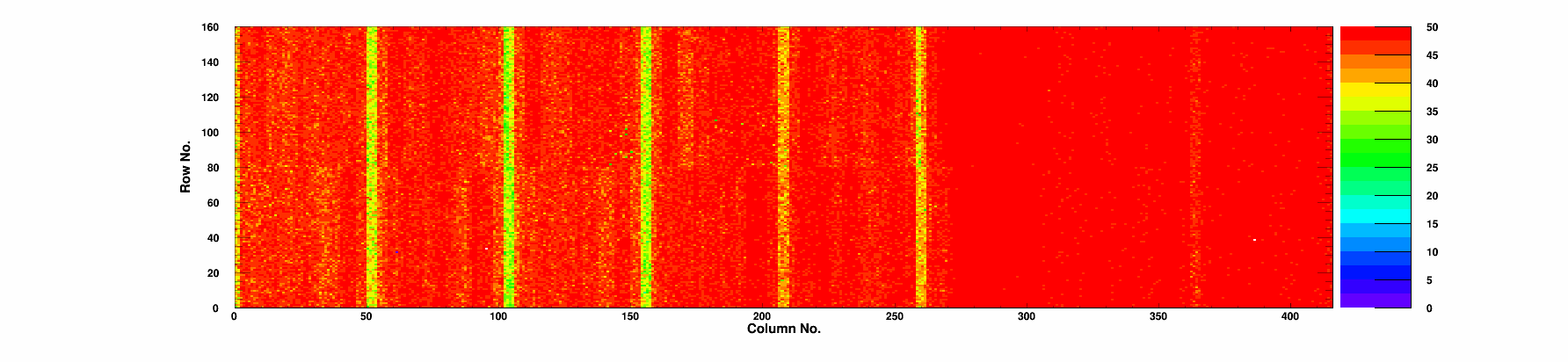

| Efficiency | Efficiency 50/120 | 99.86/99.29 | % |
| Noise | Mean Noise | 159 | e- |
Summary ROCs

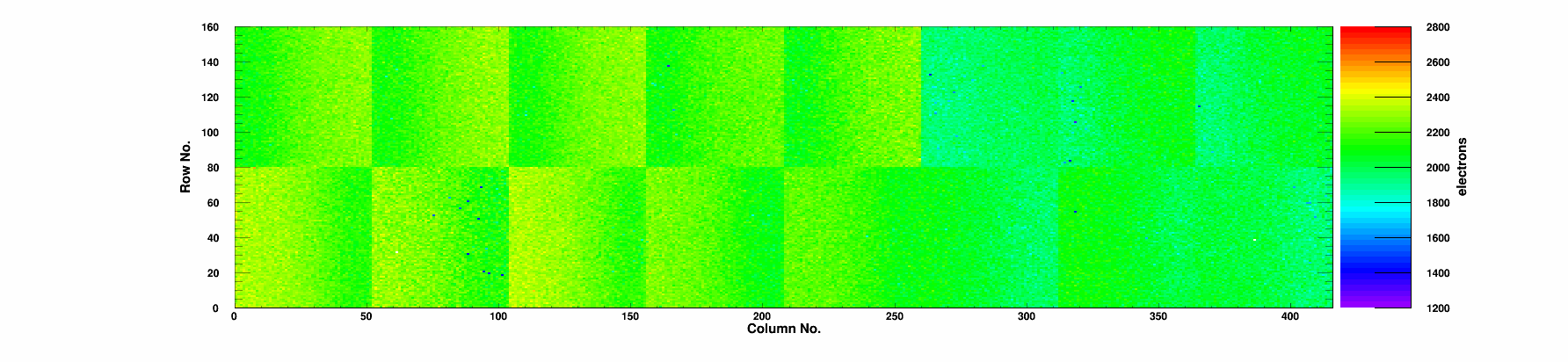

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
9 | 0 | 99.84 | 99.03 | 0.7 | 87.7 | 9 | 29.3 | 0/0 | 0 | 2011 | 164 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.32 | 0.67 | 97.4 | 0 | 32.4 | 0/0 | 0 | 2029 | 173 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.29 | 0.48 | 79.4 | 0 | 25.9 | 0/0 | 0 | 1966 | 150 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.30 | 0.6 | 164.9 | 0 | 56.6 | 0/0 | 0 | 2186 | 168 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.32 | 1.05 | 167.2 | 0 | 57.7 | 0/0 | 0 | 2177 | 161 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.40 | 0.81 | 177.0 | 0 | 62.5 | 0/0 | 0 | 2211 | 148 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.37 | 0.4 | 181.5 | 0 | 63.4 | 0/0 | 0 | 2213 | 155 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.89 | 99.34 | 0.58 | 184.2 | 0 | 64.2 | 0/0 | 0 | 2204 | 149 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.87 | 99.40 | 0.5 | 191.4 | 0 | 67.0 | 0/0 | 0 | 2247 | 155 | 0 |
|
Chip 9
|
A
|
2 | 0 | 99.86 | 99.34 | 0.41 | 179.2 | 0 | 62.5 | 0/0 | 0 | 2213 | 153 | 1 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.37 | 0.69 | 190.3 | 0 | 67.3 | 0/0 | 0 | 2250 | 155 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.33 | 0.45 | 157.8 | 0 | 54.6 | 0/0 | 0 | 2181 | 158 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.87 | 99.29 | 0.55 | 147.4 | 1 | 50.8 | 0/0 | 0 | 2162 | 160 | 0 |
|
Chip 13
|
A
|
3 | 0 | 99.86 | 99.31 | 0.42 | 88.7 | 3 | 29.1 | 0/0 | 0 | 2022 | 160 | 0 |
|
Chip 14
|
A
|
2 | 0 | 99.84 | 99.26 | 0.66 | 98.8 | 2 | 32.8 | 0/0 | 0 | 2052 | 168 | 0 |
|
Chip 15
|
A
|
9 | 0 | 99.85 | 99.00 | 0.72 | 84.5 | 8 | 28.1 | 0/0 | 0 | 1956 | 161 | 1 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-18 | |
| TestTime | Test Time | 09:38 | |
| TestDuration | Duration | 0:29:31 | |
| pXar | pXar version | v2.2.5+88~g694c14c | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 1 | |
| nWarnings | # Warnings | 1 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 2 | |
| message_tokenchain_count | Token Chain Length | 1 | |
| message_readback_count | Readback start marker | 1 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
