Test Date: 2015-08-28 14:28
Analysis date: 2016-05-26 02:20
Analysis date: 2016-05-26 02:20
M2080 XRayHRQualification
Summary
| Module | Module | M2080 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 6 | |
| BumpBondingDefects | Bump Bonding Defects | 2 | |
| NoisyPixels | Noisy Pixels | 4 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

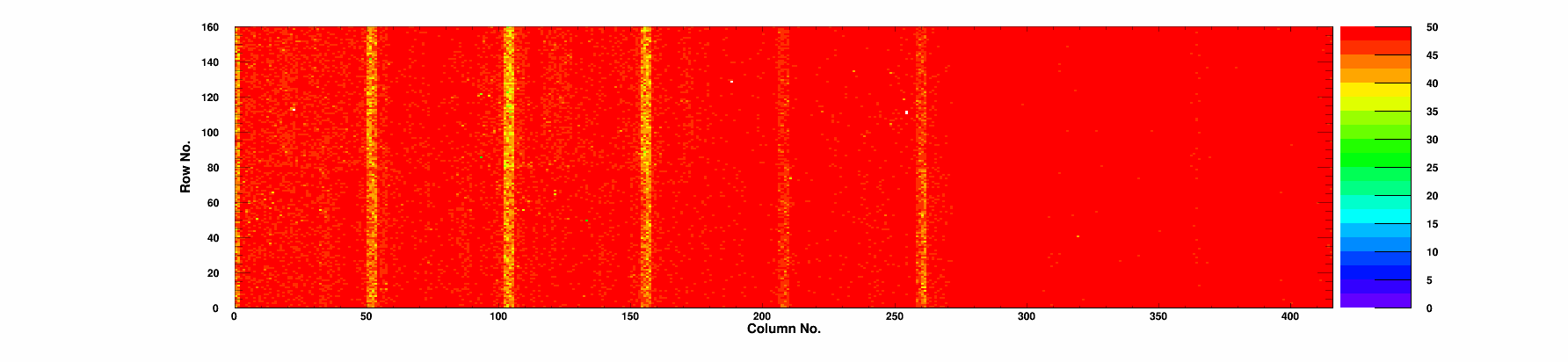

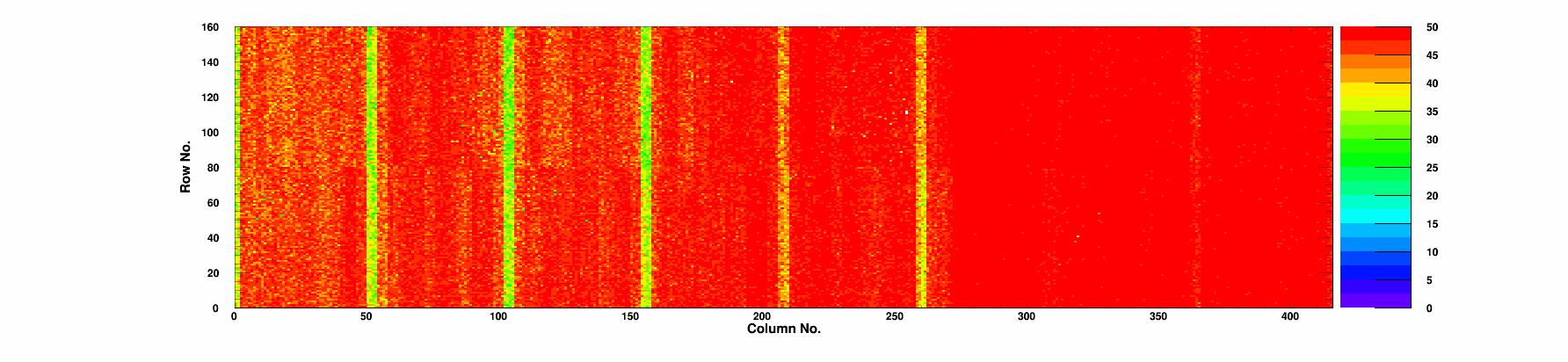

| Efficiency | Efficiency 50/120 | 99.86/99.28 | % |
| Noise | Mean Noise | 166 | e- |
Summary ROCs

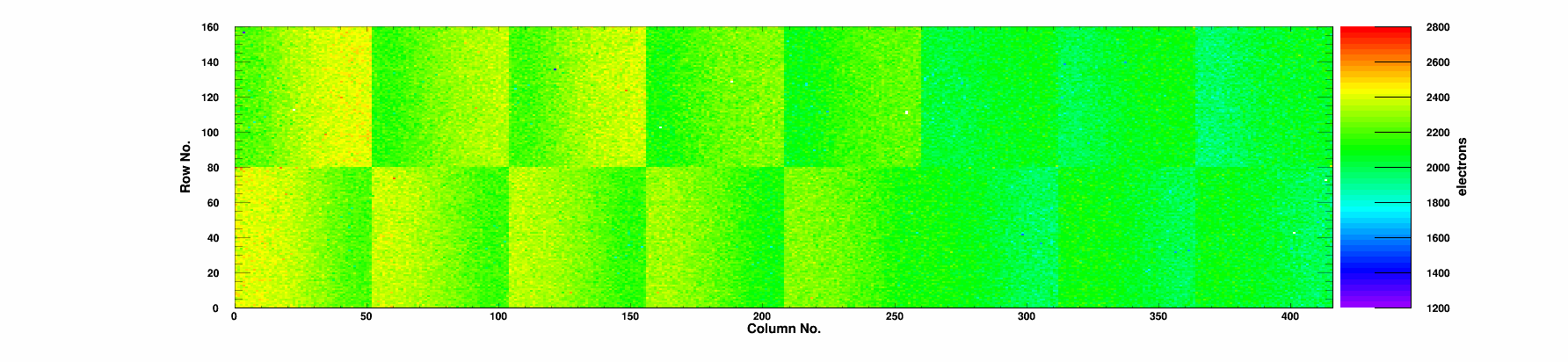

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.82 | 99.05 | 1.19 | 88.1 | 0 | 29.5 | 0/0 | 0 | 2019 | 177 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.24 | 0.86 | 88.0 | 0 | 29.1 | 0/0 | 0 | 2048 | 159 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.31 | 0.5 | 87.0 | 0 | 28.8 | 0/0 | 0 | 2050 | 167 | 0 |
|
Chip 3
|
A
|
2 | 0 | 99.85 | 99.28 | 1.33 | 141.8 | 0 | 48.7 | 0/0 | 0 | 2092 | 159 | 2 |
|
Chip 4
|
A
|
1 | 0 | 99.88 | 99.35 | 0.45 | 169.9 | 0 | 58.9 | 0/0 | 0 | 2172 | 174 | 1 |
|
Chip 5
|
A
|
0 | 0 | 99.87 | 99.34 | 0.64 | 204.9 | 0 | 72.8 | 0/0 | 0 | 2291 | 176 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.89 | 99.32 | 0.69 | 186.4 | 0 | 65.6 | 0/0 | 0 | 2257 | 157 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.86 | 99.31 | 0.32 | 212.9 | 0 | 74.5 | 0/0 | 0 | 2286 | 174 | 1 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.38 | 0.64 | 200.0 | 0 | 70.4 | 0/0 | 0 | 2314 | 167 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.85 | 99.36 | 0.63 | 190.8 | 0 | 66.7 | 0/0 | 0 | 2277 | 160 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.33 | 0.85 | 184.8 | 0 | 65.4 | 0/0 | 0 | 2261 | 154 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.32 | 0.42 | 164.7 | 0 | 56.7 | 0/0 | 0 | 2219 | 162 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.86 | 99.34 | 0.75 | 154.0 | 1 | 53.1 | 0/0 | 0 | 2204 | 164 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.81 | 98.98 | 0.44 | 90.8 | 0 | 29.9 | 0/0 | 0 | 2046 | 170 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.87 | 99.34 | 1.24 | 90.5 | 1 | 29.9 | 0/0 | 0 | 2055 | 166 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.86 | 99.22 | 0.82 | 89.3 | 0 | 29.8 | 0/0 | 0 | 2037 | 165 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-28 | |
| TestTime | Test Time | 14:28 | |
| TestDuration | Duration | 1:18:11 | |
| pXar | pXar version | v2.5+57~g44d0777 | |
| DTB_FW | DTB FW | 4.4 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
