Test Date: 2015-08-24 17:49
Analysis date: 2016-05-26 02:29
Analysis date: 2016-05-26 02:29
M2081 XRayHRQualification
Summary
| Module | Module | M2081 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 15 | |
| BumpBondingDefects | Bump Bonding Defects | 8 | |
| NoisyPixels | Noisy Pixels | 7 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.26 | % |
| Noise | Mean Noise | 154 | e- |

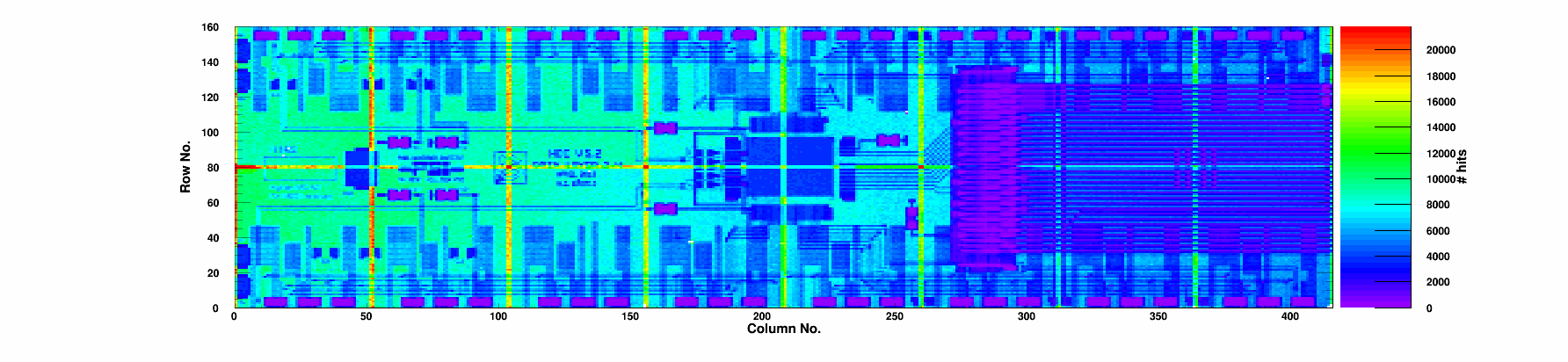

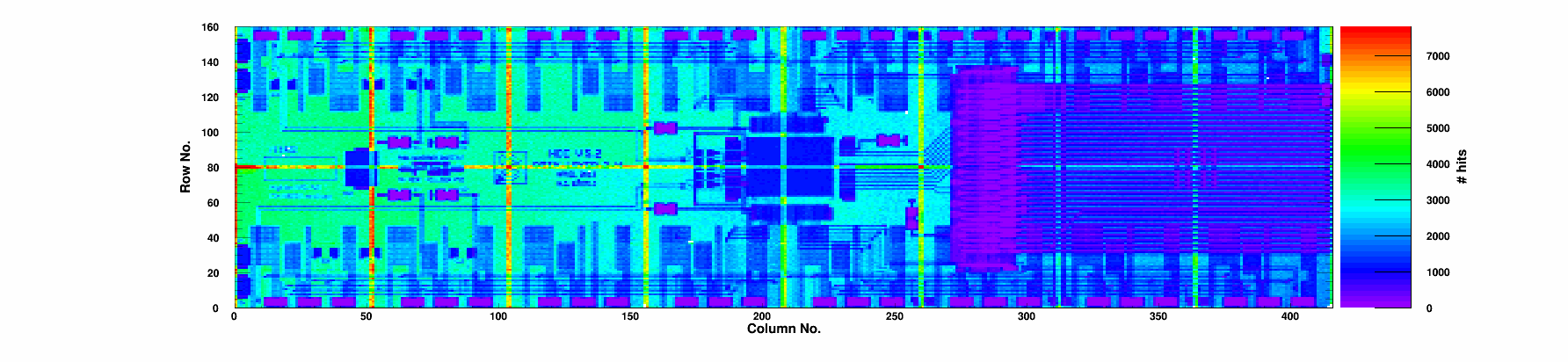

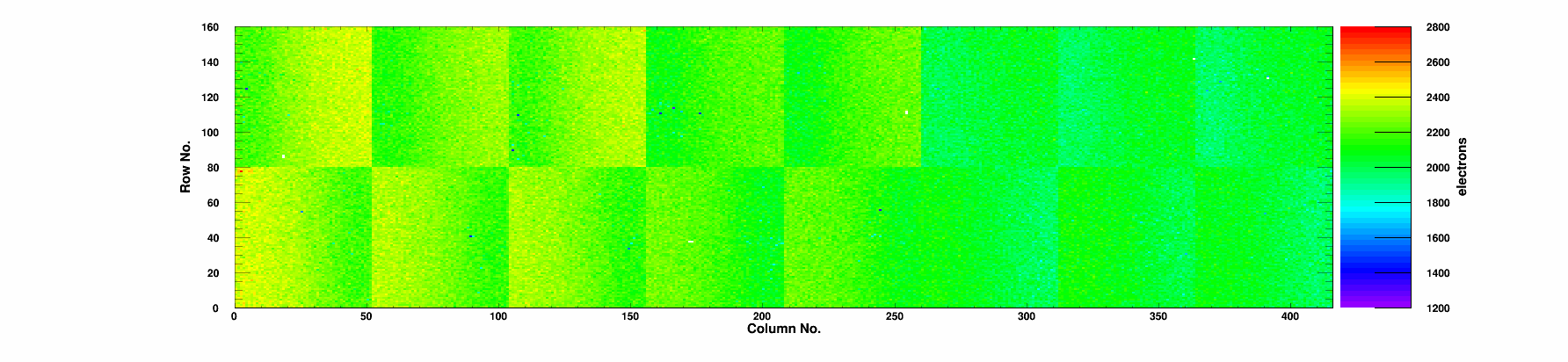

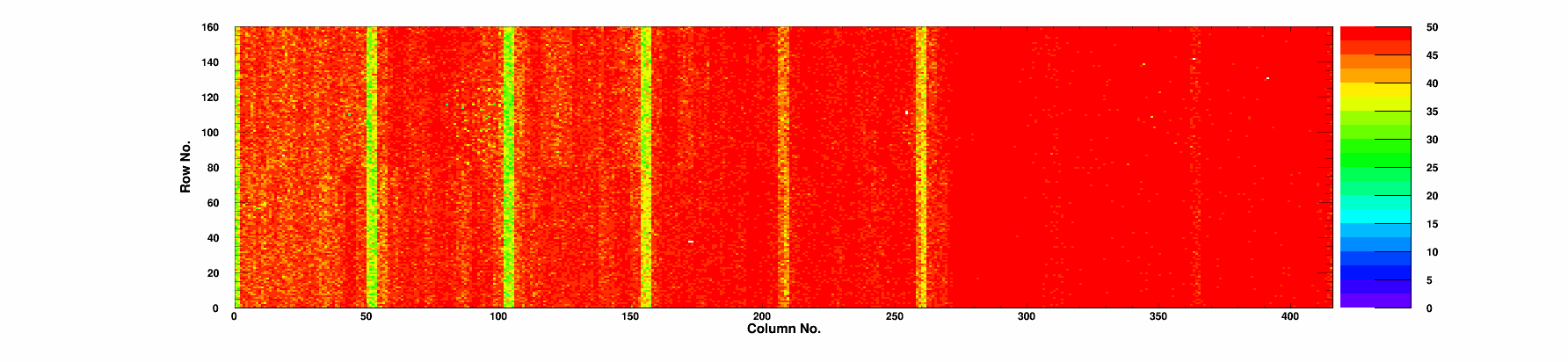

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.87 | 99.33 | 0.53 | 84.0 | 0 | 28.2 | 0/0 | 0 | 1981 | 150 | 1 |
|
Chip 1
|
A
|
1 | 0 | 99.85 | 99.27 | 0.83 | 87.6 | 0 | 29.0 | 0/0 | 0 | 1988 | 153 | 1 |
|
Chip 2
|
A
|
0 | 0 | 99.80 | 98.97 | 0.82 | 87.8 | 0 | 29.2 | 0/0 | 0 | 2026 | 154 | 0 |
|
Chip 3
|
A
|
2 | 0 | 99.88 | 99.34 | 0.41 | 144.6 | 0 | 50.5 | 0/0 | 0 | 2066 | 151 | 2 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.34 | 0.77 | 159.4 | 0 | 55.5 | 0/0 | 0 | 2165 | 152 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.85 | 99.31 | 0.89 | 195.9 | 0 | 70.3 | 0/0 | 0 | 2266 | 149 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.30 | 0.76 | 176.6 | 0 | 62.8 | 0/0 | 0 | 2230 | 149 | 0 |
|
Chip 7
|
A
|
2 | 0 | 99.89 | 99.34 | 0.49 | 202.7 | 1 | 71.8 | 0/0 | 0 | 2257 | 152 | 1 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.32 | 0.88 | 202.2 | 0 | 71.8 | 0/0 | 0 | 2290 | 160 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.31 | 0.49 | 187.0 | 0 | 66.5 | 0/0 | 0 | 2255 | 150 | 0 |
|
Chip 10
|
A
|
3 | 0 | 99.88 | 99.38 | 0.31 | 181.5 | 3 | 64.9 | 0/0 | 0 | 2243 | 153 | 0 |
|
Chip 11
|
A
|
2 | 0 | 99.87 | 99.33 | 0.54 | 147.5 | 0 | 51.2 | 0/0 | 0 | 2096 | 156 | 2 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.36 | 0.37 | 145.2 | 0 | 50.4 | 0/0 | 0 | 2164 | 160 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 98.97 | 0.4 | 83.4 | 0 | 27.8 | 0/0 | 0 | 2040 | 160 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.86 | 99.30 | 0.5 | 89.0 | 1 | 29.7 | 0/0 | 0 | 2059 | 155 | 0 |
|
Chip 15
|
A
|
3 | 0 | 99.84 | 99.02 | 0.72 | 85.7 | 3 | 28.8 | 0/0 | 0 | 2031 | 160 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-24 | |
| TestTime | Test Time | 17:49 | |
| TestDuration | Duration | 0:29:22 | |
| pXar | pXar version | prod-01+86~g1838649 | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 4 | |
| nWarnings | # Warnings | 3 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 1 | |
| channel_3_count | Channel 3 | 6 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_tokenchain_count | Token Chain Length | 2 | |
| message_readback_count | Readback start marker | 3 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
