Test Date: 2015-08-28 10:32
Analysis date: 2016-05-26 02:48
Analysis date: 2016-05-26 02:48
M2084 XRayHRQualification
Summary
| Module | Module | M2084 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 110 | |
| BumpBondingDefects | Bump Bonding Defects | 105 | |
| NoisyPixels | Noisy Pixels | 5 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.26 | % |
| Noise | Mean Noise | 162 | e- |

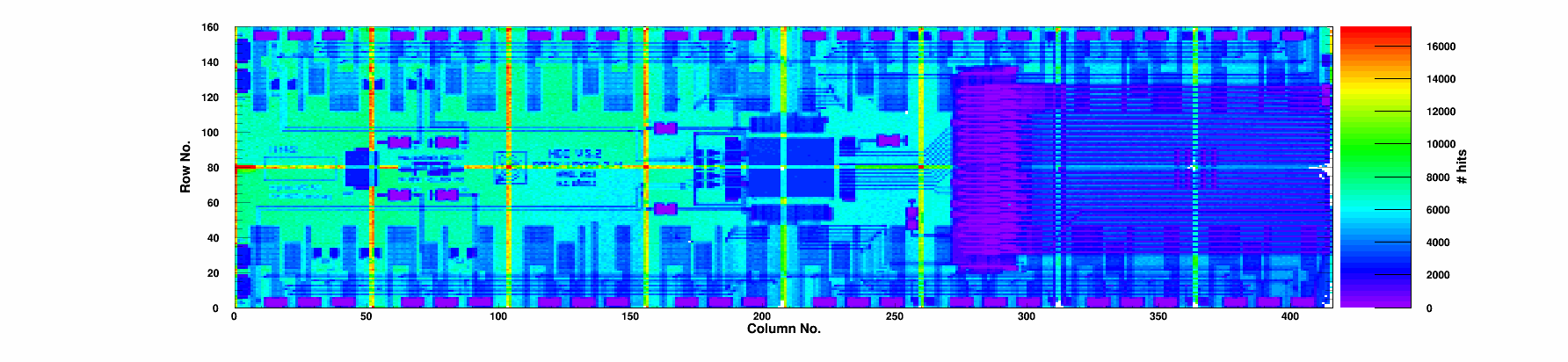

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
17 | 0 | 99.87 | 99.31 | 0.39 | 78.7 | 17 | 26.6 | 0/0 | 0 | 1968 | 172 | 0 |
|
Chip 1
|
A
|
3 | 0 | 99.82 | 98.96 | 0.75 | 80.0 | 3 | 26.8 | 0/0 | 0 | 1993 | 155 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.33 | 0.52 | 75.0 | 0 | 24.9 | 0/0 | 0 | 1963 | 163 | 0 |
|
Chip 3
|
A
|
2 | 0 | 99.86 | 99.05 | 0.7 | 122.3 | 0 | 42.3 | 0/0 | 0 | 2053 | 158 | 2 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.28 | 0.45 | 129.0 | 0 | 44.6 | 0/0 | 0 | 2110 | 155 | 0 |
|
Chip 5
|
A
|
2 | 0 | 99.87 | 99.38 | 0.58 | 159.6 | 2 | 56.1 | 0/0 | 0 | 2173 | 154 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.90 | 99.34 | 0.66 | 144.4 | 0 | 50.2 | 0/0 | 0 | 2141 | 156 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.86 | 99.36 | 0.62 | 154.6 | 0 | 53.8 | 0/0 | 0 | 2156 | 153 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.87 | 99.14 | 0.53 | 148.4 | 1 | 51.6 | 0/0 | 0 | 2149 | 160 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.89 | 99.34 | 0.88 | 142.3 | 1 | 49.3 | 0/0 | 0 | 2141 | 166 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.88 | 99.37 | 0.43 | 131.2 | 1 | 45.7 | 0/0 | 0 | 2106 | 153 | 0 |
|
Chip 11
|
A
|
9 | 0 | 99.88 | 99.37 | 0.41 | 121.8 | 7 | 41.7 | 0/0 | 0 | 2057 | 156 | 2 |
|
Chip 12
|
A
|
1 | 0 | 99.85 | 99.27 | 0.7 | 113.2 | 1 | 38.6 | 0/0 | 0 | 2049 | 171 | 0 |
|
Chip 13
|
A
|
4 | 0 | 99.86 | 99.28 | 0.49 | 67.1 | 3 | 22.0 | 0/0 | 0 | 1904 | 178 | 1 |
|
Chip 14
|
A
|
11 | 0 | 99.87 | 99.15 | 1.46 | 70.5 | 11 | 23.4 | 0/0 | 0 | 1974 | 161 | 0 |
|
Chip 15
|
B
|
58 | 0 | 99.87 | 99.28 | 0.35 | 68.2 | 58 | 22.7 | 0/0 | 0 | 1941 | 182 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-28 | |
| TestTime | Test Time | 10:32 | |
| TestDuration | Duration | 1:35:13 | |
| pXar | pXar version | v2.5+57~g44d0777 | |
| DTB_FW | DTB FW | 4.4 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
