Test Date: 2015-08-28 10:32
Analysis date: 2016-05-26 03:06
Analysis date: 2016-05-26 03:06
M2087 XRayHRQualification
Summary
| Module | Module | M2087 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 40 | |
| BumpBondingDefects | Bump Bonding Defects | 36 | |
| NoisyPixels | Noisy Pixels | 4 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.28 | % |
| Noise | Mean Noise | 162 | e- |

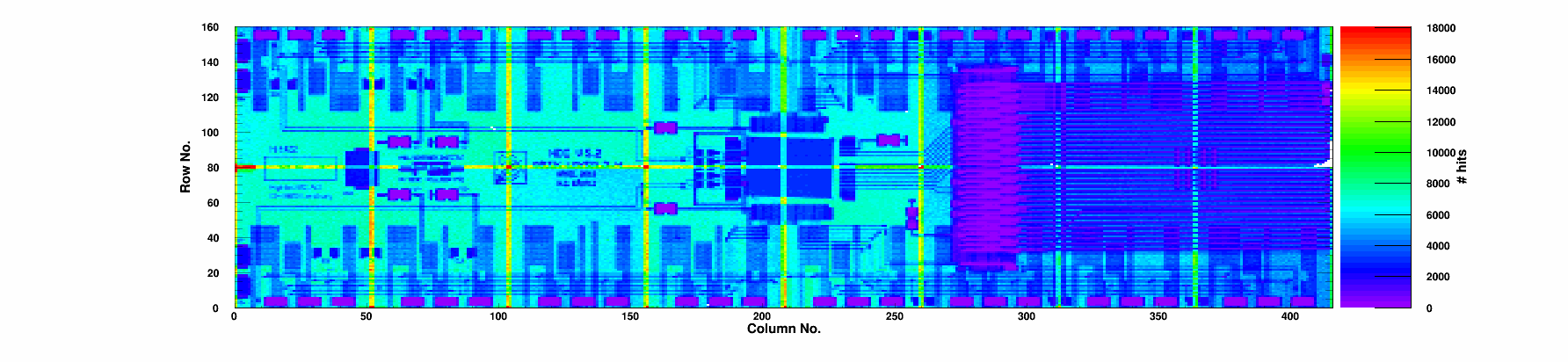

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
30 | 0 | 99.85 | 98.99 | 0.48 | 66.5 | 28 | 21.9 | 0/0 | 0 | 1906 | 157 | 2 |
|
Chip 1
|
A
|
0 | 0 | 99.88 | 99.25 | 0.5 | 72.7 | 0 | 23.9 | 0/0 | 0 | 1965 | 160 | 0 |
|
Chip 2
|
A
|
2 | 0 | 99.87 | 99.32 | 0.31 | 65.3 | 2 | 21.5 | 0/0 | 0 | 1966 | 162 | 0 |
|
Chip 3
|
A
|
3 | 0 | 99.88 | 99.30 | 0.8 | 123.8 | 1 | 42.6 | 0/0 | 0 | 2025 | 165 | 2 |
|
Chip 4
|
A
|
1 | 0 | 99.87 | 99.32 | 0.71 | 126.5 | 1 | 43.3 | 0/0 | 0 | 2101 | 165 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.84 | 99.10 | 0.59 | 148.3 | 1 | 51.8 | 0/0 | 0 | 2167 | 166 | 0 |
|
Chip 6
|
A
|
2 | 0 | 99.88 | 99.37 | 0.53 | 137.4 | 2 | 47.6 | 0/0 | 0 | 2116 | 160 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.88 | 99.35 | 0.56 | 141.2 | 0 | 48.5 | 0/0 | 0 | 2116 | 168 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.34 | 0.4 | 149.5 | 0 | 51.6 | 0/0 | 0 | 2144 | 165 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.31 | 0.52 | 142.9 | 0 | 49.4 | 0/0 | 0 | 2112 | 159 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.89 | 99.35 | 0.36 | 137.5 | 0 | 47.6 | 0/0 | 0 | 2108 | 151 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.88 | 99.34 | 0.67 | 131.2 | 1 | 45.2 | 0/0 | 0 | 2116 | 162 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.32 | 0.41 | 136.2 | 0 | 46.6 | 0/0 | 0 | 2094 | 171 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.87 | 99.29 | 0.51 | 69.1 | 0 | 22.7 | 0/0 | 0 | 1951 | 158 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.86 | 99.29 | 0.53 | 82.3 | 0 | 27.4 | 0/0 | 0 | 1988 | 160 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.87 | 99.28 | 0.61 | 75.9 | 0 | 25.4 | 0/0 | 0 | 1988 | 161 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-28 | |
| TestTime | Test Time | 10:32 | |
| TestDuration | Duration | 1:35:13 | |
| pXar | pXar version | v2.5+57~g44d0777 | |
| DTB_FW | DTB FW | 4.4 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 1 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 1 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 1 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
