Test Date: 2015-09-04 17:08
Analysis date: 2016-05-26 03:40
Analysis date: 2016-05-26 03:40
M2092 XRayHRQualification
Summary
| Module | Module | M2092 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 64 | |
| BumpBondingDefects | Bump Bonding Defects | 61 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

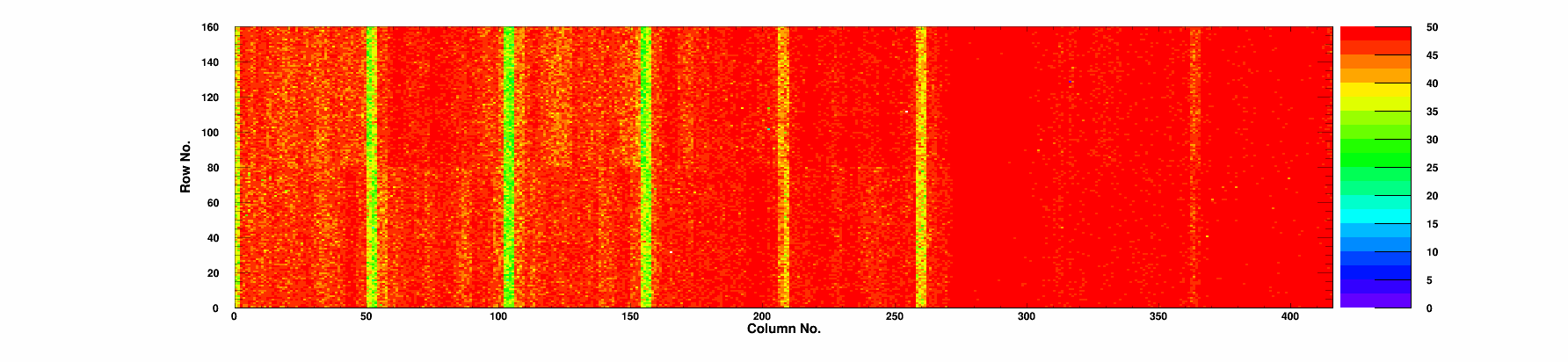

| Efficiency | Efficiency 50/120 | 99.87/99.26 | % |

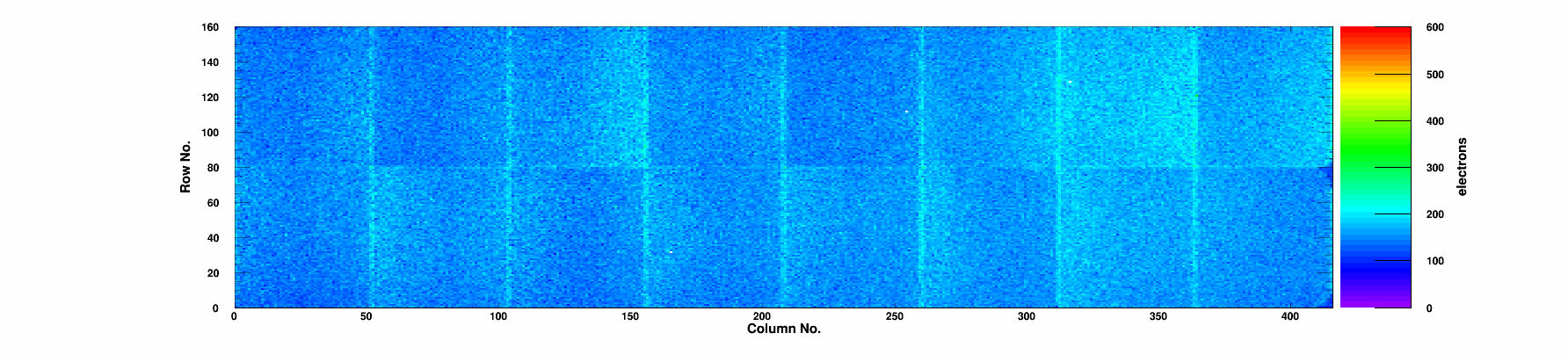

| Noise | Mean Noise | 157 | e- |
Summary ROCs

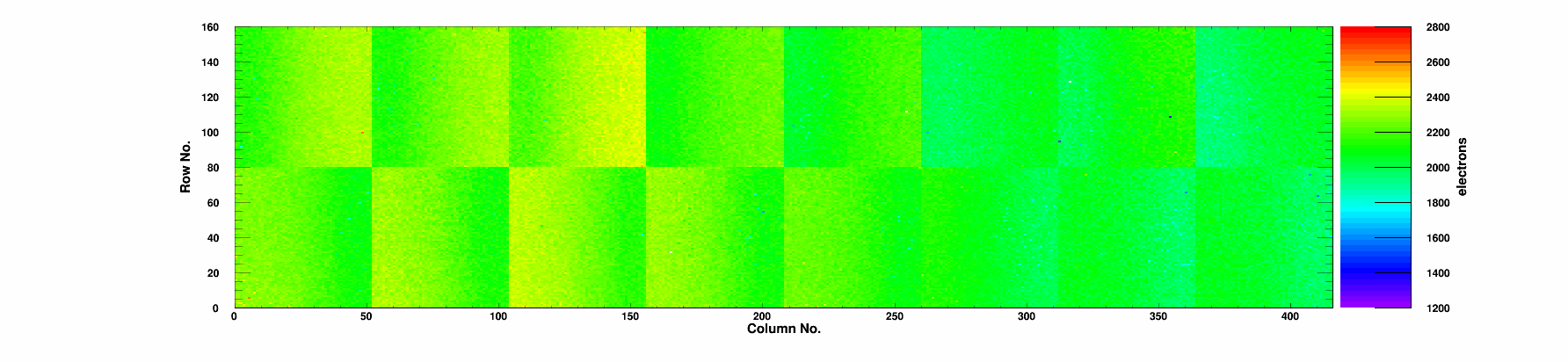

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
7 | 0 | 99.85 | 99.05 | 1.02 | 94.7 | 7 | 32.4 | 0/0 | 0 | 2010 | 168 | 0 |
|
Chip 1
|
A
|
2 | 0 | 99.84 | 99.06 | 0.77 | 111.9 | 1 | 38.1 | 0/0 | 0 | 2077 | 181 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.26 | 0.81 | 94.1 | 0 | 31.7 | 0/0 | 0 | 2024 | 163 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.89 | 99.30 | 0.49 | 139.4 | 0 | 48.3 | 0/0 | 0 | 2091 | 148 | 1 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.31 | 0.74 | 170.4 | 0 | 59.8 | 0/0 | 0 | 2181 | 153 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.89 | 99.33 | 0.66 | 212.8 | 0 | 75.6 | 0/0 | 0 | 2300 | 162 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.89 | 99.40 | 0.56 | 178.1 | 0 | 62.5 | 0/0 | 0 | 2228 | 147 | 0 |
|
Chip 7
|
A
|
3 | 0 | 99.87 | 99.34 | 0.82 | 200.8 | 3 | 70.7 | 0/0 | 0 | 2252 | 147 | 0 |
|
Chip 8
|
A
|
2 | 0 | 99.89 | 99.32 | 0.61 | 189.7 | 2 | 66.7 | 0/0 | 0 | 2200 | 148 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.31 | 0.56 | 193.8 | 0 | 68.2 | 0/0 | 0 | 2223 | 157 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.36 | 0.82 | 197.6 | 0 | 70.7 | 0/0 | 0 | 2259 | 151 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.88 | 99.34 | 0.45 | 164.4 | 0 | 58.0 | 0/0 | 0 | 2176 | 155 | 1 |
|
Chip 12
|
A
|
0 | 0 | 99.89 | 99.23 | 0.74 | 157.0 | 0 | 54.6 | 0/0 | 0 | 2169 | 158 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.86 | 99.25 | 0.57 | 96.7 | 1 | 32.4 | 0/0 | 0 | 2061 | 160 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 98.99 | 0.99 | 100.3 | 0 | 33.9 | 0/0 | 0 | 2024 | 168 | 0 |
|
Chip 15
|
B
|
47 | 0 | 99.86 | 99.25 | 1.15 | 89.6 | 47 | 30.6 | 0/0 | 0 | 2019 | 154 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-09-04 | |
| TestTime | Test Time | 17:08 | |
| TestDuration | Duration | 1:18:56 | |
| pXar | pXar version | prod-10 | |
| DTB_FW | DTB FW | 4.4 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 4 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 2 | |
| channel_2_count | Channel 2 | 2 | |
| channel_3_count | Channel 3 | 0 | |
| message_readback_count | Readback start marker | 4 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
