Test Date: 2015-10-20 15:25
Analysis date: 2016-05-26 03:46
Analysis date: 2016-05-26 03:46
M2093 XRayHRQualification
Summary
| Module | Module | M2093 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 8 | |
| BumpBondingDefects | Bump Bonding Defects | 7 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.28 | % |
| Noise | Mean Noise | 173 | e- |

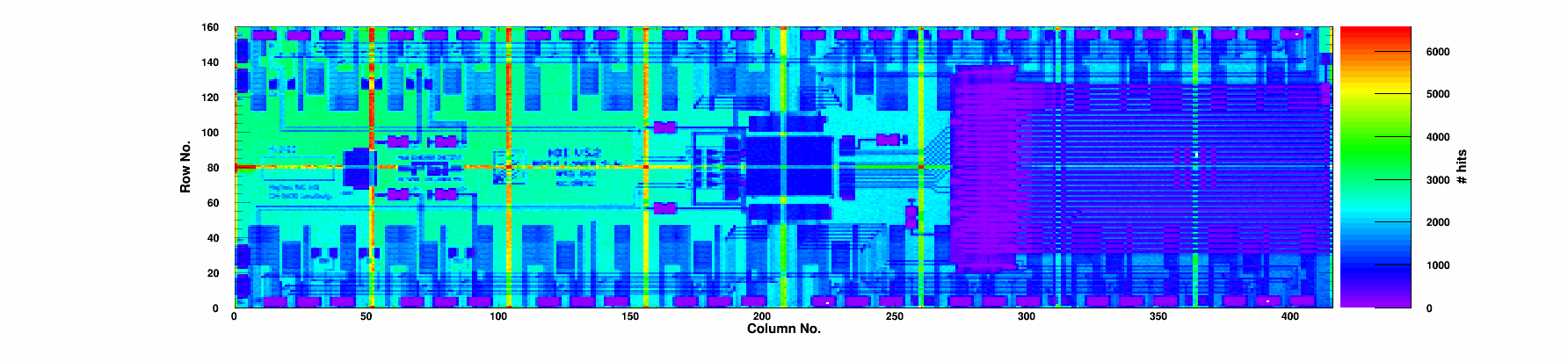

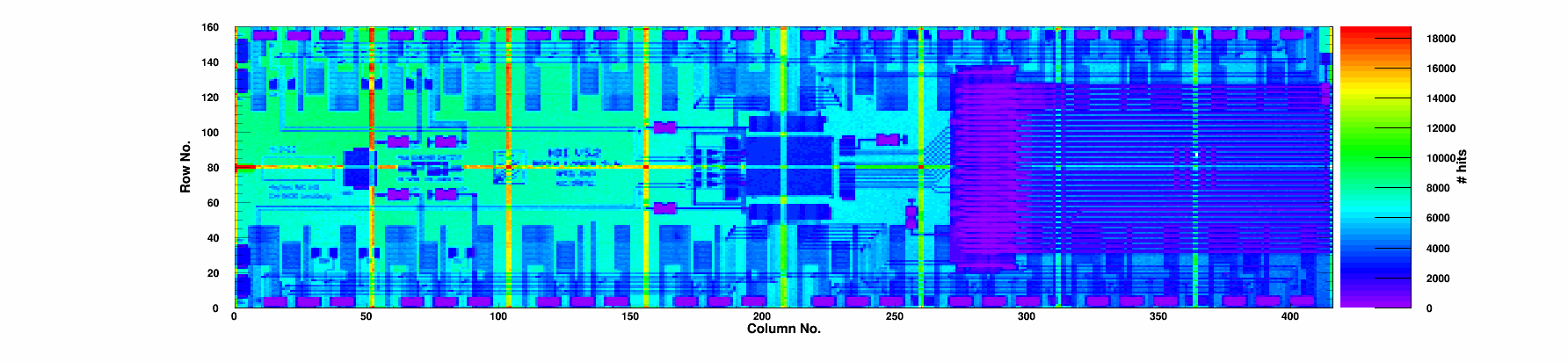

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
4 | 0 | 99.85 | 99.27 | 0.44 | 27.6 | 82.6 | 4 | 0/0 | 0 | 1899 | 178 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.86 | 99.31 | 0.48 | 28.1 | 84.7 | 0 | 0/0 | 0 | 1907 | 177 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.25 | 0.45 | 25.1 | 76.2 | 0 | 0/0 | 0 | 1852 | 173 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.31 | 0.8 | 43.6 | 126.8 | 0 | 0/0 | 0 | 2015 | 176 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.29 | 0.64 | 47.7 | 139.0 | 0 | 0/0 | 0 | 2013 | 175 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.87 | 99.31 | 0.55 | 60.0 | 171.8 | 0 | 0/0 | 0 | 2068 | 171 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.86 | 99.16 | 0.61 | 58.4 | 168.5 | 1 | 0/0 | 0 | 2096 | 169 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.88 | 99.32 | 0.59 | 62.2 | 180.3 | 0 | 0/0 | 0 | 2057 | 180 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.87 | 99.27 | 0.42 | 50.4 | 146.2 | 0 | 0/0 | 0 | 2085 | 163 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.39 | 0.47 | 52.8 | 152.9 | 0 | 0/0 | 0 | 2110 | 176 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.89 | 99.34 | 0.48 | 56.1 | 160.9 | 0 | 0/0 | 0 | 2119 | 180 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.34 | 0.65 | 45.2 | 132.4 | 0 | 0/0 | 0 | 2109 | 173 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.88 | 99.32 | 0.55 | 40.6 | 119.8 | 1 | 0/0 | 0 | 1988 | 177 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.85 | 99.23 | 0.68 | 22.4 | 68.6 | 0 | 0/0 | 0 | 1923 | 172 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.83 | 99.21 | 2.04 | 23.9 | 72.6 | 0 | 0/0 | 0 | 1940 | 164 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.85 | 99.11 | 0.44 | 23.0 | 69.1 | 1 | 0/0 | 0 | 1929 | 165 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-10-20 | |
| TestTime | Test Time | 15:25 | |
| TestDuration | Duration | 1:30:24 | |
| pXar | pXar version | v2.6.0+21~ga0339e2 | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 16 | |
| nWarnings | # Warnings | 2 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 2 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_readback_count | Readback start marker | 2 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
