Test Date: 2015-09-01 13:21
Analysis date: 2016-05-26 03:52
Analysis date: 2016-05-26 03:52
M2094 XRayHRQualification
Summary
| Module | Module | M2094 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 24 | |
| BumpBondingDefects | Bump Bonding Defects | 19 | |
| NoisyPixels | Noisy Pixels | 5 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

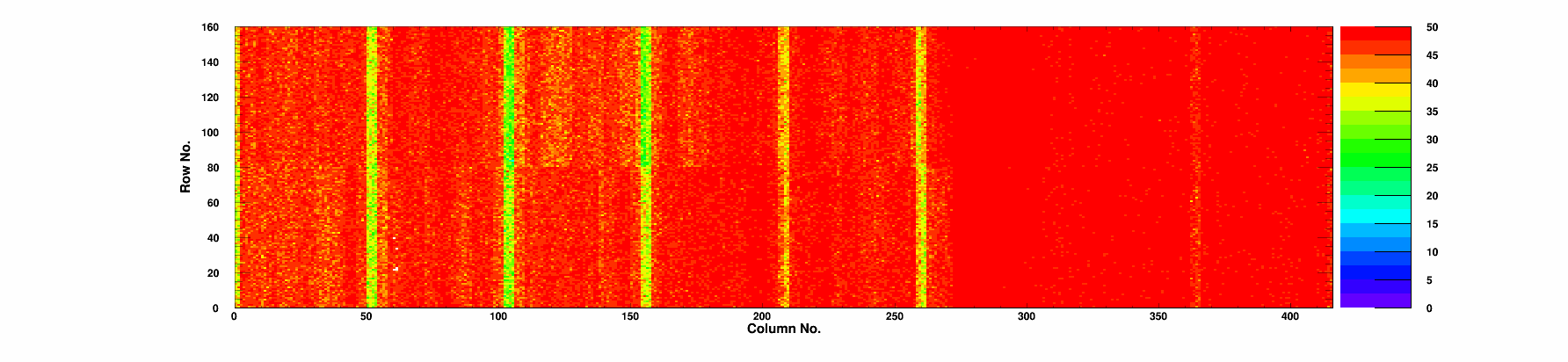

| Efficiency | Efficiency 50/120 | 99.86/99.29 | % |
| Noise | Mean Noise | 162 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
7 | 0 | 99.86 | 99.24 | 0.78 | 102.4 | 7 | 34.7 | 0/0 | 0 | 2031 | 175 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 99.29 | 0.87 | 105.0 | 0 | 35.5 | 0/0 | 0 | 2065 | 164 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.33 | 0.44 | 90.7 | 0 | 30.4 | 0/0 | 0 | 2022 | 158 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.33 | 0.28 | 169.8 | 0 | 59.6 | 0/0 | 0 | 2202 | 156 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.90 | 99.30 | 0.65 | 175.4 | 0 | 61.4 | 0/0 | 0 | 2180 | 155 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.84 | 99.38 | 0.38 | 215.8 | 0 | 76.9 | 0/0 | 0 | 2303 | 168 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.32 | 0.48 | 178.6 | 0 | 63.0 | 0/0 | 0 | 2218 | 155 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.89 | 99.31 | 0.69 | 184.1 | 0 | 65.4 | 0/0 | 0 | 2250 | 155 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.87 | 99.35 | 0.56 | 202.3 | 1 | 71.0 | 0/0 | 0 | 2267 | 169 | 0 |
|
Chip 9
|
A
|
5 | 0 | 99.86 | 99.30 | 0.45 | 187.1 | 0 | 66.2 | 0/0 | 0 | 2053 | 157 | 5 |
|
Chip 10
|
A
|
0 | 0 | 99.85 | 99.38 | 0.61 | 192.0 | 0 | 69.0 | 0/0 | 0 | 2239 | 153 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.35 | 0.47 | 157.3 | 0 | 54.7 | 0/0 | 0 | 2168 | 150 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.86 | 99.36 | 0.66 | 163.6 | 0 | 56.9 | 0/0 | 0 | 2190 | 161 | 0 |
|
Chip 13
|
A
|
8 | 0 | 99.84 | 99.31 | 0.49 | 99.0 | 8 | 33.0 | 0/0 | 0 | 2068 | 177 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 99.06 | 1.02 | 91.6 | 0 | 30.5 | 0/0 | 0 | 2033 | 161 | 0 |
|
Chip 15
|
A
|
3 | 0 | 99.84 | 98.97 | 0.9 | 98.1 | 3 | 33.3 | 0/0 | 0 | 2049 | 174 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-09-01 | |
| TestTime | Test Time | 13:21 | |
| TestDuration | Duration | 1:29:29 | |
| pXar | pXar version | prod-10 | |
| DTB_FW | DTB FW | 4.4 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 1 | |
| nWarnings | # Warnings | 3 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 1 | |
| channel_2_count | Channel 2 | 3 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 1 | |
| message_readback_count | Readback start marker | 3 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
