Test Date: 2015-09-01 13:21
Analysis date: 2016-05-26 03:58
Analysis date: 2016-05-26 03:58
M2096 XRayHRQualification
Summary
| Module | Module | M2096 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 4 | |
| BumpBondingDefects | Bump Bonding Defects | 3 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

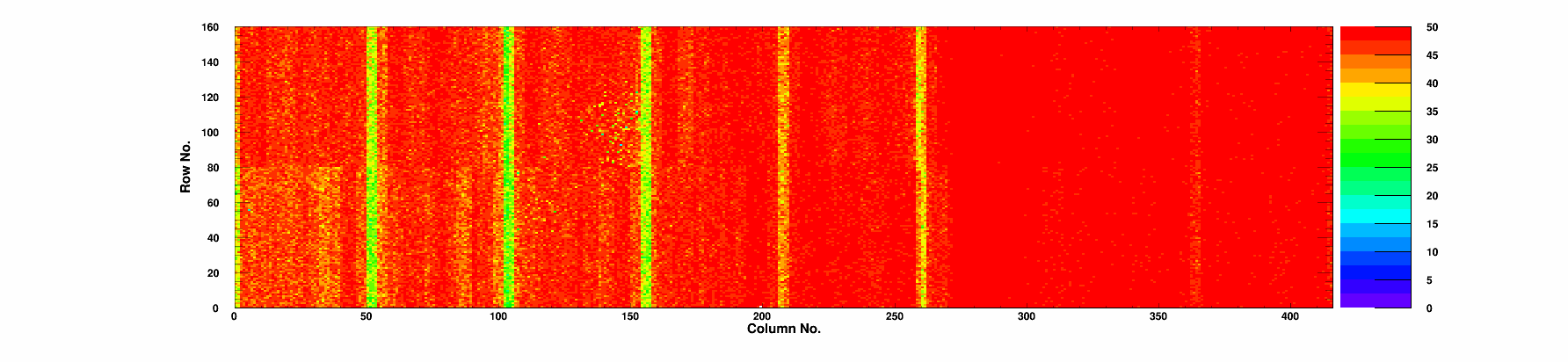

| Efficiency | Efficiency 50/120 | 99.86/99.26 | % |
| Noise | Mean Noise | 165 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.84 | 99.03 | 0.77 | 87.5 | 0 | 29.5 | 0/0 | 0 | 2009 | 167 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.32 | 0.56 | 97.0 | 0 | 32.4 | 0/0 | 0 | 2006 | 172 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.31 | 0.45 | 84.7 | 0 | 27.9 | 0/0 | 0 | 1965 | 165 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.31 | 0.69 | 160.6 | 0 | 55.9 | 0/0 | 0 | 2164 | 166 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.34 | 0.44 | 171.0 | 0 | 59.7 | 0/0 | 0 | 2200 | 168 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 99.28 | 1.33 | 187.3 | 0 | 66.8 | 0/0 | 0 | 2232 | 161 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.86 | 99.32 | 0.53 | 195.1 | 0 | 68.7 | 0/0 | 0 | 2247 | 170 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.36 | 0.45 | 189.1 | 0 | 66.8 | 0/0 | 0 | 2212 | 158 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.82 | 99.25 | 0.75 | 211.1 | 0 | 74.2 | 0/0 | 0 | 2258 | 164 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.33 | 0.77 | 207.2 | 0 | 72.6 | 0/0 | 0 | 2252 | 172 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.32 | 1.03 | 195.4 | 0 | 69.8 | 0/0 | 0 | 2228 | 159 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.88 | 99.35 | 0.74 | 175.5 | 0 | 60.9 | 0/0 | 0 | 2158 | 163 | 1 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.31 | 0.51 | 143.4 | 0 | 49.7 | 0/0 | 0 | 2095 | 157 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.07 | 0.73 | 91.1 | 0 | 30.3 | 0/0 | 0 | 2014 | 158 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.86 | 99.28 | 0.48 | 104.0 | 0 | 34.8 | 0/0 | 0 | 2033 | 178 | 0 |
|
Chip 15
|
A
|
3 | 0 | 99.81 | 98.99 | 1.1 | 93.3 | 3 | 31.4 | 0/0 | 0 | 2002 | 169 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-09-01 | |
| TestTime | Test Time | 13:21 | |
| TestDuration | Duration | 1:29:29 | |
| pXar | pXar version | prod-10 | |
| DTB_FW | DTB FW | 4.4 |
Errors
| nCriticals | # Criticals | 4 | |
| nErrors | # Errors | 34 | |
| nWarnings | # Warnings | 40 | |
| channel_0_count | Channel 0 | 17 | |
| channel_1_count | Channel 1 | 12 | |
| channel_2_count | Channel 2 | 23 | |
| channel_3_count | Channel 3 | 22 | |
| message_eventid_count | Event ID mismatch | 7 | |
| message_notokenpass_count | has NoTokenPass | 6 | |
| message_missingevents_count | Missing Event criticals | 2 | |
| message_tokenchain_count | Token Chain Length | 21 | |
| message_datasize_count | Data size criticals | 2 | |
| message_readback_count | Readback start marker | 40 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
