Test Date: 2015-09-10 17:49
Analysis date: 2016-05-26 04:10
Analysis date: 2016-05-26 04:10
M2098 XRayHRQualification
Summary
| Module | Module | M2098 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 8 | |
| BumpBondingDefects | Bump Bonding Defects | 4 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.29 | % |

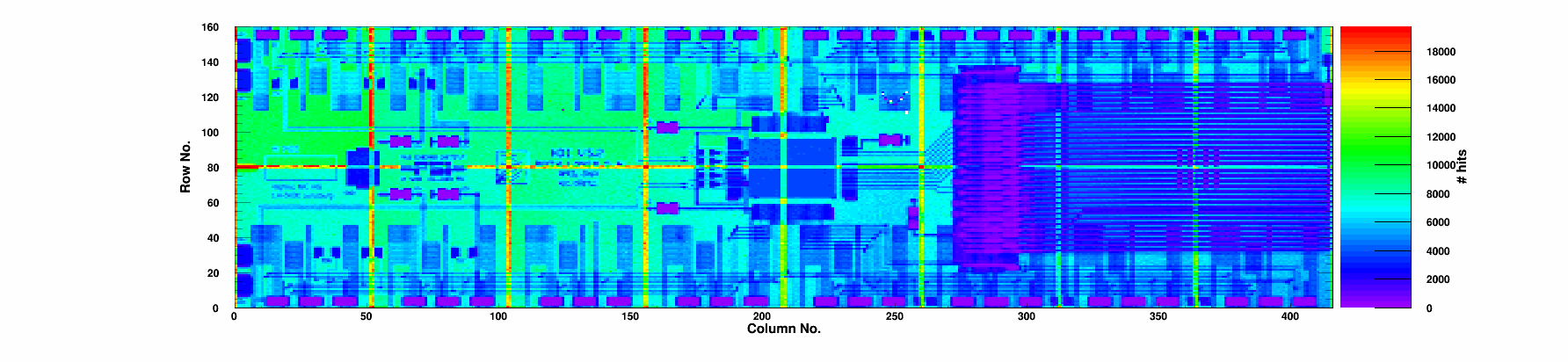

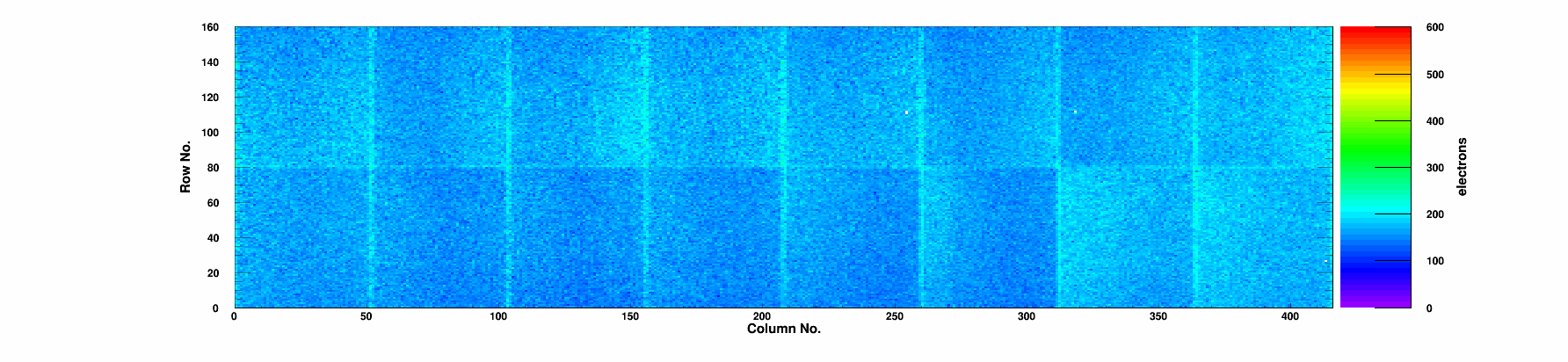

| Noise | Mean Noise | 166 | e- |

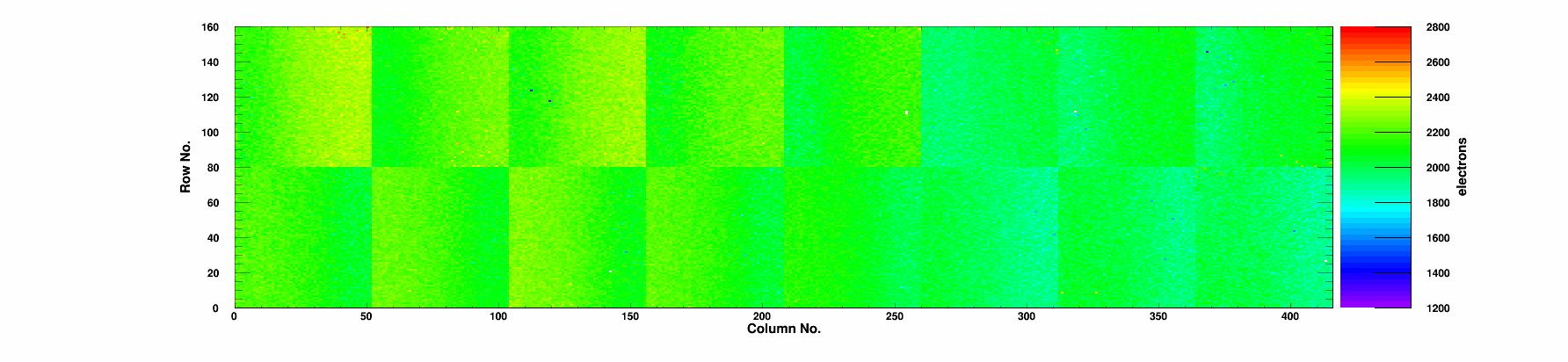

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.87 | 99.31 | 0.7 | 94.8 | 0 | 32.5 | 0/0 | 0 | 2025 | 177 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.86 | 99.31 | 0.76 | 96.0 | 0 | 32.5 | 0/0 | 0 | 2025 | 165 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.82 | 99.00 | 1.09 | 90.0 | 0 | 30.1 | 0/0 | 0 | 1986 | 164 | 0 |
|
Chip 3
|
A
|
6 | 0 | 99.89 | 99.33 | 0.47 | 147.0 | 4 | 51.3 | 0/0 | 0 | 2080 | 168 | 1 |
|
Chip 4
|
A
|
0 | 0 | 99.89 | 99.33 | 0.72 | 172.9 | 0 | 60.4 | 0/0 | 0 | 2177 | 171 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.87 | 99.31 | 0.94 | 194.8 | 0 | 69.2 | 0/0 | 0 | 2228 | 170 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.36 | 0.59 | 173.3 | 0 | 60.6 | 0/0 | 0 | 2178 | 164 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.89 | 99.36 | 0.5 | 206.5 | 0 | 71.8 | 0/0 | 0 | 2254 | 170 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.29 | 0.39 | 161.7 | 0 | 55.0 | 0/0 | 0 | 2135 | 163 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.90 | 99.32 | 1.11 | 165.2 | 0 | 57.5 | 0/0 | 0 | 2161 | 157 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.89 | 99.39 | 0.37 | 181.2 | 0 | 64.5 | 0/0 | 0 | 2184 | 155 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.40 | 0.53 | 145.9 | 0 | 50.5 | 0/0 | 0 | 2132 | 157 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.35 | 0.72 | 127.8 | 0 | 43.4 | 0/0 | 0 | 2074 | 157 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.25 | 0.4 | 80.6 | 0 | 26.6 | 0/0 | 0 | 1970 | 159 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.85 | 99.31 | 0.96 | 91.0 | 0 | 30.6 | 0/0 | 0 | 1991 | 175 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.87 | 99.06 | 0.96 | 90.0 | 0 | 30.6 | 0/0 | 0 | 1948 | 176 | 1 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-09-10 | |
| TestTime | Test Time | 17:49 | |
| TestDuration | Duration | 1:27:29 | |
| pXar | pXar version | prod-10+24~g09f6d2c | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
