Test Date: 2015-09-11 16:58
Analysis date: 2016-05-26 04:32
Analysis date: 2016-05-26 04:32
M2104 XRayHRQualification
Summary
| Module | Module | M2104 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 13 | |
| BumpBondingDefects | Bump Bonding Defects | 13 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.28 | % |
| Noise | Mean Noise | 156 | e- |

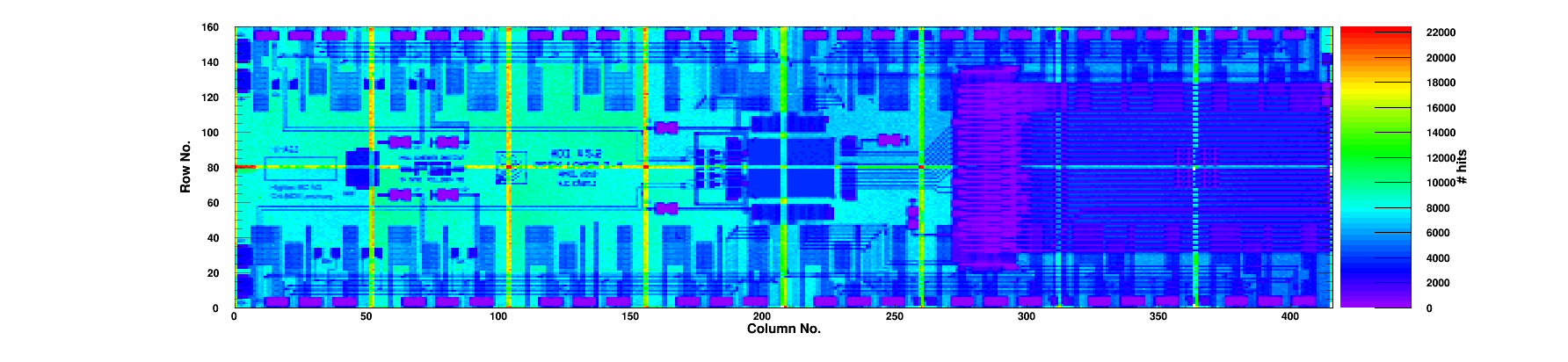

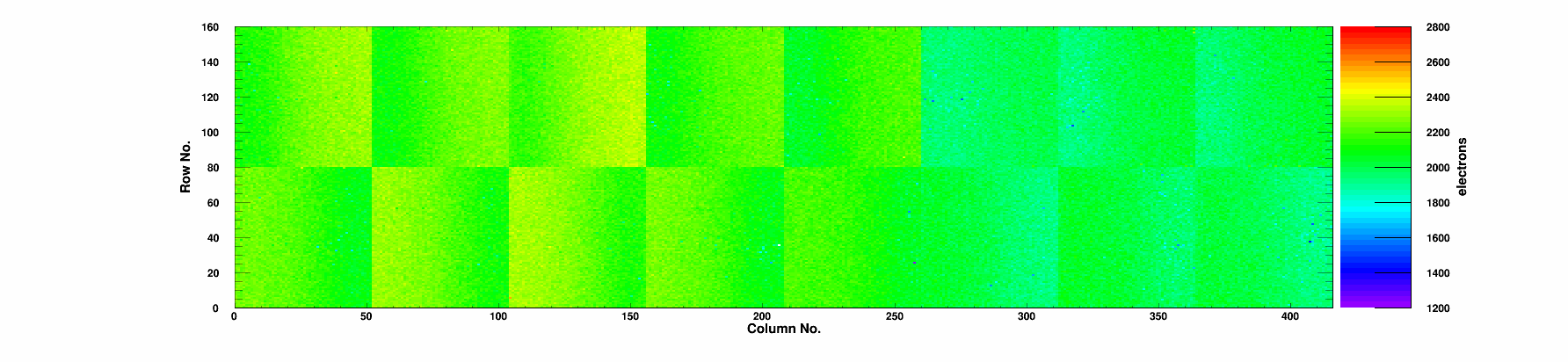

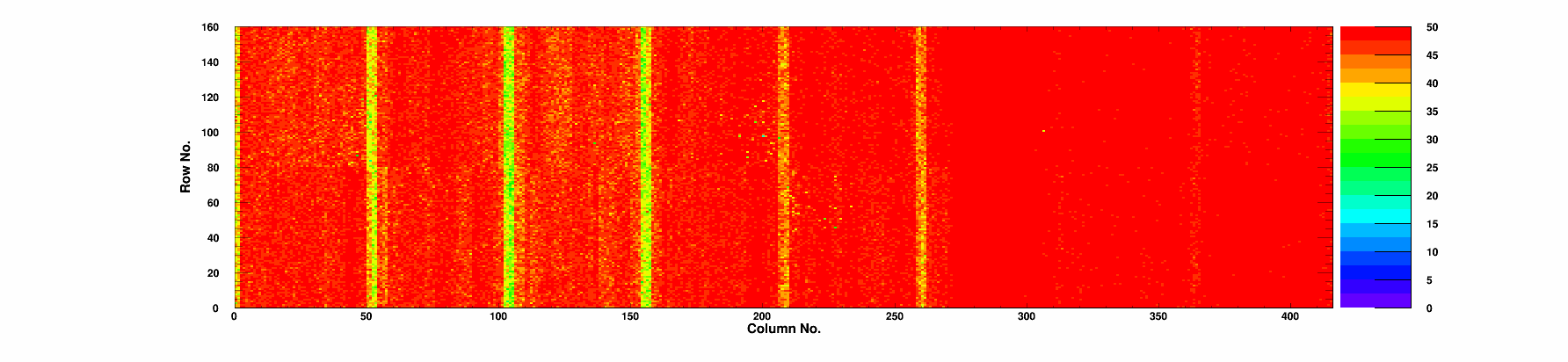

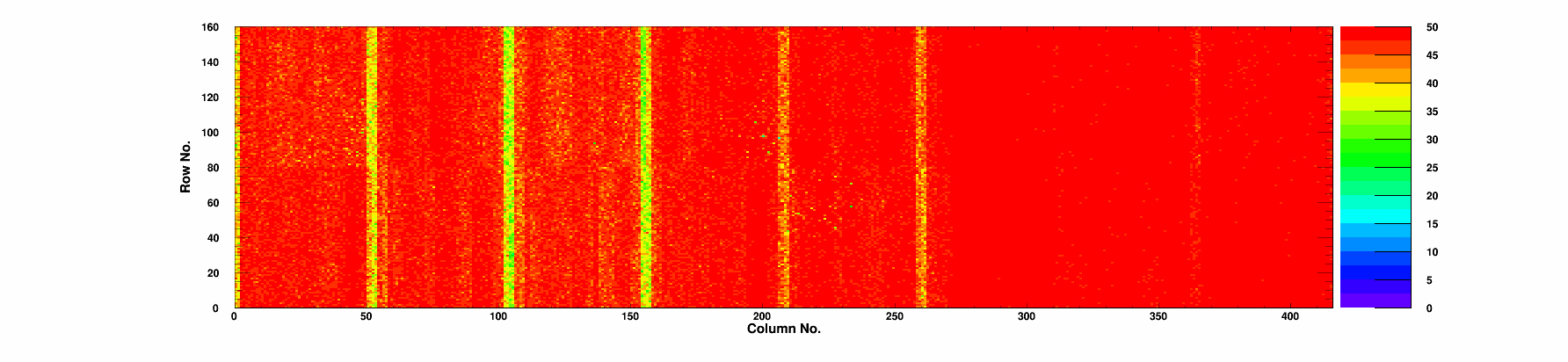

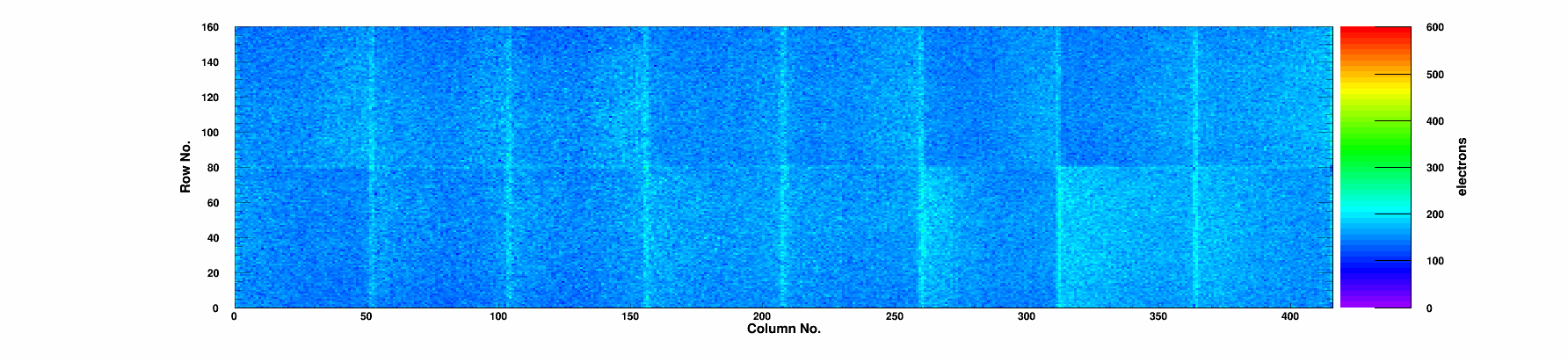

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.83 | 98.97 | 0.83 | 87.3 | 1 | 29.4 | 0/0 | 0 | 1997 | 163 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.86 | 99.29 | 0.72 | 84.6 | 0 | 28.0 | 0/0 | 0 | 1990 | 152 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.32 | 0.46 | 79.5 | 0 | 25.9 | 0/0 | 0 | 1970 | 151 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.89 | 99.34 | 0.65 | 136.1 | 0 | 47.1 | 0/0 | 0 | 2130 | 155 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.32 | 1.71 | 151.8 | 0 | 52.9 | 0/0 | 0 | 2174 | 151 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.87 | 99.38 | 0.61 | 201.0 | 0 | 72.1 | 0/0 | 0 | 2265 | 154 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.41 | 0.78 | 177.7 | 0 | 62.3 | 0/0 | 0 | 2194 | 153 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.89 | 99.37 | 0.8 | 186.4 | 0 | 66.0 | 0/0 | 0 | 2226 | 153 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.89 | 99.37 | 0.78 | 165.4 | 0 | 56.9 | 0/0 | 0 | 2169 | 148 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.33 | 0.57 | 176.2 | 0 | 61.8 | 0/0 | 0 | 2215 | 150 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.27 | 0.61 | 187.9 | 0 | 66.4 | 0/0 | 0 | 2235 | 153 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.87 | 99.28 | 0.91 | 155.5 | 1 | 53.5 | 0/0 | 0 | 2172 | 160 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.86 | 99.29 | 1.52 | 143.1 | 0 | 49.3 | 0/0 | 0 | 2136 | 157 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.85 | 99.29 | 0.43 | 82.7 | 0 | 27.2 | 0/0 | 0 | 1988 | 160 | 0 |
|
Chip 14
|
A
|
4 | 0 | 99.81 | 98.97 | 1.05 | 84.7 | 4 | 28.0 | 0/0 | 0 | 2004 | 172 | 0 |
|
Chip 15
|
A
|
7 | 0 | 99.86 | 99.25 | 0.59 | 81.0 | 7 | 27.1 | 0/0 | 0 | 1977 | 163 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-09-11 | |
| TestTime | Test Time | 16:58 | |
| TestDuration | Duration | 1:26:36 | |
| pXar | pXar version | prod-10+24~g09f6d2c | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
