Test Date: 2015-10-20 15:25
Analysis date: 2016-05-26 05:35
Analysis date: 2016-05-26 05:35
M2108 XRayHRQualification
Summary
| Module | Module | M2108 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 21 | |
| BumpBondingDefects | Bump Bonding Defects | 12 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

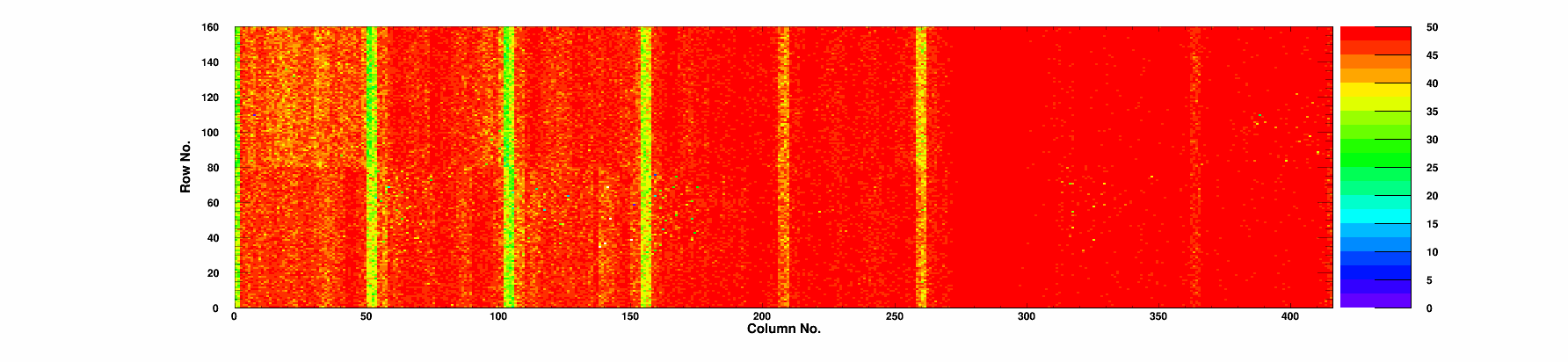

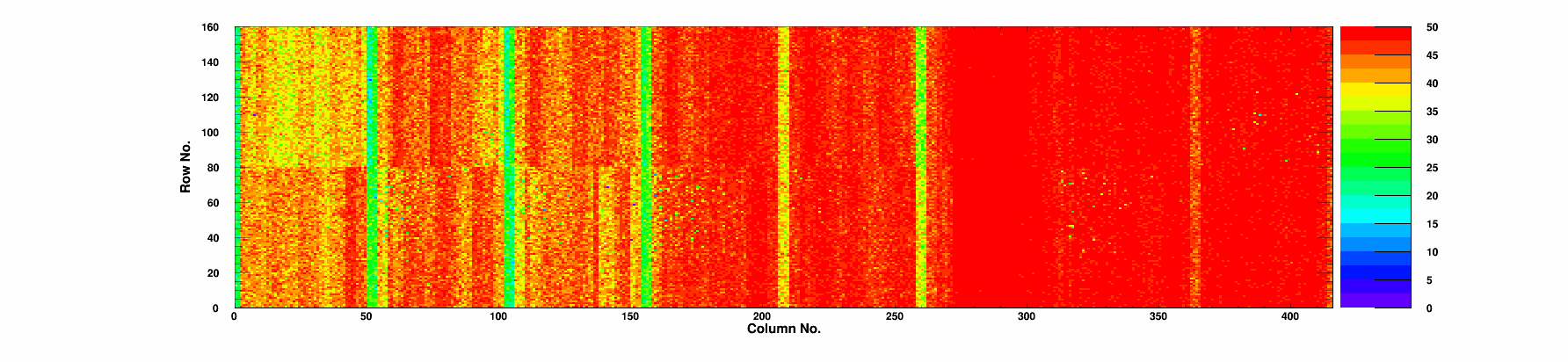

| Efficiency | Efficiency 50/120 | 99.86/99.28 | % |

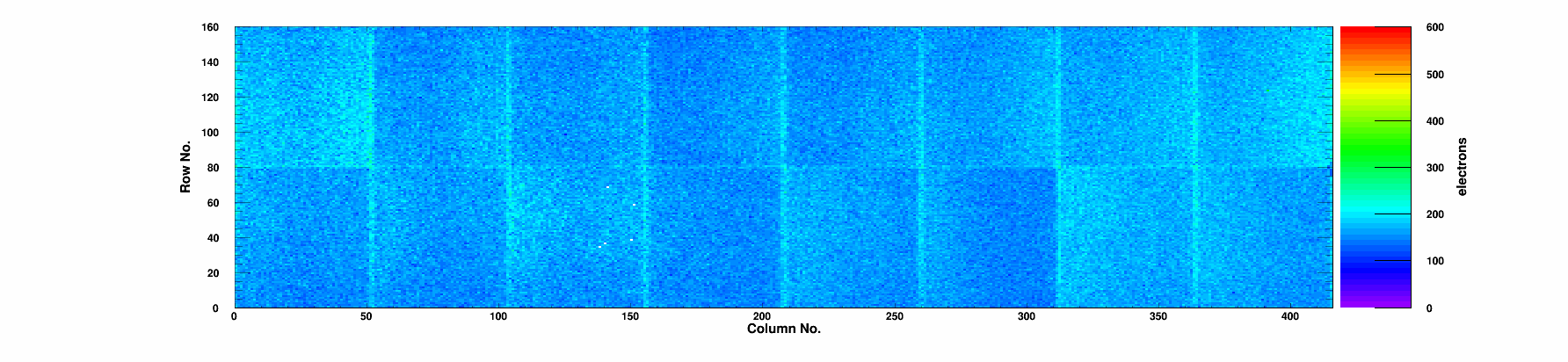

| Noise | Mean Noise | 163 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
5 | 0 | 99.87 | 99.22 | 1.34 | 35.0 | 102.3 | 5 | 0/0 | 0 | 1950 | 177 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.86 | 99.26 | 0.55 | 32.7 | 97.3 | 1 | 0/0 | 0 | 1935 | 169 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.30 | 0.8 | 30.7 | 92.7 | 0 | 0/0 | 0 | 1935 | 164 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.28 | 0.8 | 51.9 | 149.3 | 0 | 0/0 | 0 | 2109 | 157 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.85 | 99.26 | 0.59 | 49.7 | 144.9 | 0 | 0/0 | 0 | 2071 | 155 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.89 | 99.31 | 0.43 | 64.5 | 182.5 | 0 | 0/0 | 0 | 2143 | 159 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.35 | 0.56 | 66.8 | 190.5 | 0 | 0/0 | 0 | 2174 | 162 | 0 |
|
Chip 7
|
A
|
2 | 0 | 99.85 | 99.31 | 0.53 | 76.1 | 220.6 | 0 | 0/0 | 0 | 2158 | 178 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.86 | 99.35 | 0.8 | 68.2 | 195.1 | 0 | 0/0 | 0 | 2178 | 159 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.85 | 99.32 | 0.88 | 66.3 | 190.1 | 0 | 0/0 | 0 | 2173 | 160 | 0 |
|
Chip 10
|
A
|
6 | 0 | 99.84 | 99.26 | 1.31 | 69.5 | 197.1 | 0 | 0/0 | 0 | 2153 | 166 | 1 |
|
Chip 11
|
A
|
1 | 0 | 99.85 | 99.25 | 2.17 | 52.4 | 151.4 | 0 | 0/0 | 0 | 2104 | 154 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.36 | 0.68 | 48.4 | 141.0 | 0 | 0/0 | 0 | 2046 | 162 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.85 | 99.27 | 0.57 | 29.4 | 89.2 | 0 | 0/0 | 0 | 1966 | 153 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.84 | 99.13 | 1.91 | 35.1 | 103.6 | 1 | 0/0 | 0 | 1995 | 172 | 0 |
|
Chip 15
|
A
|
5 | 0 | 99.82 | 99.18 | 0.8 | 33.7 | 98.3 | 5 | 0/0 | 0 | 1990 | 165 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-10-20 | |
| TestTime | Test Time | 15:25 | |
| TestDuration | Duration | 1:30:24 | |
| pXar | pXar version | v2.6.0+21~ga0339e2 | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 12 | |
| nErrors | # Errors | 1509 | |
| nWarnings | # Warnings | 20 | |
| channel_0_count | Channel 0 | 66 | |
| channel_1_count | Channel 1 | 63 | |
| channel_2_count | Channel 2 | 28 | |
| channel_3_count | Channel 3 | 28 | |
| message_eventid_count | Event ID mismatch | 48 | |
| message_notokenpass_count | has NoTokenPass | 39 | |
| message_missingevents_count | Missing Event criticals | 6 | |
| message_tokenchain_count | Token Chain Length | 78 | |
| message_datasize_count | Data size criticals | 6 | |
| message_readback_count | Readback start marker | 20 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
