Test Date: 2015-12-08 13:49
Analysis date: 2016-05-26 06:48
Analysis date: 2016-05-26 06:48
M2122 XRayHRQualification
Summary
| Module | Module | M2122 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 82 | |
| BumpBondingDefects | Bump Bonding Defects | 6 | |
| NoisyPixels | Noisy Pixels | 39 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

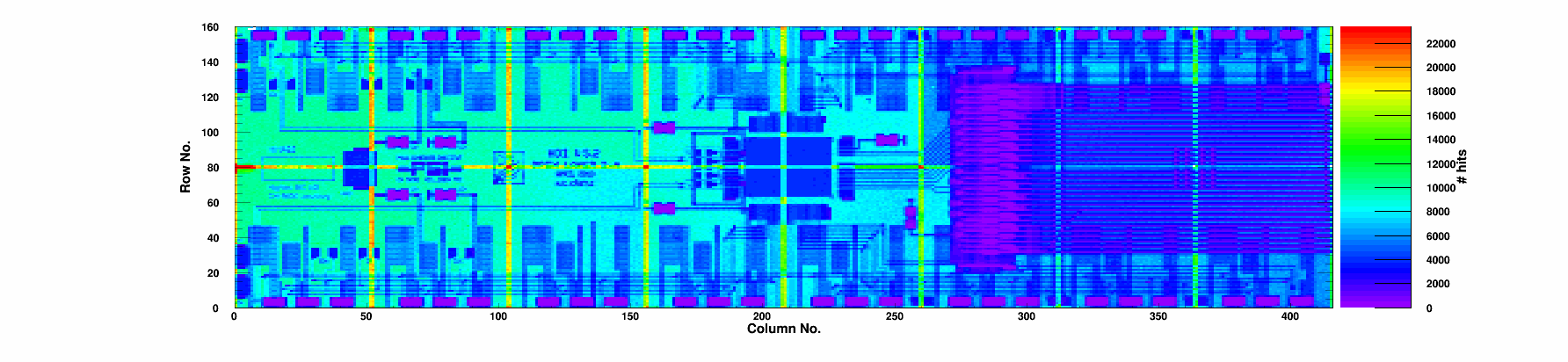

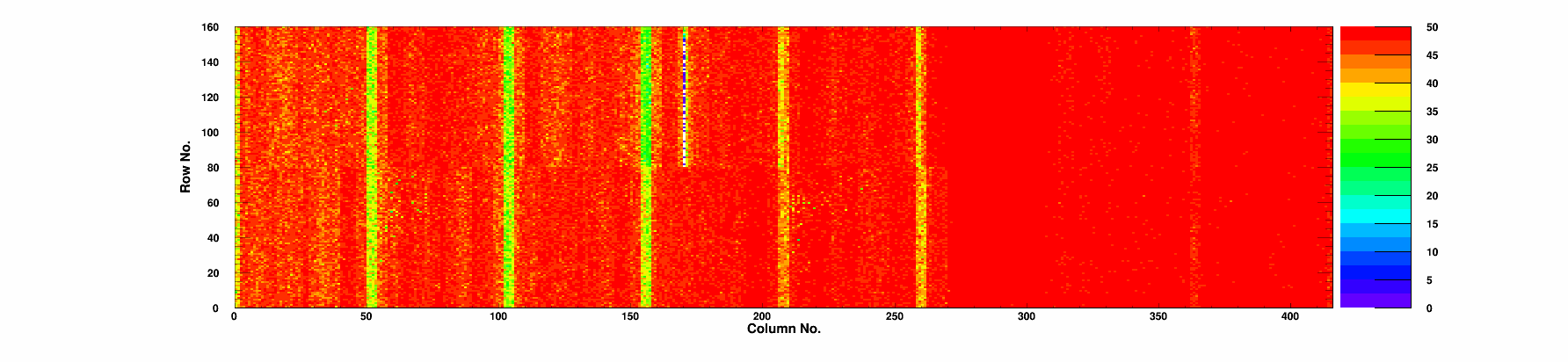

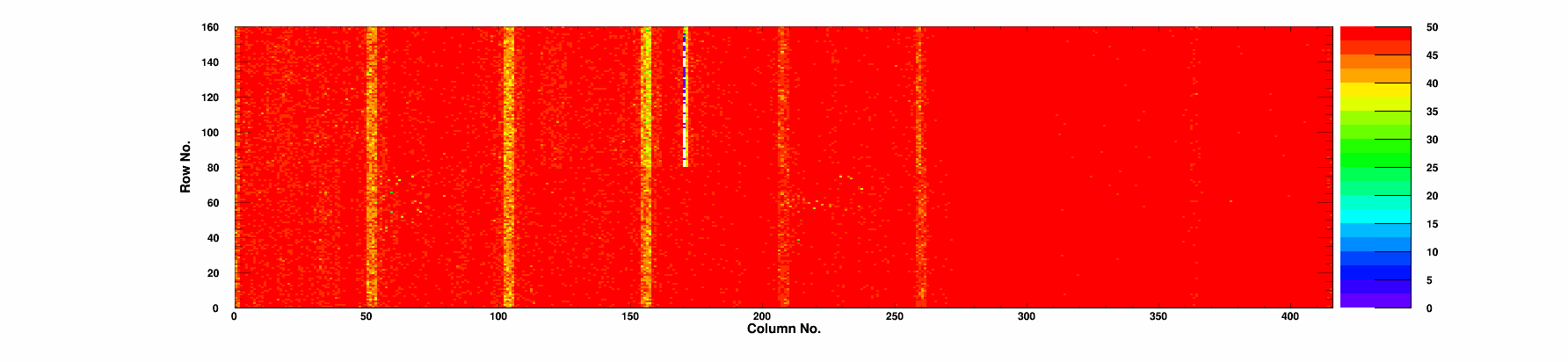

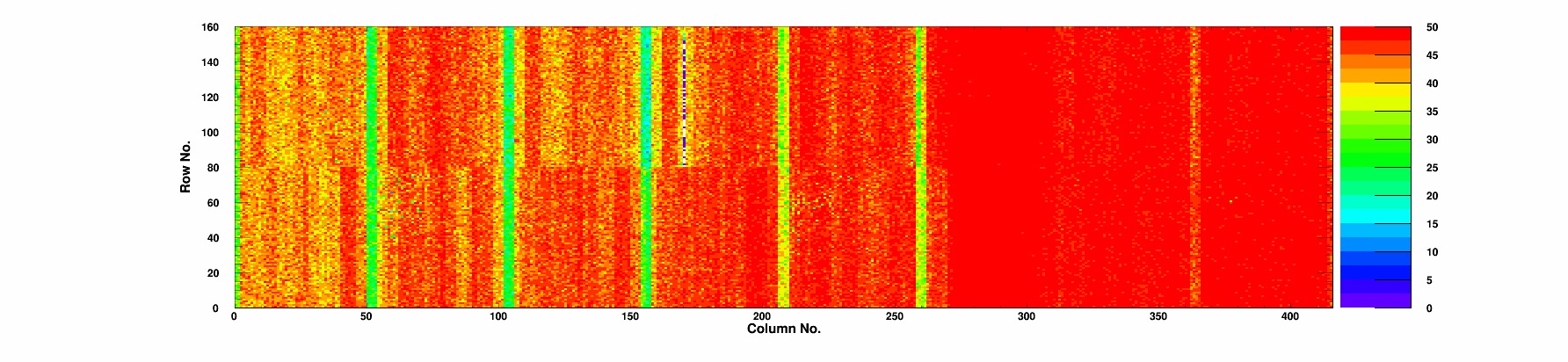

| Efficiency | Efficiency 50/120 | 99.87/99.31 | % |

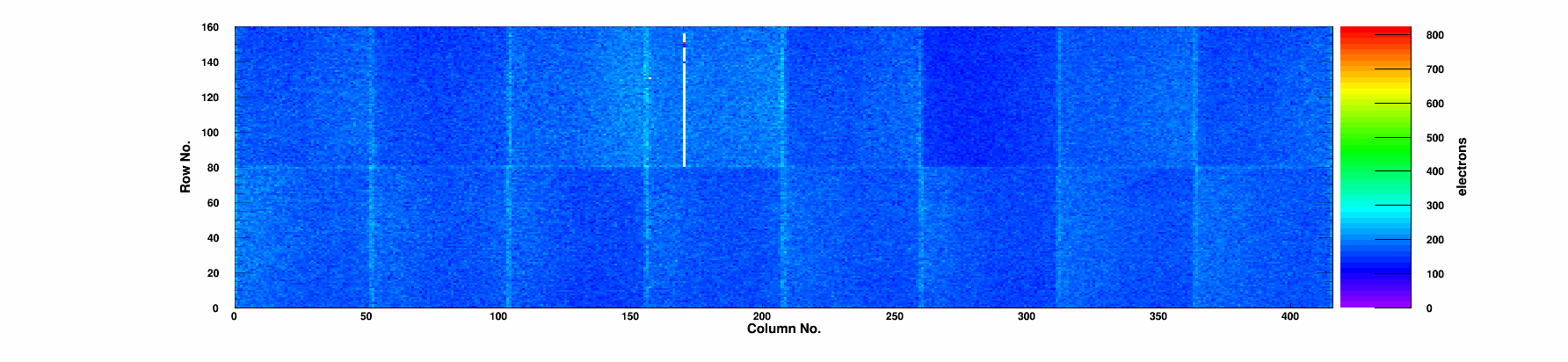

| Noise | Mean Noise | 171 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.87 | 99.32 | 0.36 | 98.3 | 1 | 33.6 | 0/0 | 0 | 1982 | 169 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.85 | 99.09 | 0.58 | 103.0 | 1 | 34.7 | 0/0 | 0 | 2020 | 176 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.88 | 99.36 | 0.34 | 78.0 | 0 | 25.2 | 0/0 | 0 | 1948 | 144 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.39 | 0.78 | 161.8 | 0 | 56.3 | 0/0 | 0 | 2192 | 169 | 0 |
|
Chip 4
|
C
|
76 | 1 | 99.86 | 99.30 | 0.69 | 172.3 | 0 | 59.4 | 0/0 | 0 | 1511 | 192 | 39 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.39 | 0.5 | 206.9 | 0 | 72.8 | 0/0 | 0 | 2256 | 186 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.35 | 0.57 | 188.1 | 0 | 65.5 | 0/0 | 0 | 2198 | 161 | 0 |
|
Chip 7
|
A
|
4 | 0 | 99.87 | 99.35 | 0.49 | 209.2 | 4 | 72.8 | 0/0 | 0 | 2227 | 171 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.37 | 0.52 | 204.3 | 0 | 71.0 | 0/0 | 0 | 2243 | 177 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.86 | 99.28 | 1.78 | 190.6 | 0 | 66.2 | 0/0 | 0 | 2213 | 172 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.39 | 0.72 | 185.3 | 0 | 65.3 | 0/0 | 0 | 2211 | 164 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.86 | 99.35 | 0.63 | 164.4 | 0 | 56.8 | 0/0 | 0 | 2159 | 169 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.85 | 99.23 | 1.97 | 153.1 | 0 | 52.6 | 0/0 | 0 | 2124 | 170 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.87 | 99.35 | 0.47 | 88.5 | 0 | 29.4 | 0/0 | 0 | 2001 | 164 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 99.05 | 0.9 | 93.4 | 0 | 31.4 | 0/0 | 0 | 1998 | 171 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.89 | 99.35 | 0.42 | 95.1 | 0 | 32.5 | 0/0 | 0 | 2017 | 174 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-12-08 | |
| TestTime | Test Time | 13:49 | |
| TestDuration | Duration | 1:40:25 | |
| pXar | pXar version | prod-12 | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 6 | |
| nErrors | # Errors | 716 | |
| nWarnings | # Warnings | 18 | |
| channel_0_count | Channel 0 | 13 | |
| channel_1_count | Channel 1 | 12 | |
| channel_2_count | Channel 2 | 38 | |
| channel_3_count | Channel 3 | 31 | |
| message_eventid_count | Event ID mismatch | 16 | |
| message_notokenpass_count | has NoTokenPass | 10 | |
| message_missingevents_count | Missing Event criticals | 3 | |
| message_tokenchain_count | Token Chain Length | 50 | |
| message_datasize_count | Data size criticals | 3 | |
| message_readback_count | Readback start marker | 18 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
