Test Date: 2015-12-16 10:28
Analysis date: 2016-05-26 07:18
Analysis date: 2016-05-26 07:18
M2127 XRayHRQualification
| Comment | Comment | comments.txt: ROC5 COL4+5 masked for HRScurves! |
Summary
| Module | Module | M2127 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 132 | |
| BumpBondingDefects | Bump Bonding Defects | 12 | |
| NoisyPixels | Noisy Pixels | 92 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

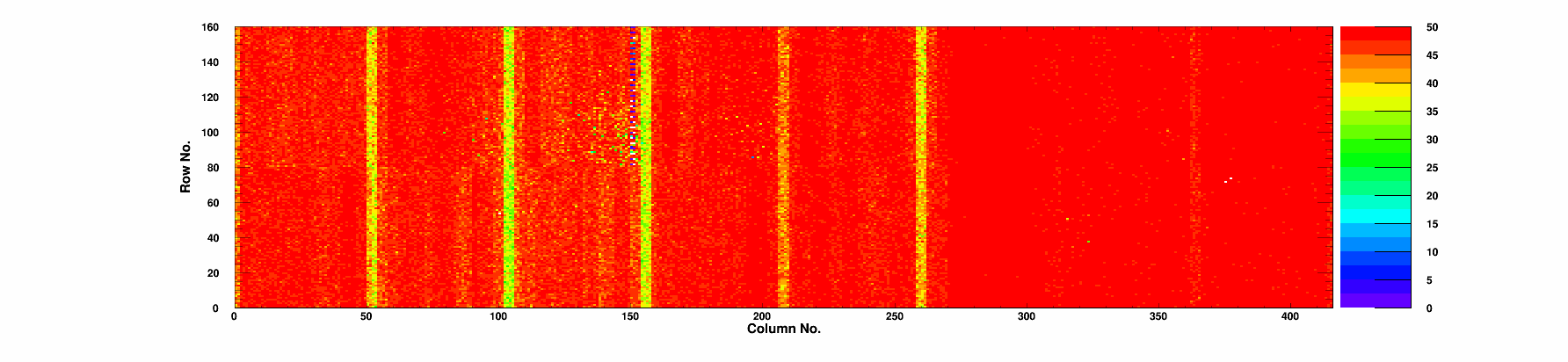

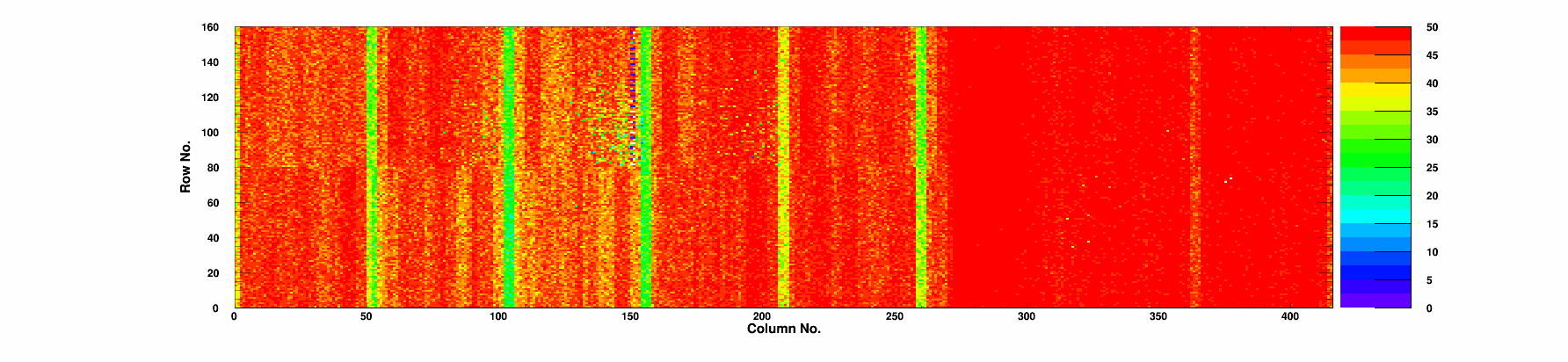

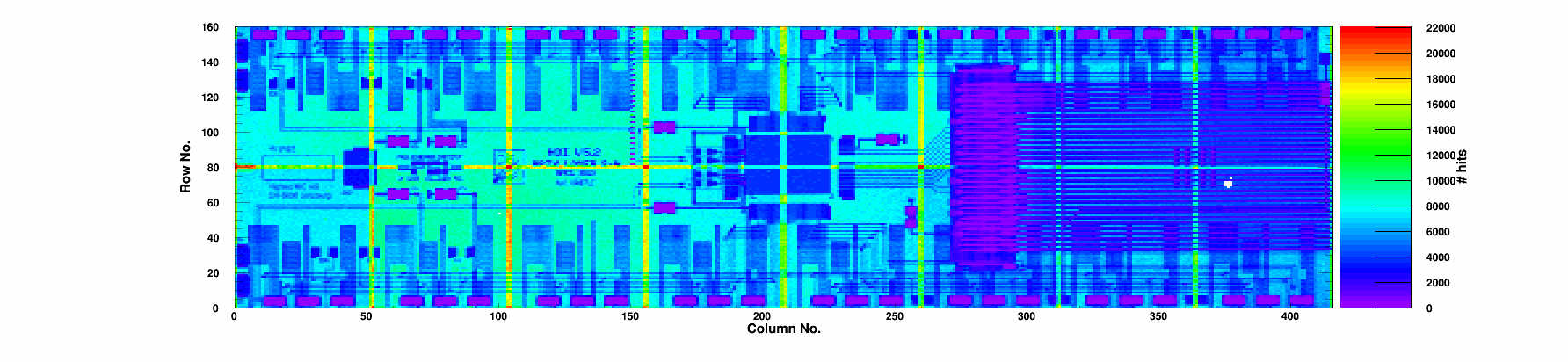

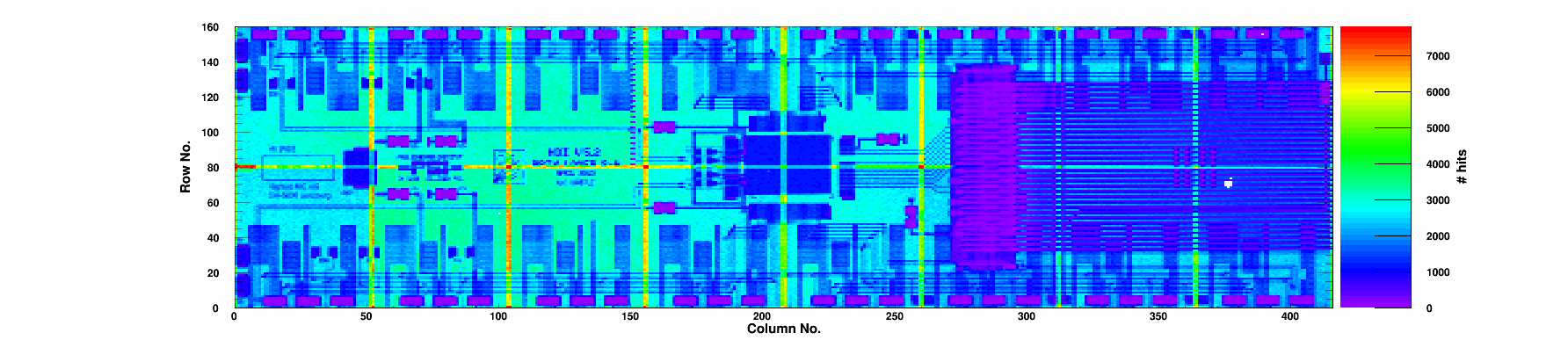

| Efficiency | Efficiency 50/120 | 99.86/99.30 | % |

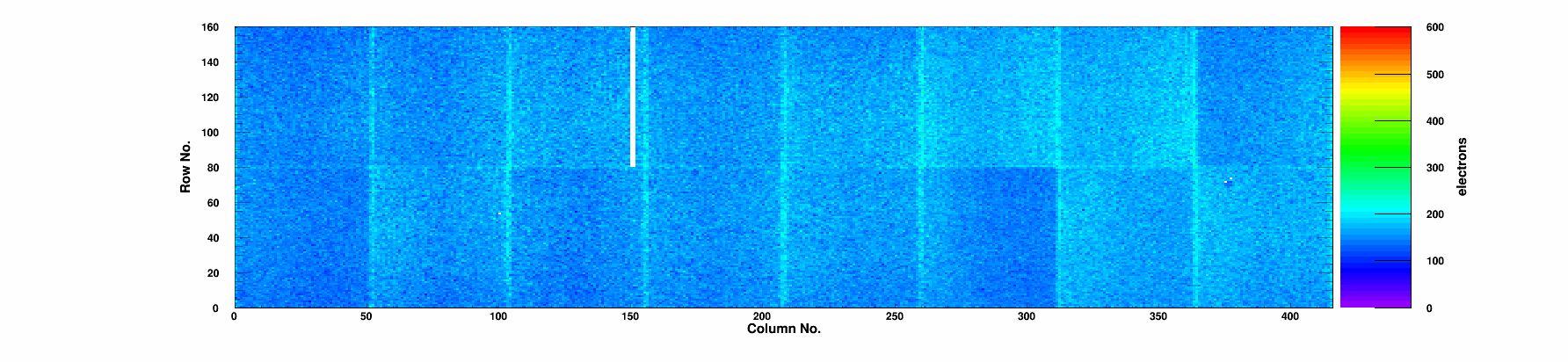

| Noise | Mean Noise | 159 | e- |
Summary ROCs

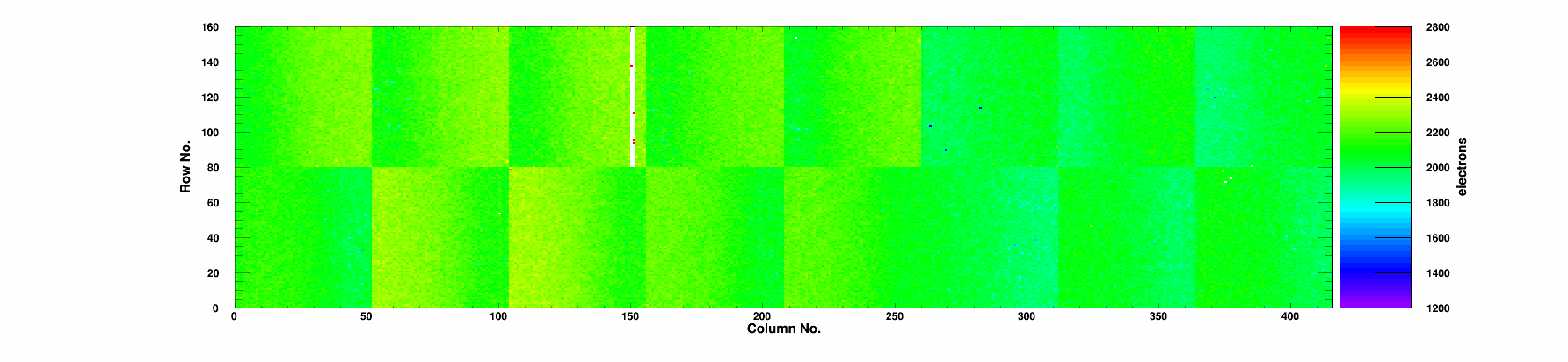

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.86 | 99.33 | 0.53 | 30.6 | 89.7 | 0 | 0/0 | 0 | 2015 | 158 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.88 | 99.29 | 0.49 | 34.7 | 102.2 | 0 | 0/0 | 0 | 2053 | 174 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.28 | 0.38 | 31.5 | 94.5 | 0 | 0/0 | 0 | 2027 | 173 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.84 | 99.34 | 0.59 | 54.5 | 156.3 | 0 | 0/0 | 0 | 2157 | 165 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.85 | 99.29 | 1.81 | 54.6 | 156.3 | 0 | 0/0 | 0 | 2176 | 156 | 0 |
|
Chip 5
|
C
|
118 | 1 | 99.79 | 99.16 | 3.41 | 66.5 | 187.6 | 1 | 0/0 | 0 | 623 | 164 | 89 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.36 | 0.45 | 58.5 | 167.9 | 0 | 0/0 | 0 | 2202 | 155 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.85 | 99.31 | 0.54 | 60.0 | 172.1 | 1 | 0/0 | 0 | 2193 | 148 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.87 | 99.38 | 0.54 | 54.2 | 158.3 | 0 | 0/0 | 0 | 2098 | 145 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.88 | 99.38 | 0.65 | 65.2 | 186.1 | 1 | 0/0 | 0 | 2185 | 158 | 1 |
|
Chip 10
|
A
|
0 | 0 | 99.85 | 99.35 | 0.71 | 69.6 | 196.8 | 0 | 0/0 | 0 | 2233 | 152 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.89 | 99.35 | 0.64 | 53.7 | 154.9 | 0 | 0/0 | 0 | 2157 | 156 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.86 | 99.29 | 0.75 | 52.7 | 151.6 | 0 | 0/0 | 0 | 2154 | 160 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.06 | 0.52 | 27.6 | 83.7 | 0 | 0/0 | 0 | 2003 | 150 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.85 | 99.29 | 0.62 | 34.7 | 102.3 | 0 | 0/0 | 0 | 2031 | 166 | 0 |
|
Chip 15
|
A
|
11 | 0 | 99.88 | 99.31 | 0.47 | 34.9 | 101.3 | 9 | 0/0 | 0 | 1975 | 168 | 2 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-12-16 | |
| TestTime | Test Time | 10:28 | |
| TestDuration | Duration | 2:36:22 | |
| pXar | pXar version | prod-12 | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 207 | |
| nErrors | # Errors | 10903 | |
| nWarnings | # Warnings | 14383 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 16257 | |
| channel_2_count | Channel 2 | 2 | |
| channel_3_count | Channel 3 | 2 | |
| message_eventid_count | Event ID mismatch | 936 | |
| message_notokenpass_count | has NoTokenPass | 42 | |
| message_missingevents_count | Missing Event criticals | 35 | |
| message_tokenchain_count | Token Chain Length | 900 | |
| message_datasize_count | Data size criticals | 172 | |
| message_readback_count | Readback start marker | 14383 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
