Test Date: 2016-01-14 13:30
Analysis date: 2016-05-26 08:08
Analysis date: 2016-05-26 08:08
M2135 XRayHRQualification
Summary
| Module | Module | M2135 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 7 | |
| BumpBondingDefects | Bump Bonding Defects | 6 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.28 | % |
| Noise | Mean Noise | 163 | e- |

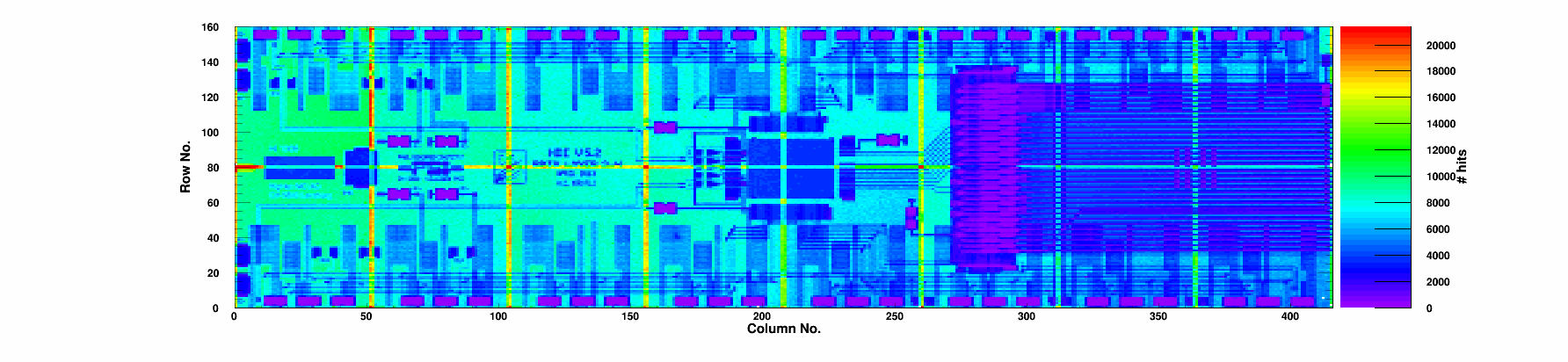

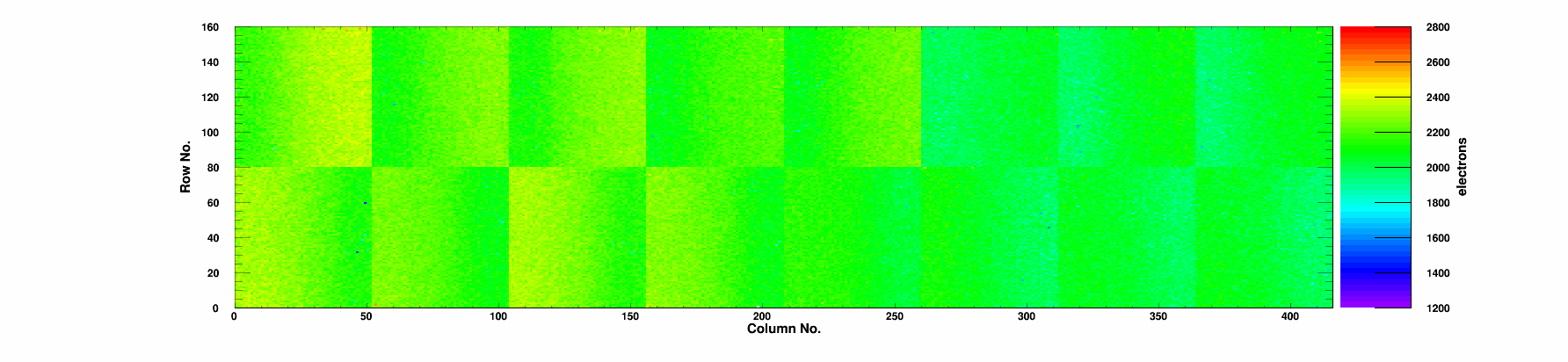

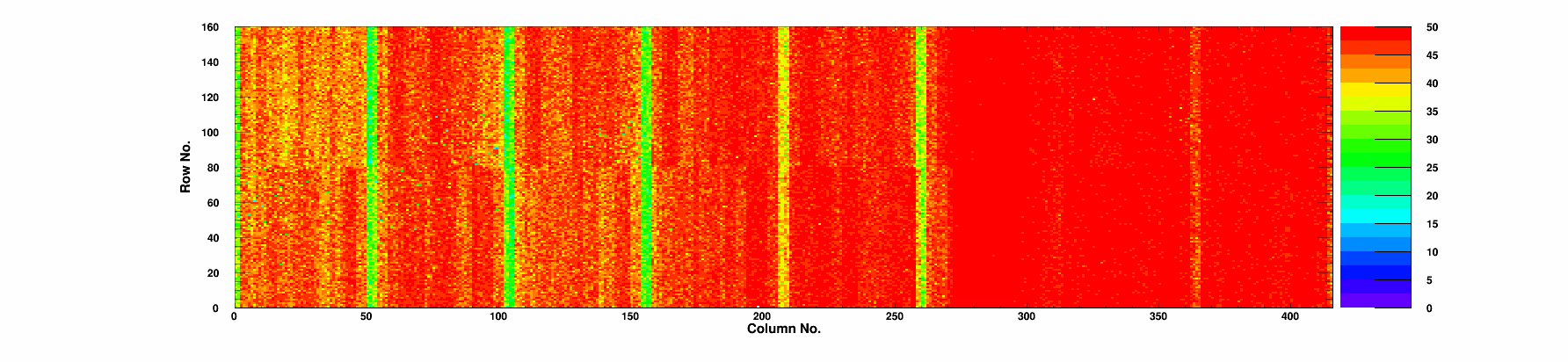

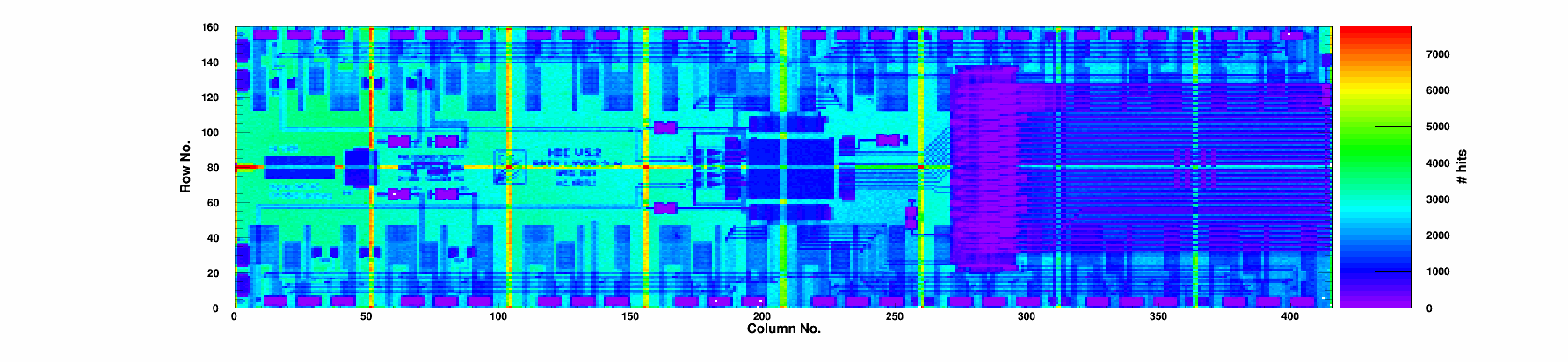

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
2 | 0 | 99.87 | 99.29 | 0.53 | 97.3 | 2 | 33.2 | 0/0 | 0 | 2028 | 163 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.26 | 0.69 | 99.8 | 0 | 33.7 | 0/0 | 0 | 2036 | 165 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.33 | 0.5 | 90.3 | 0 | 30.1 | 0/0 | 0 | 2016 | 162 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.25 | 0.83 | 149.6 | 0 | 52.2 | 0/0 | 0 | 2172 | 159 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.33 | 0.7 | 155.2 | 0 | 53.8 | 0/0 | 0 | 2151 | 159 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.85 | 99.33 | 0.83 | 179.2 | 0 | 63.5 | 0/0 | 0 | 2213 | 155 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.28 | 0.75 | 177.4 | 0 | 61.9 | 0/0 | 0 | 2199 | 159 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.84 | 99.31 | 0.58 | 201.9 | 1 | 69.2 | 0/0 | 0 | 2272 | 169 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.86 | 99.32 | 1.22 | 187.8 | 0 | 64.8 | 0/0 | 0 | 2236 | 176 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.85 | 99.28 | 1.08 | 167.6 | 0 | 58.3 | 0/0 | 0 | 2181 | 164 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.35 | 0.6 | 188.8 | 0 | 66.6 | 0/0 | 0 | 2237 | 158 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.87 | 99.34 | 0.43 | 160.9 | 0 | 55.6 | 0/0 | 0 | 2151 | 161 | 1 |
|
Chip 12
|
A
|
1 | 0 | 99.88 | 99.31 | 0.66 | 133.5 | 1 | 45.7 | 0/0 | 0 | 2098 | 158 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.27 | 0.52 | 93.7 | 0 | 31.1 | 0/0 | 0 | 2041 | 169 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.86 | 99.25 | 0.55 | 92.4 | 0 | 31.0 | 0/0 | 0 | 2026 | 159 | 0 |
|
Chip 15
|
A
|
2 | 0 | 99.84 | 99.03 | 0.78 | 93.0 | 2 | 31.6 | 0/0 | 0 | 2022 | 170 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-01-14 | |
| TestTime | Test Time | 13:30 | |
| TestDuration | Duration | 1:30:28 | |
| pXar | pXar version | prod-12 | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
