Test Date: 2016-01-13 15:45
Analysis date: 2016-05-26 08:20
Analysis date: 2016-05-26 08:20
M2138 XRayHRQualification
Summary
| Module | Module | M2138 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 125 | |
| BumpBondingDefects | Bump Bonding Defects | 121 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.88/99.28 | % |
| Noise | Mean Noise | 166 | e- |

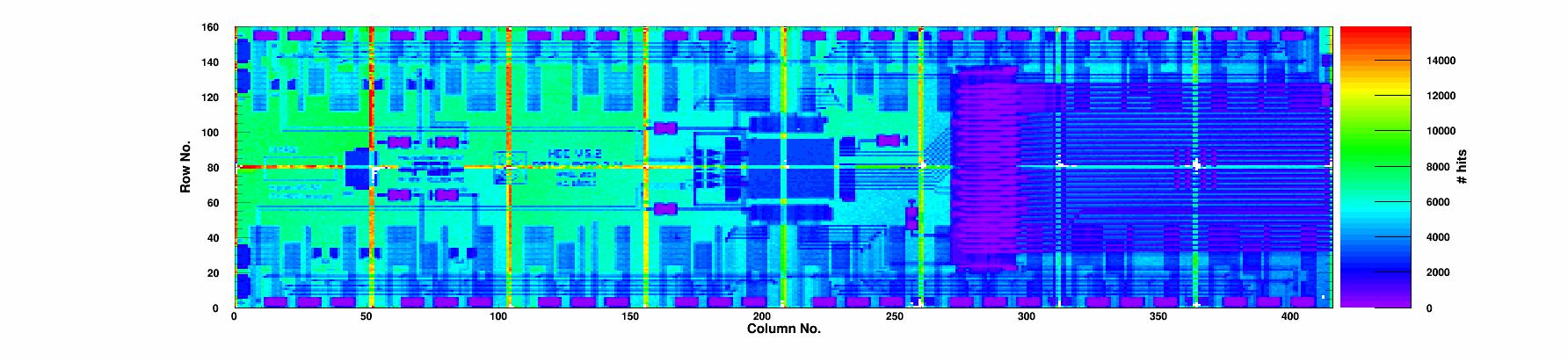

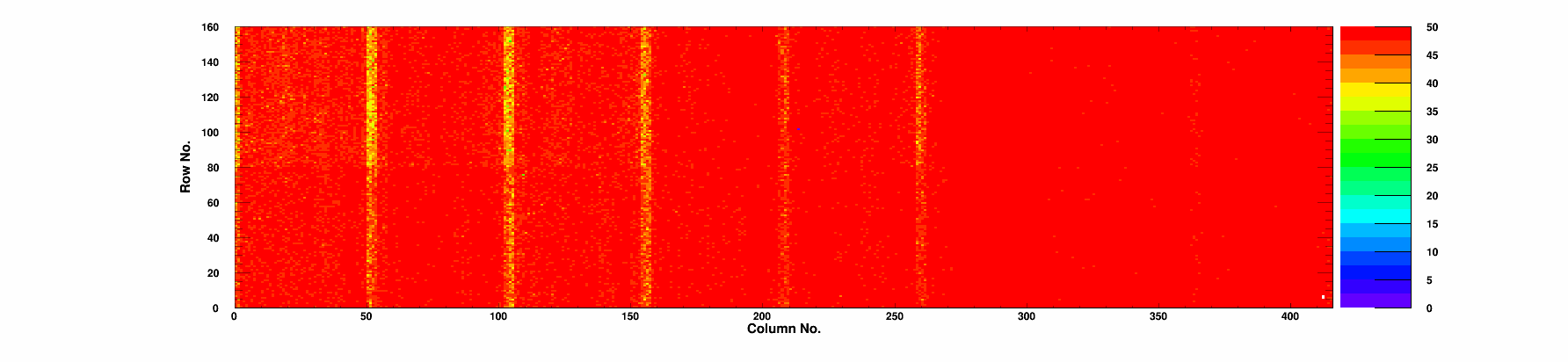

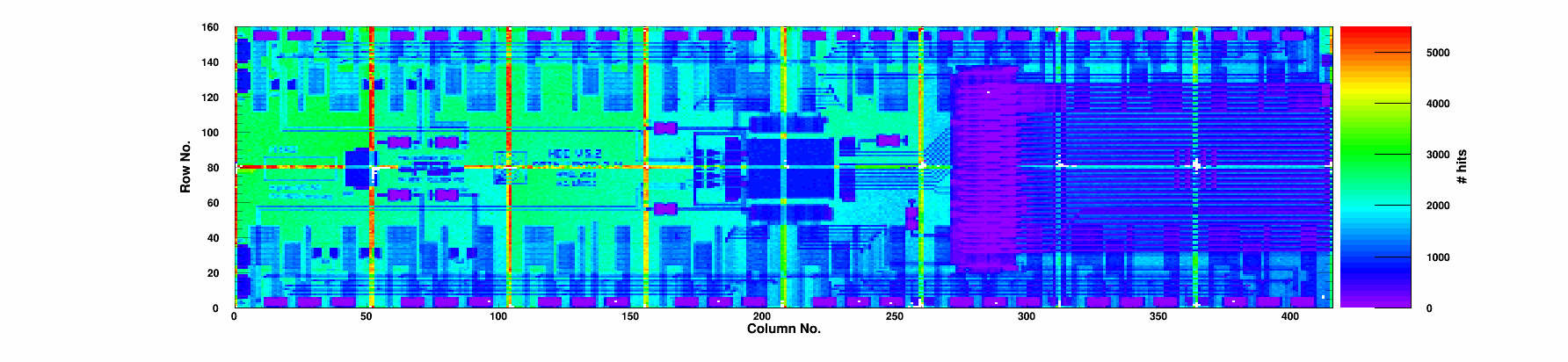

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
14 | 0 | 99.87 | 99.18 | 0.51 | 69.2 | 14 | 22.8 | 0/0 | 0 | 1951 | 173 | 0 |
|
Chip 1
|
A
|
18 | 0 | 99.86 | 99.31 | 0.52 | 75.2 | 18 | 24.8 | 0/0 | 0 | 1967 | 159 | 0 |
|
Chip 2
|
A
|
10 | 0 | 99.89 | 99.33 | 0.34 | 63.1 | 10 | 20.2 | 0/0 | 0 | 1932 | 161 | 0 |
|
Chip 3
|
A
|
6 | 0 | 99.88 | 99.33 | 0.51 | 126.1 | 5 | 43.2 | 0/0 | 0 | 2116 | 172 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.89 | 99.39 | 0.54 | 114.5 | 1 | 38.9 | 0/0 | 0 | 2077 | 164 | 0 |
|
Chip 5
|
A
|
5 | 0 | 99.87 | 99.35 | 0.87 | 153.4 | 5 | 54.0 | 0/0 | 0 | 2146 | 165 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.24 | 0.41 | 141.6 | 0 | 49.2 | 0/0 | 0 | 2130 | 164 | 0 |
|
Chip 7
|
A
|
4 | 0 | 99.86 | 99.23 | 0.82 | 162.2 | 4 | 56.7 | 0/0 | 0 | 2164 | 164 | 0 |
|
Chip 8
|
A
|
7 | 0 | 99.89 | 99.31 | 0.51 | 143.1 | 7 | 49.7 | 0/0 | 0 | 2131 | 163 | 0 |
|
Chip 9
|
A
|
18 | 0 | 99.89 | 99.39 | 0.49 | 122.5 | 17 | 42.1 | 0/0 | 0 | 2092 | 162 | 1 |
|
Chip 10
|
A
|
8 | 0 | 99.89 | 99.39 | 0.47 | 144.3 | 8 | 50.4 | 0/0 | 0 | 2149 | 167 | 0 |
|
Chip 11
|
A
|
4 | 0 | 99.87 | 99.25 | 0.86 | 111.6 | 4 | 37.8 | 0/0 | 0 | 2064 | 164 | 0 |
|
Chip 12
|
A
|
10 | 0 | 99.86 | 99.18 | 0.39 | 99.6 | 10 | 33.3 | 0/0 | 0 | 2029 | 167 | 0 |
|
Chip 13
|
A
|
3 | 0 | 99.87 | 99.31 | 0.27 | 59.6 | 3 | 19.2 | 0/0 | 0 | 1929 | 165 | 0 |
|
Chip 14
|
A
|
5 | 0 | 99.88 | 99.28 | 0.46 | 68.1 | 5 | 22.2 | 0/0 | 0 | 1966 | 172 | 0 |
|
Chip 15
|
A
|
12 | 0 | 99.86 | 99.00 | 0.35 | 64.8 | 10 | 21.2 | 0/0 | 0 | 1876 | 176 | 2 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-01-13 | |
| TestTime | Test Time | 15:45 | |
| TestDuration | Duration | 1:33:0 | |
| pXar | pXar version | prod-12 | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
