Module | Module | M2139 | |
Grade | Grade | A | |
ManualGrade | Manual Grade | None | |
ROCGrades | ROC Grades A/B/C | 16/0/0 | |
PixelDefects | Total Pixel Defects | 124 | |
BumpBondingDefects | Bump Bonding Defects | 123 | |
NoisyPixels | Noisy Pixels | 1 | |
HotPixelDefects | Hot Pixels | 0 | |
ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

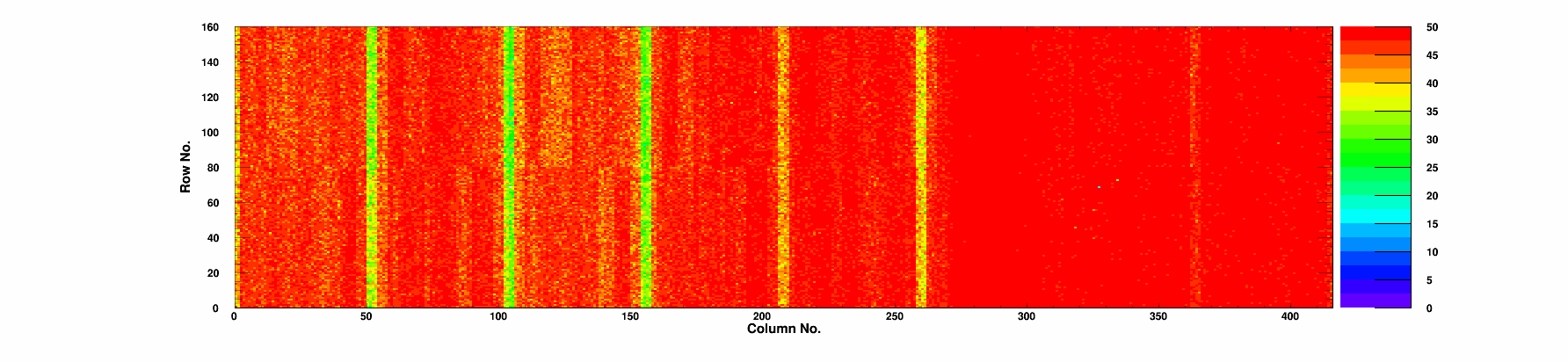

Efficiency | Efficiency 50/120 | 99.87/99.29 | % |

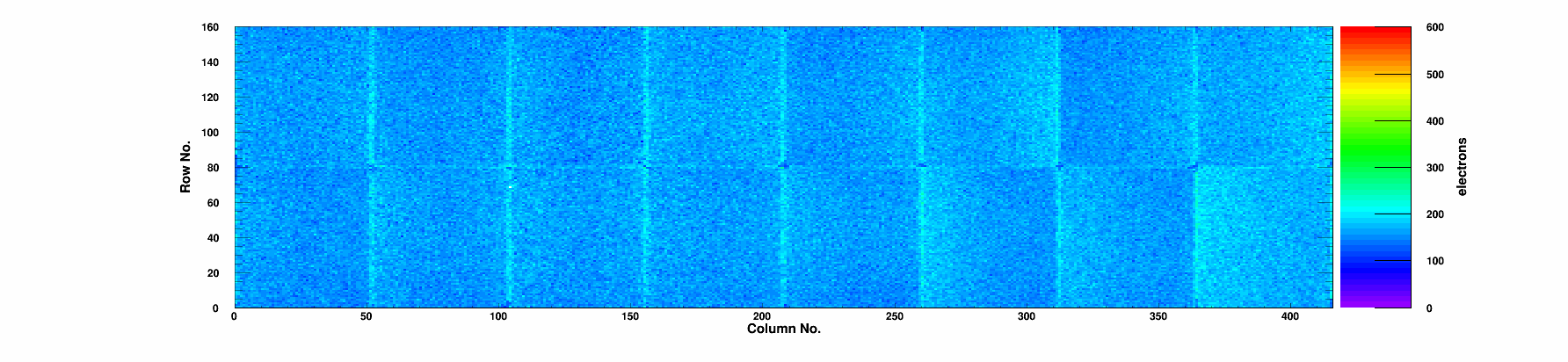

Noise | Mean Noise | 163 | e- |
ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chip 0
|
A
|
12 | 0 | 99.88 | 99.36 | 0.45 | 83.5 | 12 | 27.7 | 0/0 | 0 | 1990 | 170 | 0 |
Chip 1
|
A
|
8 | 0 | 99.84 | 98.99 | 0.67 | 82.9 | 8 | 27.0 | 0/0 | 0 | 1987 | 159 | 0 |
Chip 2
|
A
|
7 | 0 | 99.87 | 99.33 | 0.46 | 84.6 | 7 | 27.7 | 0/0 | 0 | 1994 | 167 | 0 |
Chip 3
|
A
|
10 | 0 | 99.89 | 99.34 | 0.63 | 131.4 | 10 | 44.8 | 0/0 | 0 | 2107 | 160 | 0 |
Chip 4
|
A
|
5 | 0 | 99.87 | 99.34 | 0.53 | 141.5 | 5 | 48.4 | 0/0 | 0 | 2139 | 166 | 0 |
Chip 5
|
A
|
2 | 0 | 99.89 | 99.32 | 0.68 | 178.4 | 2 | 62.5 | 0/0 | 0 | 2220 | 159 | 0 |
Chip 6
|
A
|
6 | 0 | 99.87 | 99.28 | 0.56 | 154.4 | 6 | 52.8 | 0/0 | 0 | 2151 | 158 | 0 |
Chip 7
|
A
|
13 | 0 | 99.87 | 99.34 | 0.7 | 163.7 | 13 | 55.8 | 0/0 | 0 | 2149 | 160 | 0 |
Chip 8
|
A
|
17 | 0 | 99.88 | 99.32 | 0.73 | 153.8 | 17 | 52.4 | 0/0 | 0 | 2142 | 157 | 0 |
Chip 9
|
A
|
16 | 0 | 99.88 | 99.37 | 0.59 | 153.4 | 16 | 52.7 | 0/0 | 0 | 2140 | 161 | 0 |
Chip 10
|
A
|
3 | 0 | 99.88 | 99.35 | 0.78 | 171.4 | 2 | 59.9 | 0/0 | 0 | 2143 | 163 | 1 |
Chip 11
|
A
|
3 | 0 | 99.87 | 99.32 | 0.65 | 140.6 | 3 | 48.1 | 0/0 | 0 | 2132 | 161 | 0 |
Chip 12
|
A
|
2 | 0 | 99.88 | 99.34 | 0.5 | 126.1 | 2 | 42.8 | 0/0 | 0 | 2083 | 161 | 0 |
Chip 13
|
A
|
0 | 0 | 99.86 | 99.38 | 0.44 | 77.2 | 0 | 25.1 | 0/0 | 0 | 1976 | 164 | 0 |
Chip 14
|
A
|
7 | 0 | 99.87 | 99.27 | 0.9 | 82.2 | 7 | 26.9 | 0/0 | 0 | 1986 | 164 | 0 |
Chip 15
|
A
|
13 | 0 | 99.84 | 99.03 | 0.75 | 81.9 | 13 | 27.2 | 0/0 | 0 | 1977 | 176 | 0 |
TestCenter | Test Center | ETHZ | |
TestDate | Test Date | 2016-01-13 | |
TestTime | Test Time | 15:45 | |
TestDuration | Duration | 1:33:0 | |
pXar | pXar version | prod-12 | |
DTB_FW | DTB FW | 4.5 |
nCriticals | # Criticals | 2 | |
nErrors | # Errors | 1202 | |
nWarnings | # Warnings | 23 | |
channel_0_count | Channel 0 | 32 | |
channel_1_count | Channel 1 | 41 | |
channel_2_count | Channel 2 | 37 | |
channel_3_count | Channel 3 | 43 | |
message_eventid_count | Event ID mismatch | 21 | |
message_notokenpass_count | has NoTokenPass | 18 | |
message_missingevents_count | Missing Event criticals | 1 | |
message_tokenchain_count | Token Chain Length | 91 | |
message_datasize_count | Data size criticals | 1 | |
message_readback_count | Readback start marker | 23 |
