Test Date: 2016-01-18 14:11
Analysis date: 2016-05-26 08:38
Analysis date: 2016-05-26 08:38
M2141 XRayHRQualification

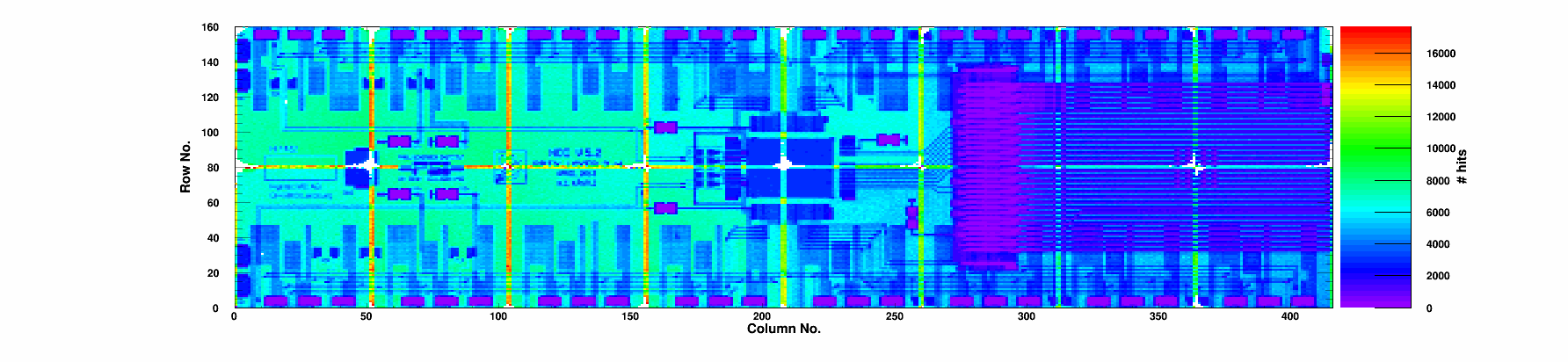

Summary
| Module | Module | M2141 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 14/2/0 | |
| PixelDefects | Total Pixel Defects | 400 | |
| BumpBondingDefects | Bump Bonding Defects | 400 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.88/99.32 | % |
| Noise | Mean Noise | 174 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
40 | 0 | 99.87 | 99.39 | 0.4 | 22.8 | 69.4 | 40 | 0/0 | 0 | 1913 | 184 | 0 |
|
Chip 1
|
A
|
28 | 0 | 99.84 | 99.08 | 0.51 | 23.5 | 71.9 | 28 | 0/0 | 0 | 1948 | 177 | 0 |
|
Chip 2
|
A
|
18 | 0 | 99.87 | 99.36 | 0.67 | 20.8 | 64.1 | 18 | 0/0 | 0 | 1919 | 173 | 0 |
|
Chip 3
|
B
|
46 | 0 | 99.90 | 99.42 | 0.46 | 41.4 | 121.7 | 46 | 0/0 | 0 | 2073 | 184 | 0 |
|
Chip 4
|
A
|
23 | 0 | 99.89 | 99.38 | 0.55 | 41.5 | 122.1 | 23 | 0/0 | 0 | 2047 | 176 | 0 |
|
Chip 5
|
A
|
32 | 0 | 99.88 | 99.38 | 0.5 | 52.7 | 152.4 | 32 | 0/0 | 0 | 2118 | 178 | 0 |
|
Chip 6
|
A
|
35 | 0 | 99.89 | 99.38 | 0.63 | 50.5 | 147.2 | 35 | 0/0 | 0 | 2119 | 180 | 0 |
|
Chip 7
|
B
|
84 | 0 | 99.88 | 99.39 | 0.71 | 51.9 | 151.8 | 84 | 0/0 | 0 | 2107 | 181 | 0 |
|
Chip 8
|
A
|
32 | 0 | 99.85 | 99.24 | 1.89 | 49.4 | 142.5 | 32 | 0/0 | 0 | 2105 | 170 | 0 |
|
Chip 9
|
A
|
5 | 0 | 99.90 | 99.35 | 0.61 | 52.5 | 151.5 | 5 | 0/0 | 0 | 2148 | 171 | 0 |
|
Chip 10
|
A
|
14 | 0 | 99.88 | 99.37 | 0.7 | 54.6 | 157.4 | 14 | 0/0 | 0 | 2144 | 170 | 0 |
|
Chip 11
|
A
|
11 | 0 | 99.87 | 99.34 | 0.58 | 47.0 | 138.0 | 11 | 0/0 | 0 | 2113 | 172 | 0 |
|
Chip 12
|
A
|
4 | 0 | 99.88 | 99.35 | 0.34 | 38.9 | 114.5 | 4 | 0/0 | 0 | 2067 | 166 | 0 |
|
Chip 13
|
A
|
5 | 0 | 99.87 | 99.36 | 0.55 | 21.4 | 65.6 | 5 | 0/0 | 0 | 1925 | 170 | 0 |
|
Chip 14
|
A
|
3 | 0 | 99.86 | 99.01 | 0.62 | 24.2 | 73.9 | 3 | 0/0 | 0 | 1950 | 169 | 0 |
|
Chip 15
|
A
|
20 | 0 | 99.87 | 99.31 | 0.51 | 24.5 | 73.7 | 20 | 0/0 | 0 | 1959 | 170 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-01-18 | |
| TestTime | Test Time | 14:11 | |
| TestDuration | Duration | 1:32:41 | |
| pXar | pXar version | prod-12 | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 2 | |
| nErrors | # Errors | 102 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 4 | |
| channel_3_count | Channel 3 | 2 | |
| message_eventid_count | Event ID mismatch | 1 | |
| message_notokenpass_count | has NoTokenPass | 1 | |
| message_missingevents_count | Missing Event criticals | 1 | |
| message_tokenchain_count | Token Chain Length | 4 | |
| message_datasize_count | Data size criticals | 1 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
