Test Date: 2016-02-17 14:21
Analysis date: 2016-05-26 09:08
Analysis date: 2016-05-26 09:08
M2146 XRayHRQualification
Summary
| Module | Module | M2146 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 51 | |
| BumpBondingDefects | Bump Bonding Defects | 50 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

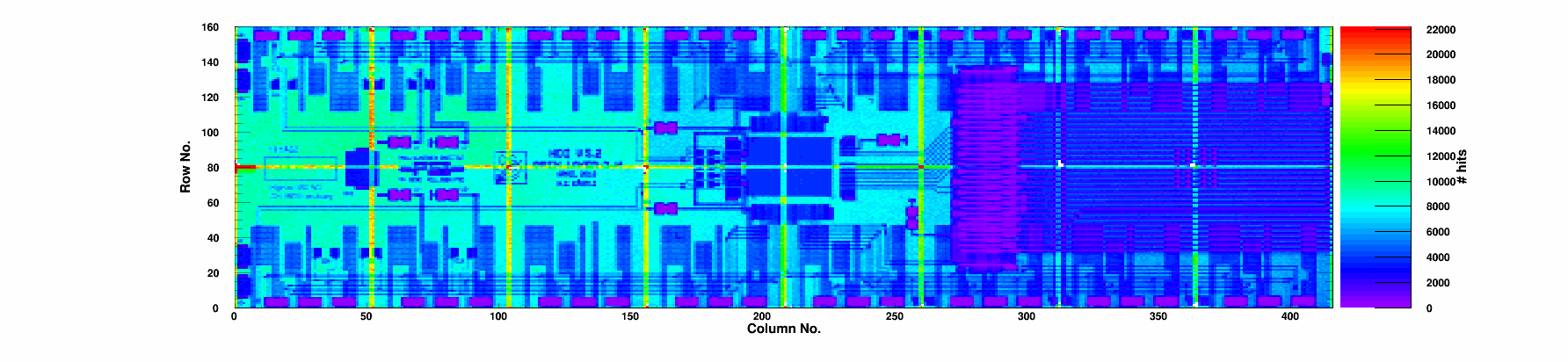

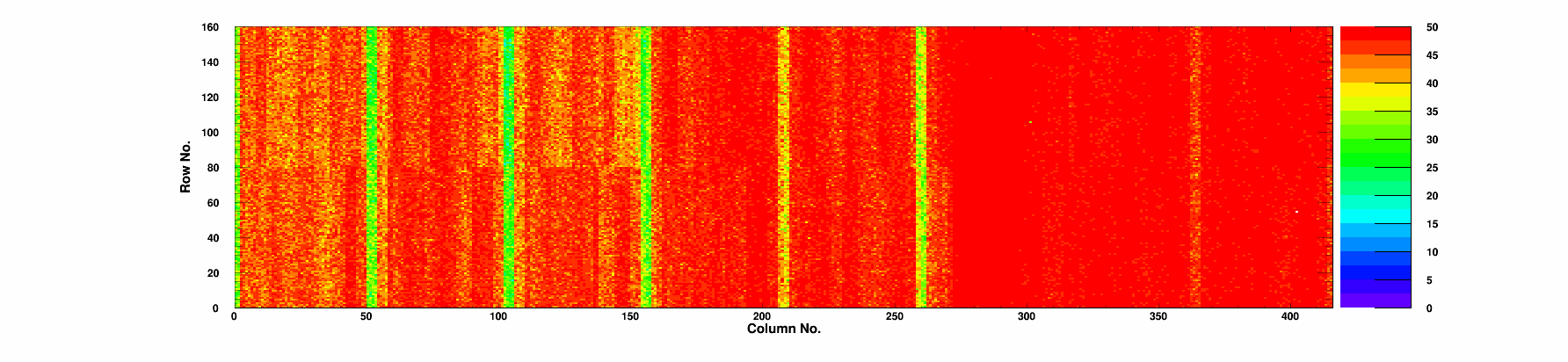

| Efficiency | Efficiency 50/120 | 99.87/99.29 | % |
| Noise | Mean Noise | 167 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.86 | 99.23 | 0.64 | 30.7 | 90.4 | 0 | 0/0 | 0 | 1986 | 167 | 0 |
|
Chip 1
|
A
|
14 | 0 | 99.86 | 99.27 | 0.5 | 31.2 | 93.5 | 14 | 0/0 | 0 | 1966 | 180 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.39 | 0.54 | 28.2 | 85.6 | 0 | 0/0 | 0 | 1918 | 169 | 0 |
|
Chip 3
|
A
|
7 | 0 | 99.89 | 99.35 | 0.57 | 50.4 | 145.4 | 7 | 0/0 | 0 | 2108 | 173 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.87 | 99.37 | 0.56 | 46.5 | 137.3 | 1 | 0/0 | 0 | 2048 | 168 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.13 | 5.45 | 63.4 | 178.5 | 0 | 0/0 | 0 | 2148 | 161 | 0 |
|
Chip 6
|
A
|
2 | 0 | 99.89 | 99.38 | 0.65 | 62.3 | 178.7 | 2 | 0/0 | 0 | 2157 | 169 | 0 |
|
Chip 7
|
A
|
4 | 0 | 99.89 | 99.36 | 0.5 | 66.0 | 189.5 | 4 | 0/0 | 0 | 2168 | 163 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.41 | 0.53 | 63.6 | 182.2 | 0 | 0/0 | 0 | 2158 | 163 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.89 | 99.38 | 0.69 | 57.9 | 166.7 | 0 | 0/0 | 0 | 2097 | 161 | 0 |
|
Chip 10
|
A
|
10 | 0 | 99.90 | 99.40 | 0.8 | 61.7 | 175.7 | 10 | 0/0 | 0 | 2156 | 160 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.89 | 99.40 | 0.44 | 50.9 | 148.1 | 1 | 0/0 | 0 | 2119 | 169 | 0 |
|
Chip 12
|
A
|
4 | 0 | 99.87 | 99.37 | 0.49 | 49.4 | 143.8 | 4 | 0/0 | 0 | 2104 | 167 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.85 | 99.06 | 0.52 | 26.5 | 81.1 | 1 | 0/0 | 0 | 1936 | 164 | 0 |
|
Chip 14
|
A
|
3 | 0 | 99.85 | 99.03 | 0.66 | 28.5 | 86.0 | 3 | 0/0 | 0 | 1927 | 166 | 0 |
|
Chip 15
|
A
|
4 | 0 | 99.84 | 99.08 | 0.69 | 30.3 | 89.6 | 3 | 0/0 | 0 | 1979 | 168 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-02-17 | |
| TestTime | Test Time | 14:21 | |
| TestDuration | Duration | 1:13:52 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 6299 | |
| nWarnings | # Warnings | 20 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 2019 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 1999 | |
| message_readback_count | Readback start marker | 20 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
