Test Date: 2016-02-08 16:09
Analysis date: 2016-05-26 09:38
Analysis date: 2016-05-26 09:38
M2151 XRayHRQualification
Summary
| Module | Module | M2151 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 252 | |

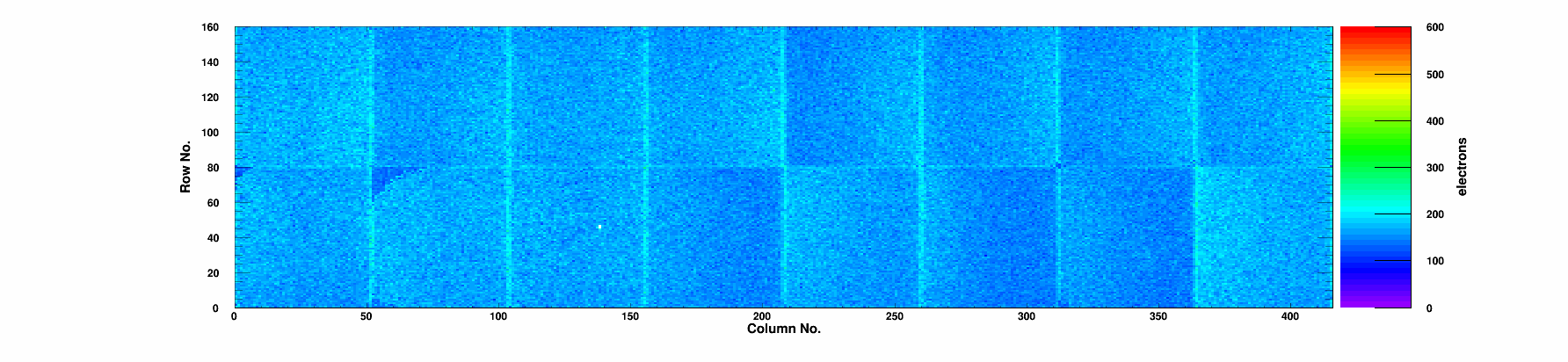

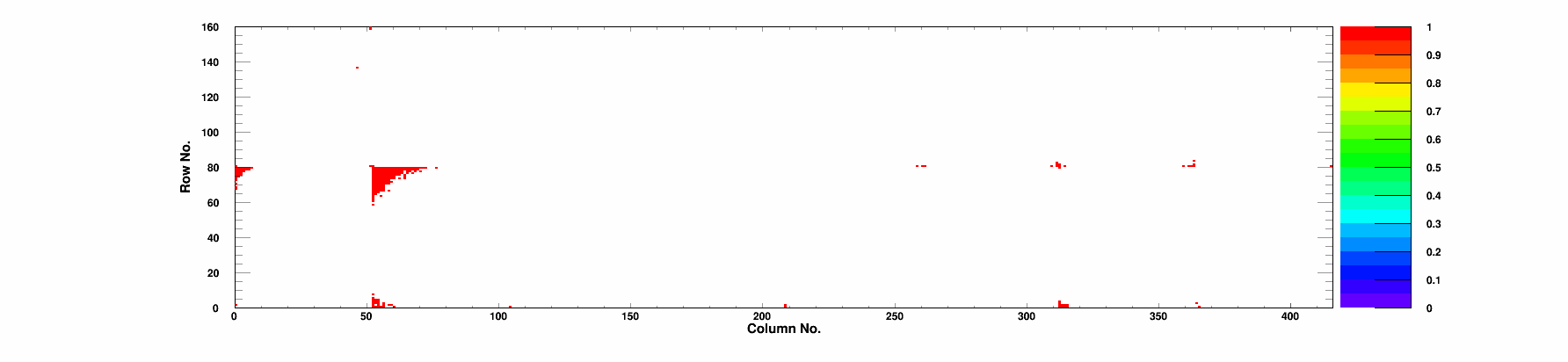

| BumpBondingDefects | Bump Bonding Defects | 250 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.28 | % |
| Noise | Mean Noise | 163 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.88 | 99.36 | 0.27 | 21.4 | 65.3 | 1 | 0/0 | 0 | 1945 | 164 | 0 |
|
Chip 1
|
A
|
9 | 0 | 99.86 | 99.15 | 0.57 | 20.3 | 63.0 | 9 | 0/0 | 0 | 1932 | 160 | 0 |
|
Chip 2
|
A
|
6 | 0 | 99.89 | 99.38 | 0.39 | 18.4 | 57.5 | 6 | 0/0 | 0 | 1924 | 162 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.85 | 99.12 | 0.63 | 33.3 | 99.4 | 1 | 0/0 | 0 | 2039 | 159 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.26 | 0.49 | 38.1 | 112.2 | 0 | 0/0 | 0 | 2061 | 166 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.37 | 0.5 | 44.3 | 128.2 | 0 | 0/0 | 0 | 2093 | 164 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.88 | 99.40 | 0.46 | 44.9 | 130.2 | 1 | 0/0 | 0 | 2091 | 163 | 0 |
|
Chip 7
|
A
|
5 | 0 | 99.87 | 99.25 | 0.87 | 45.9 | 133.1 | 5 | 0/0 | 0 | 2088 | 171 | 0 |
|
Chip 8
|
A
|
31 | 0 | 99.87 | 99.34 | 0.79 | 50.7 | 146.1 | 31 | 0/0 | 0 | 2130 | 165 | 0 |
|
Chip 9
|
C
|
180 | 0 | 99.87 | 99.32 | 0.65 | 46.0 | 133.5 | 180 | 0/0 | 0 | 2095 | 167 | 0 |
|
Chip 10
|
A
|
3 | 0 | 99.88 | 99.39 | 0.64 | 51.3 | 147.1 | 1 | 0/0 | 0 | 2078 | 166 | 2 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.28 | 0.56 | 35.2 | 106.3 | 0 | 0/0 | 0 | 2048 | 155 | 0 |
|
Chip 12
|
A
|
2 | 0 | 99.88 | 99.37 | 0.3 | 35.8 | 106.7 | 2 | 0/0 | 0 | 2029 | 164 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.89 | 99.37 | 0.33 | 19.0 | 59.9 | 0 | 0/0 | 0 | 1921 | 152 | 0 |
|
Chip 14
|
A
|
11 | 0 | 99.86 | 99.06 | 0.5 | 20.3 | 63.8 | 11 | 0/0 | 0 | 1930 | 153 | 0 |
|
Chip 15
|
A
|
2 | 0 | 99.86 | 99.05 | 0.6 | 23.6 | 71.8 | 2 | 0/0 | 0 | 1944 | 171 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-02-08 | |
| TestTime | Test Time | 16:09 | |
| TestDuration | Duration | 1:23:4 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 34 | |
| nWarnings | # Warnings | 10 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 5 | |
| channel_2_count | Channel 2 | 5 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_readback_count | Readback start marker | 8 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
