Test Date: 2016-02-24 09:58
Analysis date: 2016-05-26 10:40
Analysis date: 2016-05-26 10:40
M2162 XRayHRQualification
Summary
| Module | Module | M2162 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 16 | |
| BumpBondingDefects | Bump Bonding Defects | 15 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

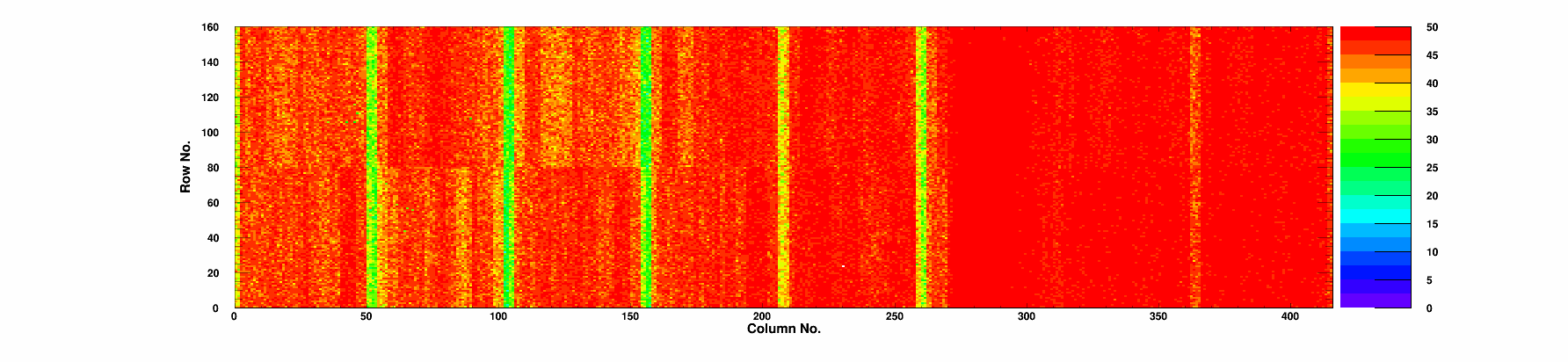

| Efficiency | Efficiency 50/120 | 99.87/99.28 | % |

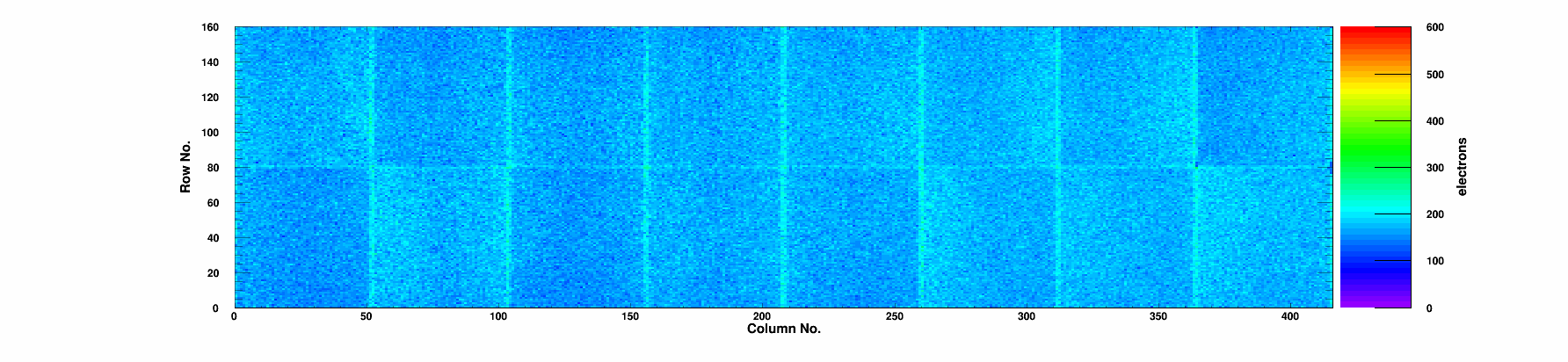

| Noise | Mean Noise | 169 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
8 | 0 | 99.84 | 99.03 | 0.65 | 31.9 | 93.0 | 8 | 0/0 | 0 | 2001 | 167 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.84 | 99.07 | 0.57 | 33.8 | 99.5 | 0 | 0/0 | 0 | 2024 | 173 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.10 | 0.6 | 28.6 | 86.2 | 0 | 0/0 | 0 | 1983 | 173 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.33 | 0.53 | 46.7 | 135.6 | 0 | 0/0 | 0 | 2109 | 172 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.23 | 0.52 | 53.0 | 152.9 | 0 | 0/0 | 0 | 2161 | 168 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.90 | 99.36 | 0.62 | 68.0 | 192.3 | 0 | 0/0 | 0 | 2227 | 165 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.38 | 0.61 | 57.7 | 165.4 | 0 | 0/0 | 0 | 2170 | 164 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.88 | 99.36 | 1.02 | 61.7 | 176.3 | 0 | 0/0 | 0 | 2203 | 171 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.89 | 99.37 | 0.65 | 58.5 | 169.0 | 1 | 0/0 | 0 | 2155 | 160 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.88 | 99.41 | 0.61 | 66.0 | 189.0 | 1 | 0/0 | 0 | 2242 | 175 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.90 | 99.39 | 0.59 | 57.9 | 165.4 | 0 | 0/0 | 0 | 2184 | 161 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.35 | 0.51 | 54.8 | 156.7 | 0 | 0/0 | 0 | 2178 | 169 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.89 | 99.38 | 0.57 | 47.0 | 136.9 | 0 | 0/0 | 0 | 2114 | 166 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.16 | 0.7 | 30.8 | 91.8 | 0 | 0/0 | 0 | 2031 | 173 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.86 | 99.24 | 0.54 | 32.3 | 95.0 | 0 | 0/0 | 0 | 2029 | 173 | 0 |
|
Chip 15
|
A
|
5 | 0 | 99.88 | 99.34 | 0.41 | 34.6 | 99.7 | 5 | 0/0 | 0 | 2040 | 177 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-02-24 | |
| TestTime | Test Time | 09:58 | |
| TestDuration | Duration | 1:26:39 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 34 | |
| nWarnings | # Warnings | 10 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 5 | |
| channel_3_count | Channel 3 | 5 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_readback_count | Readback start marker | 8 |
