Module | Module | M2166 | |
Grade | Grade | A | |
ManualGrade | Manual Grade | None | |
ROCGrades | ROC Grades A/B/C | 16/0/0 | |
PixelDefects | Total Pixel Defects | 8 | |
BumpBondingDefects | Bump Bonding Defects | 5 | |
NoisyPixels | Noisy Pixels | 1 | |
HotPixelDefects | Hot Pixels | 0 | |
ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

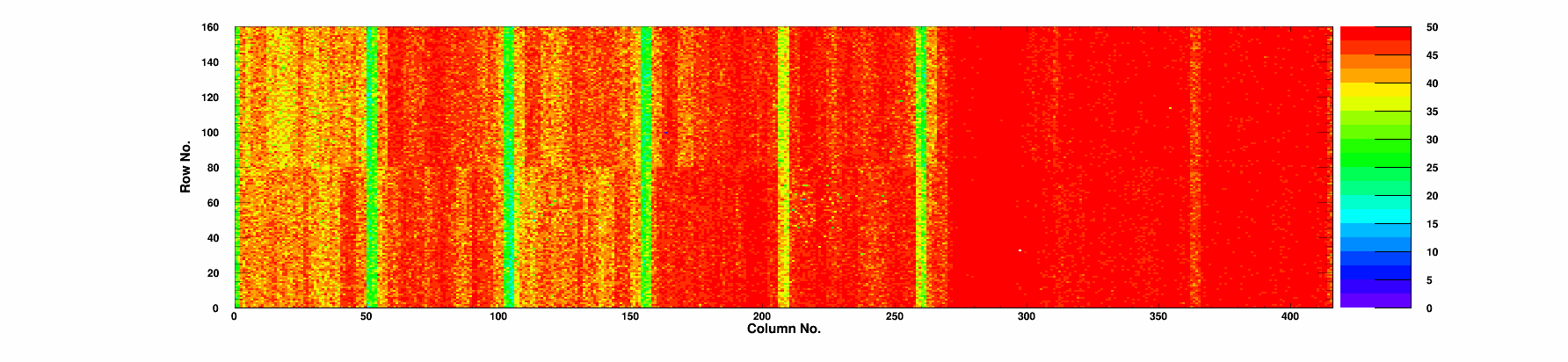

Efficiency | Efficiency 50/120 | 99.87/99.28 | % |
Noise | Mean Noise | 172 | e- |

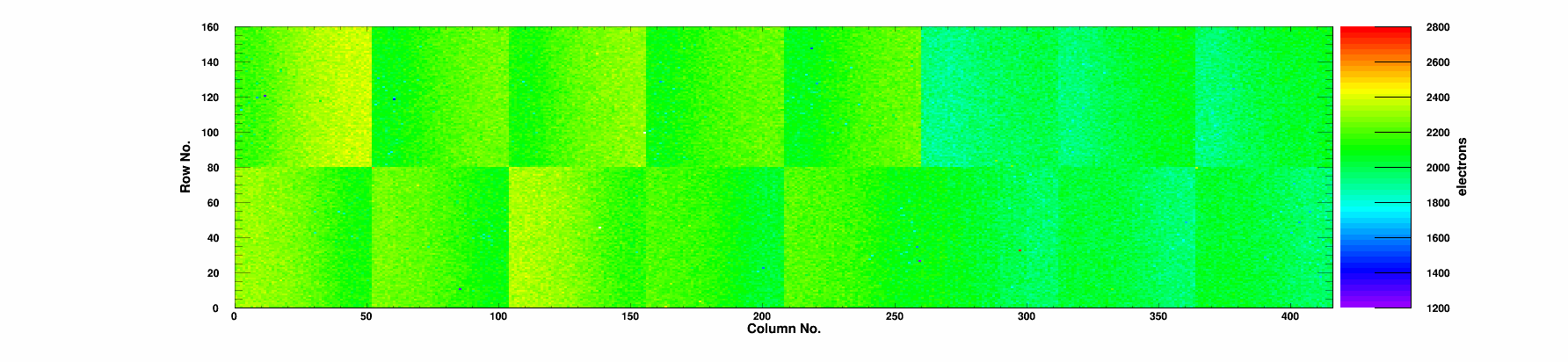

ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chip 0
|
A
|
0 | 0 | 99.87 | 99.30 | 0.44 | 32.3 | 95.0 | 0 | 0/0 | 0 | 2002 | 178 | 0 |
Chip 1
|
A
|
1 | 0 | 99.87 | 99.32 | 0.44 | 32.2 | 96.3 | 1 | 0/0 | 0 | 2008 | 173 | 0 |
Chip 2
|
A
|
0 | 0 | 99.83 | 99.03 | 0.76 | 31.5 | 95.1 | 0 | 0/0 | 0 | 1958 | 188 | 0 |
Chip 3
|
A
|
0 | 0 | 99.87 | 99.37 | 0.69 | 53.2 | 153.0 | 0 | 0/0 | 0 | 2156 | 170 | 0 |
Chip 4
|
A
|
1 | 0 | 99.88 | 99.32 | 0.98 | 56.8 | 163.8 | 0 | 0/0 | 0 | 2167 | 170 | 0 |
Chip 5
|
A
|
1 | 0 | 99.90 | 99.32 | 1.09 | 67.2 | 190.7 | 1 | 0/0 | 0 | 2214 | 167 | 0 |
Chip 6
|
A
|
0 | 0 | 99.87 | 99.36 | 0.52 | 59.4 | 172.2 | 0 | 0/0 | 0 | 2171 | 164 | 0 |
Chip 7
|
A
|
2 | 0 | 99.88 | 99.35 | 0.62 | 76.5 | 217.5 | 2 | 0/0 | 0 | 2283 | 169 | 0 |
Chip 8
|
A
|
0 | 0 | 99.85 | 99.31 | 0.82 | 68.7 | 196.9 | 0 | 0/0 | 0 | 2223 | 169 | 0 |
Chip 9
|
A
|
0 | 0 | 99.88 | 99.34 | 0.62 | 62.2 | 177.9 | 0 | 0/0 | 0 | 2181 | 163 | 0 |
Chip 10
|
A
|
1 | 0 | 99.89 | 99.34 | 0.74 | 73.1 | 205.8 | 0 | 0/0 | 0 | 2213 | 175 | 1 |
Chip 11
|
A
|
0 | 0 | 99.88 | 99.37 | 0.54 | 49.5 | 144.2 | 0 | 0/0 | 0 | 2126 | 169 | 0 |
Chip 12
|
A
|
0 | 0 | 99.85 | 99.31 | 1.51 | 52.2 | 149.8 | 0 | 0/0 | 0 | 2152 | 172 | 0 |
Chip 13
|
A
|
2 | 0 | 99.85 | 99.31 | 1.01 | 30.7 | 92.5 | 1 | 0/0 | 0 | 2021 | 183 | 0 |
Chip 14
|
A
|
0 | 0 | 99.83 | 99.00 | 0.55 | 30.5 | 91.3 | 0 | 0/0 | 0 | 1995 | 176 | 0 |
Chip 15
|
A
|
0 | 0 | 99.85 | 99.17 | 0.81 | 30.3 | 89.2 | 0 | 0/0 | 0 | 2004 | 173 | 0 |
TestCenter | Test Center | ETHZ | |
TestDate | Test Date | 2016-02-25 | |
TestTime | Test Time | 10:07 | |
TestDuration | Duration | 1:27:47 | |
pXar | pXar version | v2.7.5+30~g833b08f | |
DTB_FW | DTB FW | 4.6 |
nCriticals | # Criticals | 0 | |
nErrors | # Errors | 0 | |
nWarnings | # Warnings | 0 | |
channel_0_count | Channel 0 | 0 | |
channel_1_count | Channel 1 | 0 | |
channel_2_count | Channel 2 | 0 | |
channel_3_count | Channel 3 | 0 |
