Test Date: 2016-02-26 10:52
Analysis date: 2016-05-26 11:33
Analysis date: 2016-05-26 11:33
M2170 XRayHRQualification
Summary
| Module | Module | M2170 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 97 | |
| BumpBondingDefects | Bump Bonding Defects | 96 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

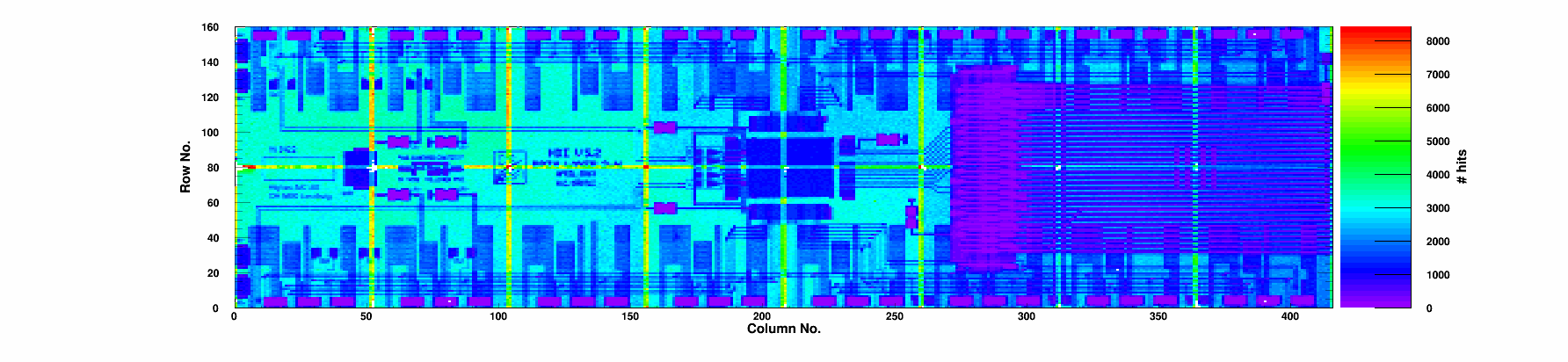

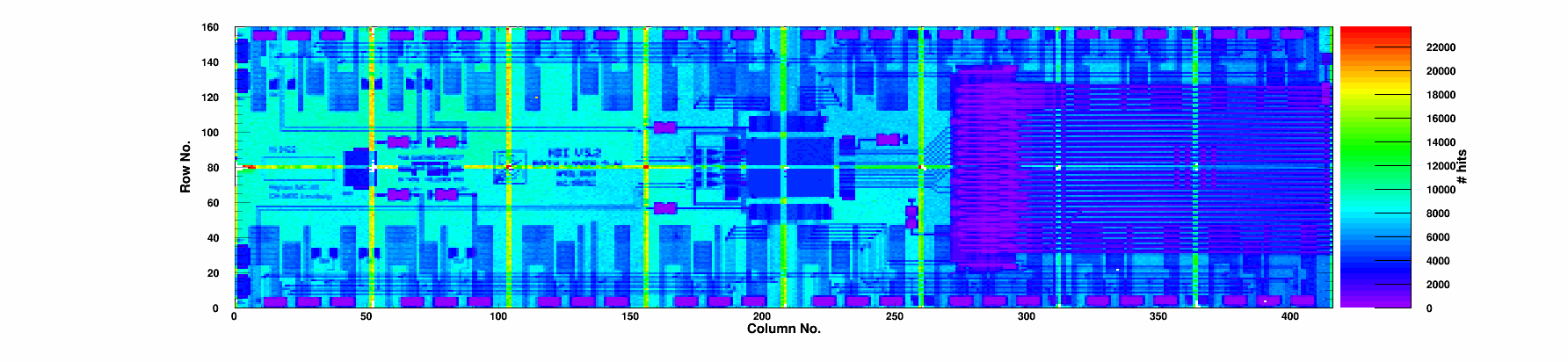

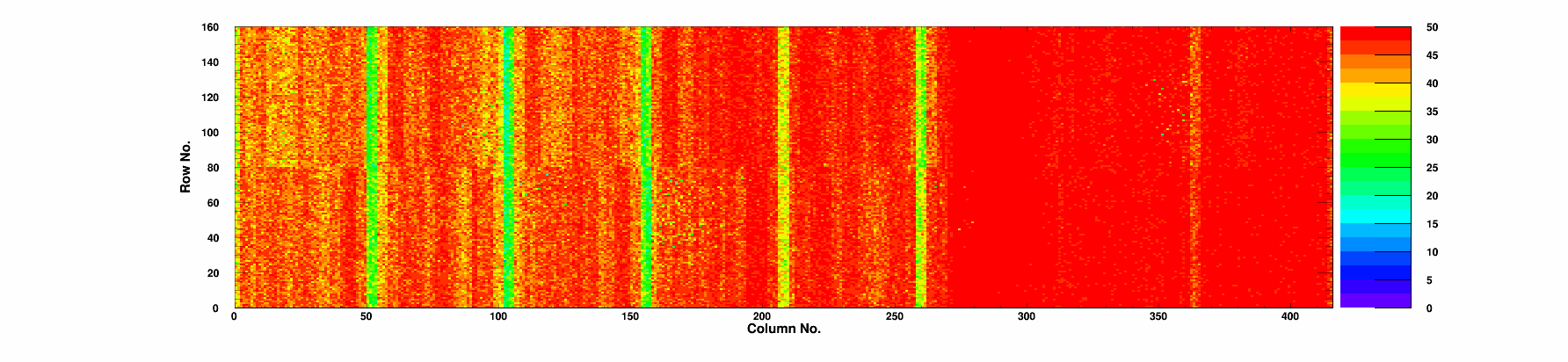

| Efficiency | Efficiency 50/120 | 99.86/99.28 | % |
| Noise | Mean Noise | 166 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
3 | 0 | 99.84 | 99.06 | 0.72 | 31.7 | 93.2 | 3 | 0/0 | 0 | 1998 | 173 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.83 | 99.25 | 1.55 | 35.1 | 103.8 | 1 | 0/0 | 0 | 2046 | 179 | 0 |
|
Chip 2
|
A
|
2 | 0 | 99.86 | 99.18 | 0.51 | 31.0 | 93.0 | 2 | 0/0 | 0 | 1998 | 175 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.87 | 99.26 | 0.64 | 50.0 | 144.4 | 1 | 0/0 | 0 | 2121 | 161 | 0 |
|
Chip 4
|
A
|
3 | 0 | 99.88 | 99.33 | 0.44 | 52.5 | 152.2 | 3 | 0/0 | 0 | 2142 | 159 | 0 |
|
Chip 5
|
A
|
9 | 0 | 99.86 | 99.34 | 1.02 | 68.5 | 192.3 | 8 | 0/0 | 0 | 2230 | 159 | 0 |
|
Chip 6
|
A
|
10 | 0 | 99.87 | 99.36 | 0.62 | 67.2 | 191.2 | 10 | 0/0 | 0 | 2217 | 164 | 0 |
|
Chip 7
|
A
|
15 | 0 | 99.87 | 99.26 | 0.98 | 67.7 | 192.3 | 15 | 0/0 | 0 | 2205 | 157 | 0 |
|
Chip 8
|
A
|
21 | 0 | 99.87 | 99.31 | 0.62 | 62.5 | 179.0 | 21 | 0/0 | 0 | 2198 | 159 | 0 |
|
Chip 9
|
A
|
9 | 0 | 99.86 | 99.19 | 0.96 | 61.6 | 176.2 | 9 | 0/0 | 0 | 2191 | 161 | 0 |
|
Chip 10
|
A
|
2 | 0 | 99.85 | 99.32 | 1.22 | 63.6 | 180.1 | 2 | 0/0 | 0 | 2195 | 160 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.26 | 1.62 | 57.5 | 164.9 | 0 | 0/0 | 0 | 2187 | 163 | 0 |
|
Chip 12
|
A
|
4 | 0 | 99.88 | 99.34 | 0.66 | 55.5 | 160.6 | 4 | 0/0 | 0 | 2145 | 174 | 0 |
|
Chip 13
|
A
|
6 | 0 | 99.84 | 99.37 | 0.67 | 27.9 | 84.1 | 6 | 0/0 | 0 | 2002 | 166 | 0 |
|
Chip 14
|
A
|
4 | 0 | 99.88 | 99.33 | 0.4 | 33.7 | 99.4 | 4 | 0/0 | 0 | 2040 | 175 | 0 |
|
Chip 15
|
A
|
7 | 0 | 99.88 | 99.30 | 0.6 | 31.8 | 92.2 | 7 | 0/0 | 0 | 2014 | 173 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-02-26 | |
| TestTime | Test Time | 10:52 | |
| TestDuration | Duration | 1:27:53 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
