Test Date: 2016-02-26 10:52
Analysis date: 2016-05-26 11:45
Analysis date: 2016-05-26 11:45
M2172 XRayHRQualification
Summary
| Module | Module | M2172 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 264 | |

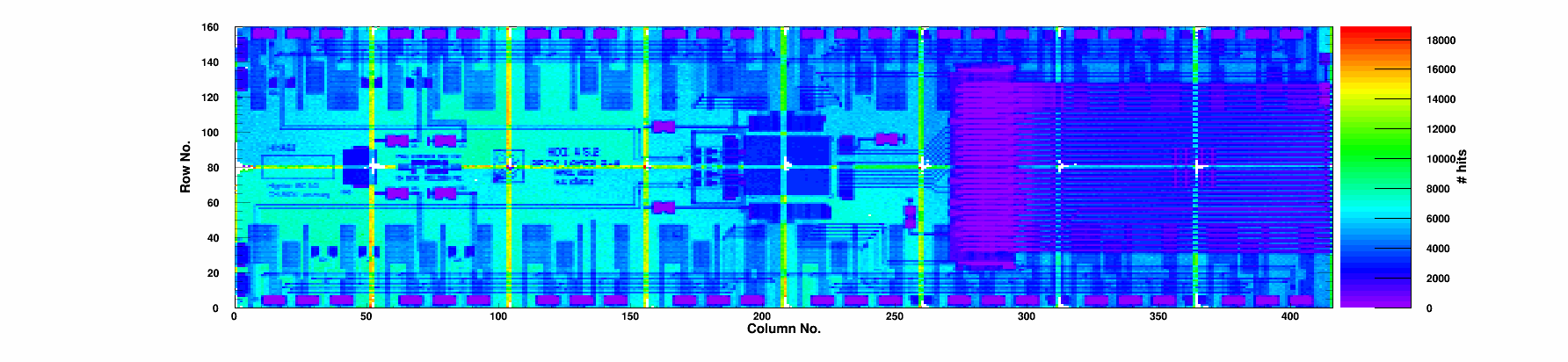

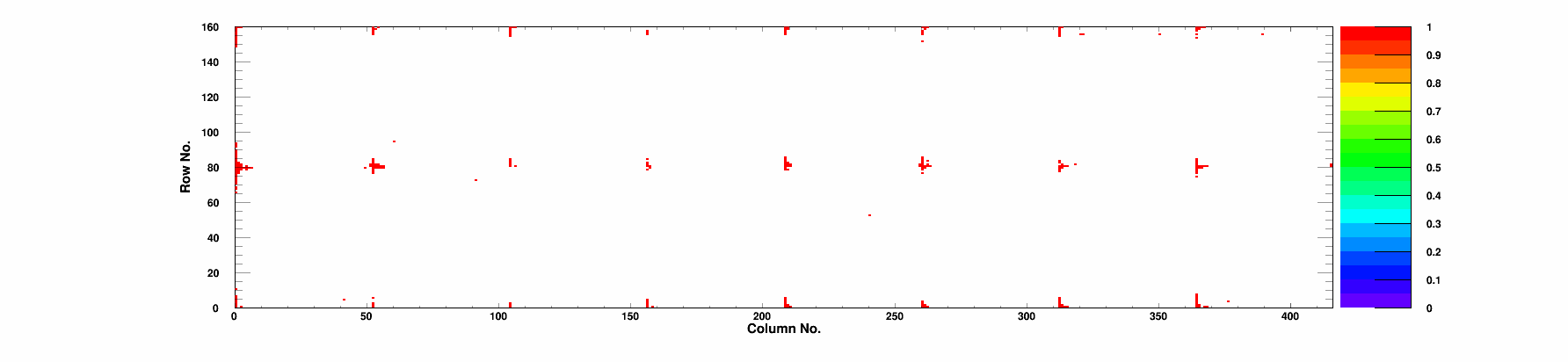

| BumpBondingDefects | Bump Bonding Defects | 262 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.30 | % |
| Noise | Mean Noise | 174 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
18 | 0 | 99.86 | 99.11 | 0.56 | 23.2 | 69.4 | 18 | 0/0 | 0 | 1925 | 189 | 0 |
|
Chip 1
|
A
|
15 | 0 | 99.87 | 99.34 | 0.33 | 22.6 | 68.6 | 15 | 0/0 | 0 | 1940 | 178 | 0 |
|
Chip 2
|
A
|
19 | 0 | 99.88 | 99.33 | 0.27 | 18.5 | 57.0 | 19 | 0/0 | 0 | 1901 | 162 | 0 |
|
Chip 3
|
A
|
20 | 0 | 99.88 | 99.40 | 0.46 | 38.1 | 111.3 | 20 | 0/0 | 0 | 2064 | 175 | 0 |
|
Chip 4
|
A
|
8 | 0 | 99.87 | 99.39 | 0.43 | 39.5 | 115.9 | 8 | 0/0 | 0 | 2065 | 177 | 0 |
|
Chip 5
|
A
|
14 | 0 | 99.88 | 99.45 | 0.75 | 53.1 | 152.7 | 14 | 0/0 | 0 | 2144 | 184 | 0 |
|
Chip 6
|
A
|
18 | 0 | 99.88 | 99.41 | 0.34 | 49.7 | 144.3 | 18 | 0/0 | 0 | 2127 | 180 | 0 |
|
Chip 7
|
A
|
37 | 0 | 99.88 | 99.37 | 0.56 | 43.2 | 125.5 | 36 | 0/0 | 0 | 2034 | 175 | 1 |
|
Chip 8
|
A
|
34 | 0 | 99.88 | 99.34 | 0.78 | 52.9 | 153.0 | 34 | 0/0 | 0 | 2157 | 172 | 0 |
|
Chip 9
|
A
|
13 | 0 | 99.90 | 99.39 | 0.37 | 49.6 | 142.2 | 13 | 0/0 | 0 | 2139 | 166 | 0 |
|
Chip 10
|
A
|
3 | 0 | 99.88 | 99.33 | 0.59 | 53.2 | 150.7 | 3 | 0/0 | 0 | 2136 | 172 | 0 |
|
Chip 11
|
A
|
7 | 0 | 99.88 | 99.32 | 0.72 | 42.9 | 124.9 | 7 | 0/0 | 0 | 2086 | 164 | 0 |
|
Chip 12
|
A
|
13 | 0 | 99.84 | 99.06 | 0.89 | 45.6 | 133.3 | 13 | 0/0 | 0 | 2105 | 181 | 0 |
|
Chip 13
|
A
|
11 | 0 | 99.85 | 99.24 | 0.62 | 22.5 | 68.4 | 11 | 0/0 | 0 | 1952 | 167 | 0 |
|
Chip 14
|
A
|
14 | 0 | 99.83 | 99.00 | 0.69 | 24.2 | 73.2 | 14 | 0/0 | 0 | 1954 | 165 | 0 |
|
Chip 15
|
A
|
20 | 0 | 99.88 | 99.27 | 0.36 | 25.5 | 75.7 | 19 | 0/0 | 0 | 1956 | 173 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-02-26 | |
| TestTime | Test Time | 10:52 | |
| TestDuration | Duration | 1:27:53 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
