Test Date: 2016-03-04 16:01
Analysis date: 2016-05-26 12:18
Analysis date: 2016-05-26 12:18
M2178 XRayHRQualification

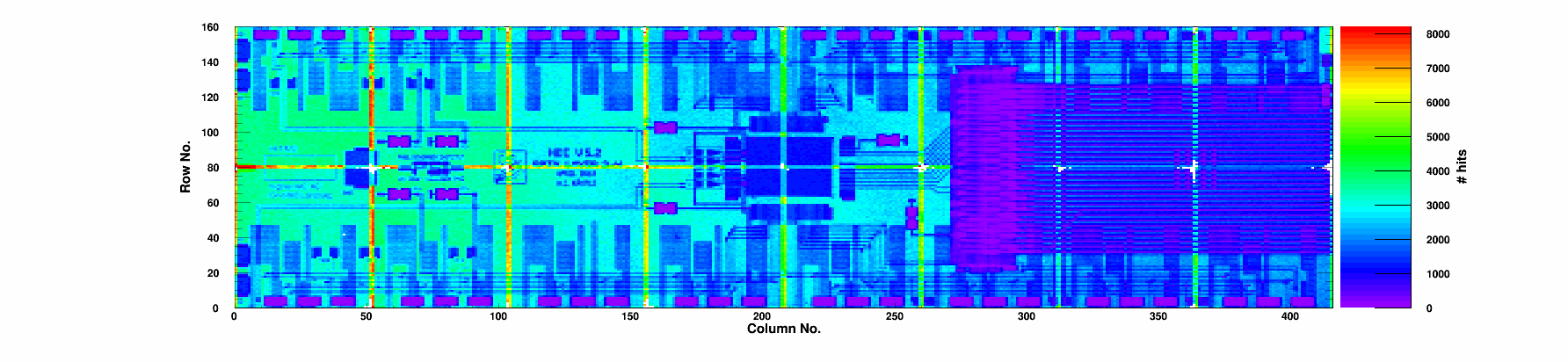

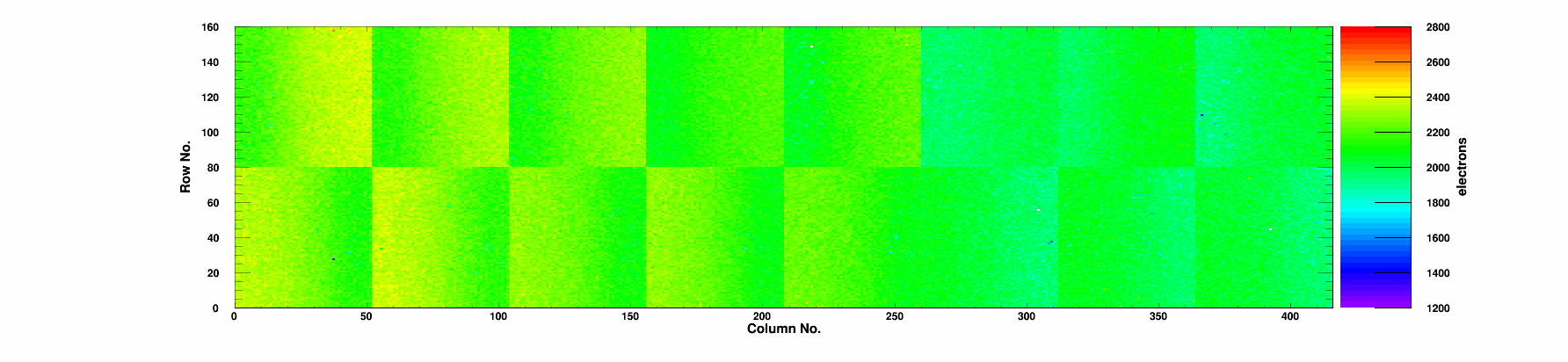

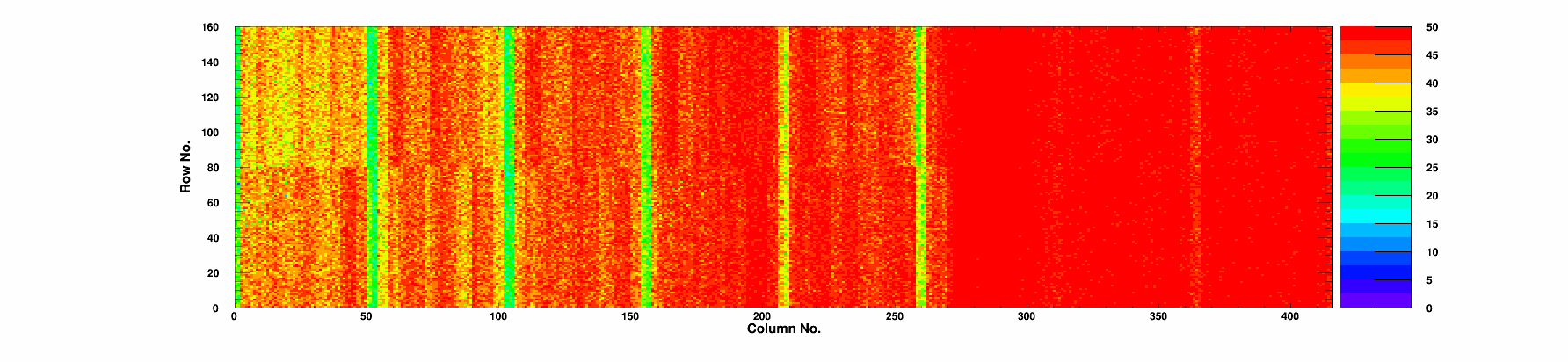

Summary
| Module | Module | M2178 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 161 | |
| BumpBondingDefects | Bump Bonding Defects | 160 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.33 | % |
| Noise | Mean Noise | 163 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
12 | 0 | 99.87 | 99.30 | 0.56 | 31.5 | 92.2 | 12 | 0/0 | 0 | 2003 | 162 | 0 |
|
Chip 1
|
A
|
7 | 0 | 99.87 | 99.38 | 0.38 | 33.1 | 97.6 | 7 | 0/0 | 0 | 2037 | 162 | 0 |
|
Chip 2
|
A
|
8 | 0 | 99.87 | 99.37 | 0.49 | 29.3 | 88.2 | 8 | 0/0 | 0 | 1990 | 155 | 0 |
|
Chip 3
|
A
|
3 | 0 | 99.86 | 99.07 | 0.54 | 51.6 | 147.9 | 3 | 0/0 | 0 | 2147 | 166 | 0 |
|
Chip 4
|
A
|
5 | 0 | 99.89 | 99.40 | 0.51 | 51.8 | 150.6 | 5 | 0/0 | 0 | 2148 | 153 | 0 |
|
Chip 5
|
A
|
10 | 0 | 99.89 | 99.37 | 0.49 | 64.8 | 182.7 | 10 | 0/0 | 0 | 2212 | 159 | 0 |
|
Chip 6
|
A
|
6 | 0 | 99.86 | 99.36 | 0.66 | 69.8 | 198.9 | 6 | 0/0 | 0 | 2244 | 161 | 0 |
|
Chip 7
|
A
|
5 | 0 | 99.85 | 99.28 | 0.43 | 77.8 | 221.2 | 5 | 0/0 | 0 | 2285 | 167 | 0 |
|
Chip 8
|
A
|
18 | 0 | 99.85 | 99.33 | 1.46 | 70.3 | 199.6 | 17 | 0/0 | 0 | 2248 | 165 | 0 |
|
Chip 9
|
A
|
18 | 0 | 99.88 | 99.31 | 0.68 | 71.0 | 202.3 | 18 | 0/0 | 0 | 2265 | 168 | 0 |
|
Chip 10
|
A
|
4 | 0 | 99.86 | 99.38 | 0.69 | 66.8 | 188.1 | 4 | 0/0 | 0 | 2206 | 154 | 0 |
|
Chip 11
|
A
|
8 | 0 | 99.88 | 99.41 | 0.57 | 56.4 | 161.8 | 8 | 0/0 | 0 | 2195 | 163 | 0 |
|
Chip 12
|
A
|
6 | 0 | 99.88 | 99.34 | 0.72 | 53.3 | 153.1 | 6 | 0/0 | 0 | 2168 | 167 | 0 |
|
Chip 13
|
A
|
5 | 0 | 99.85 | 99.22 | 0.77 | 29.6 | 88.6 | 5 | 0/0 | 0 | 2006 | 167 | 0 |
|
Chip 14
|
A
|
25 | 0 | 99.88 | 99.35 | 0.65 | 30.5 | 90.7 | 25 | 0/0 | 0 | 2018 | 165 | 0 |
|
Chip 15
|
A
|
21 | 0 | 99.89 | 99.41 | 0.46 | 31.8 | 92.8 | 21 | 0/0 | 0 | 2003 | 174 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-03-04 | |
| TestTime | Test Time | 16:01 | |
| TestDuration | Duration | 1:17:17 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 9 | |
| nWarnings | # Warnings | 5 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 5 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 1 | |
| message_readback_count | Readback start marker | 4 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
