Test Date: 2016-03-24 13:32
Analysis date: 2016-05-26 12:51
Analysis date: 2016-05-26 12:51
M2184 XRayHRQualification
Summary
| Module | Module | M2184 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 10/4/2 | |
| PixelDefects | Total Pixel Defects | 983 | |

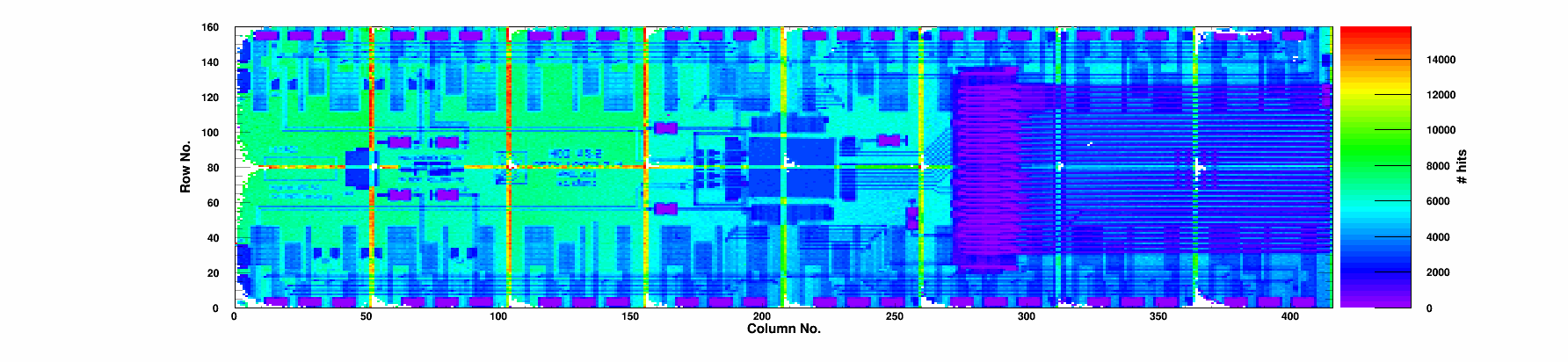

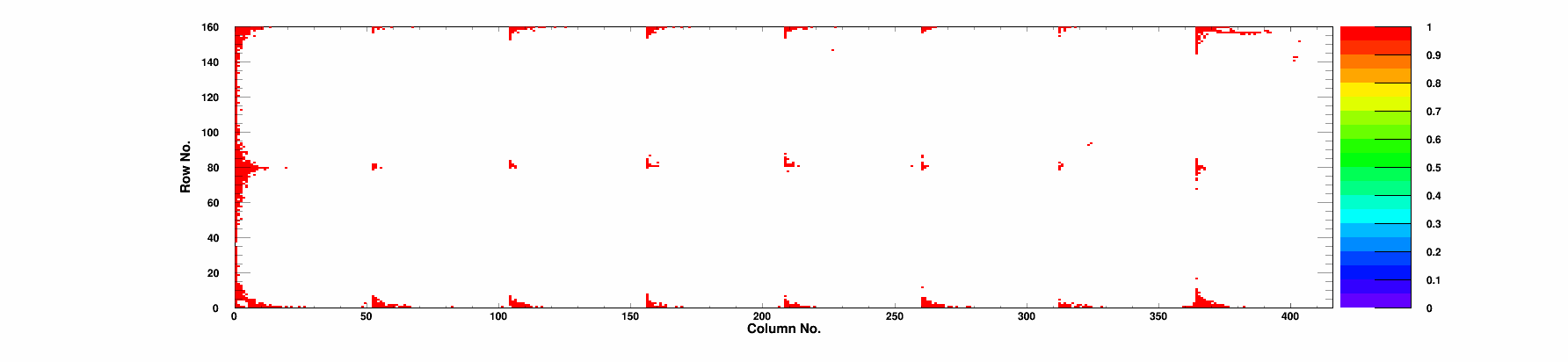

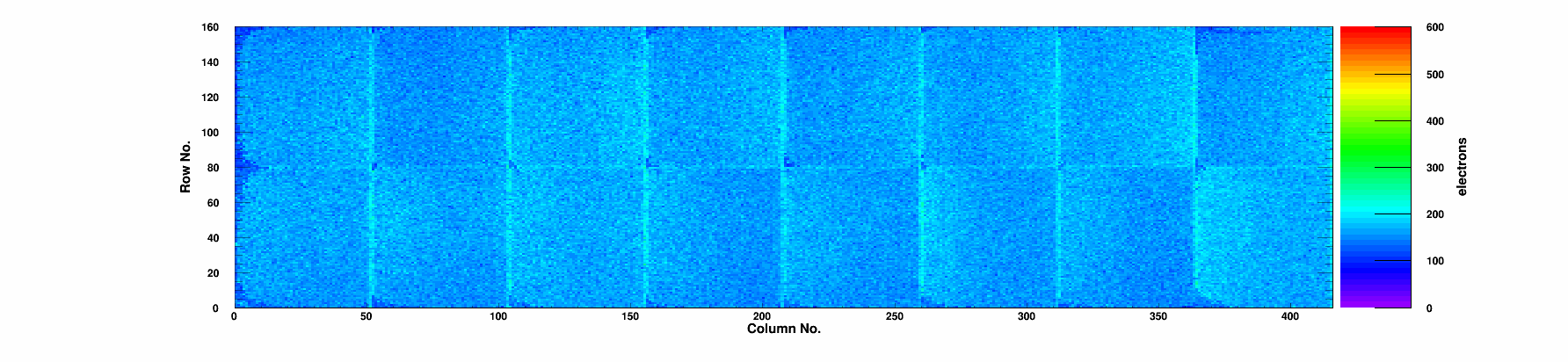

| BumpBondingDefects | Bump Bonding Defects | 983 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 1 | |
| Efficiency | Efficiency 50/120 | 99.88/99.33 | % |
| Noise | Mean Noise | 163 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
B
|
94 | 0 | 99.85 | 99.06 | 0.6 | 24.3 | 73.3 | 94 | 0/0 | 0 | 1951 | 163 | 0 |
|
Chip 1
|
A
|
18 | 0 | 99.88 | 99.34 | 0.39 | 26.6 | 80.1 | 18 | 0/0 | 0 | 1985 | 169 | 0 |
|
Chip 2
|
A
|
20 | 0 | 99.87 | 99.31 | 0.37 | 22.4 | 68.9 | 20 | 0/0 | 0 | 1950 | 164 | 0 |
|
Chip 3
|
B
|
43 | 0 | 99.88 | 99.38 | 0.42 | 40.2 | 117.9 | 43 | 0/0 | 0 | 2082 | 161 | 0 |
|
Chip 4
|
A
|
40 | 0 | 99.90 | 99.38 | 0.63 | 42.0 | 122.7 | 40 | 0/0 | 0 | 2090 | 164 | 0 |
|
Chip 5
|
A
|
41 | 0 | 99.88 | 99.38 | 1.03 | 55.5 | 158.0 | 41 | 0/0 | 0 | 2194 | 168 | 0 |
|
Chip 6
|
A
|
15 | 0 | 99.89 | 99.39 | 0.45 | 48.1 | 138.7 | 15 | 0/0 | 0 | 2121 | 156 | 0 |
|
Chip 7
|
C
|
202 | 0 | 99.88 | 99.42 | 0.39 | 50.4 | 145.0 | 202 | 0/0 | 1 | 2134 | 159 | 0 |
|
Chip 8
|
C
|
239 | 0 | 99.85 | 99.13 | 0.88 | 44.4 | 128.8 | 239 | 0/0 | 0 | 2099 | 161 | 0 |
|
Chip 9
|
B
|
44 | 0 | 99.86 | 99.36 | 0.91 | 44.2 | 128.5 | 44 | 0/0 | 0 | 2084 | 163 | 0 |
|
Chip 10
|
A
|
33 | 0 | 99.88 | 99.39 | 0.55 | 50.0 | 144.3 | 33 | 0/0 | 0 | 2135 | 168 | 0 |
|
Chip 11
|
A
|
28 | 0 | 99.89 | 99.39 | 0.39 | 36.0 | 107.2 | 28 | 0/0 | 0 | 2056 | 161 | 0 |
|
Chip 12
|
A
|
25 | 0 | 99.89 | 99.34 | 0.83 | 34.0 | 102.1 | 25 | 0/0 | 0 | 2021 | 162 | 0 |
|
Chip 13
|
A
|
40 | 0 | 99.88 | 99.37 | 0.19 | 20.1 | 62.2 | 40 | 0/0 | 0 | 1966 | 164 | 0 |
|
Chip 14
|
A
|
33 | 0 | 99.89 | 99.38 | 0.31 | 22.8 | 69.8 | 33 | 0/0 | 0 | 1965 | 160 | 0 |
|
Chip 15
|
B
|
68 | 0 | 99.88 | 99.28 | 0.49 | 21.9 | 66.8 | 68 | 0/0 | 0 | 1933 | 171 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-03-24 | |
| TestTime | Test Time | 13:32 | |
| TestDuration | Duration | 1:26:44 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
